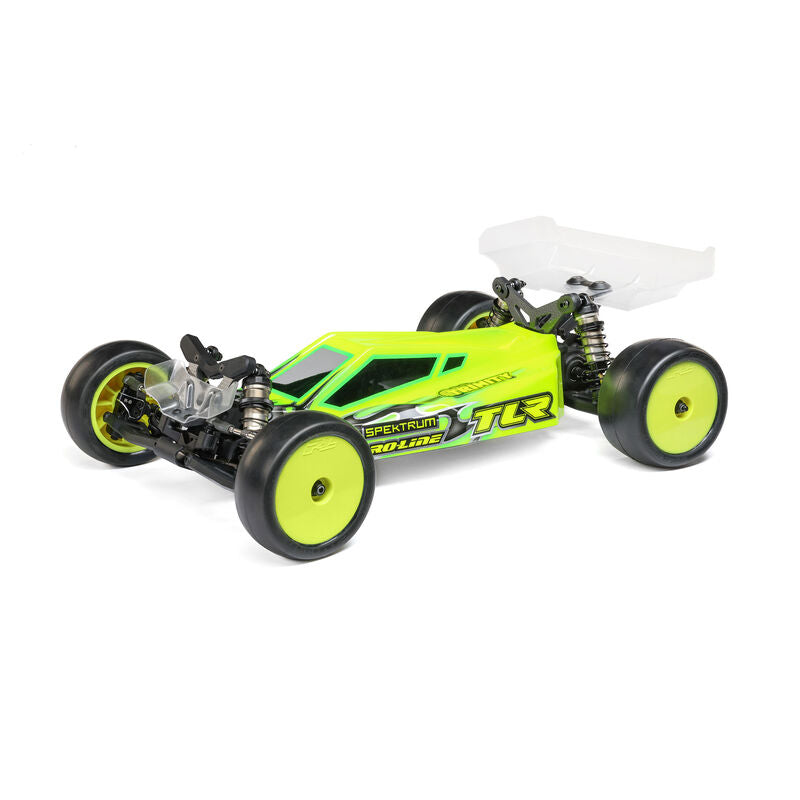

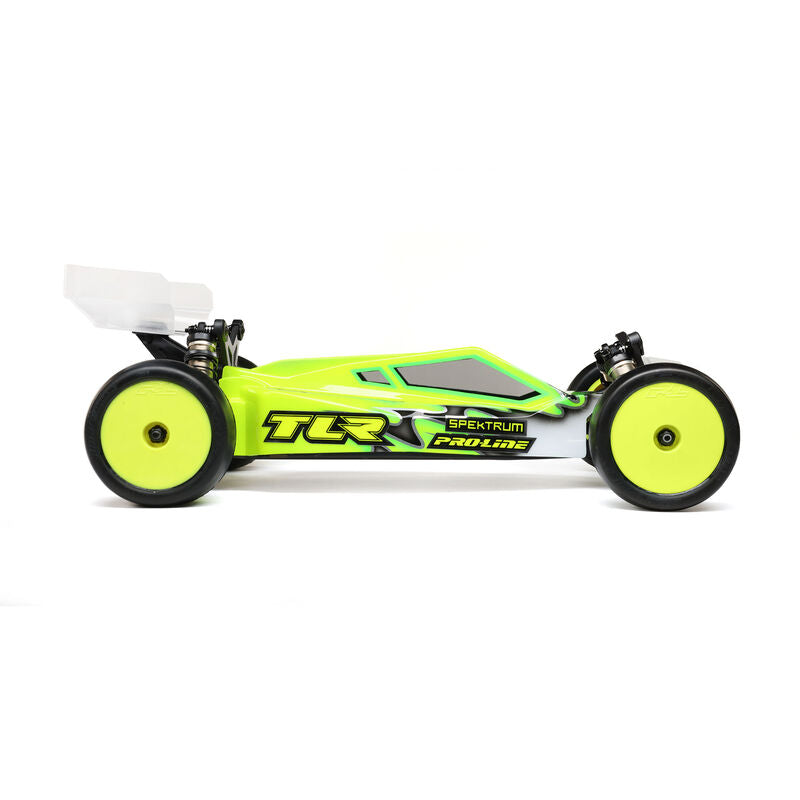

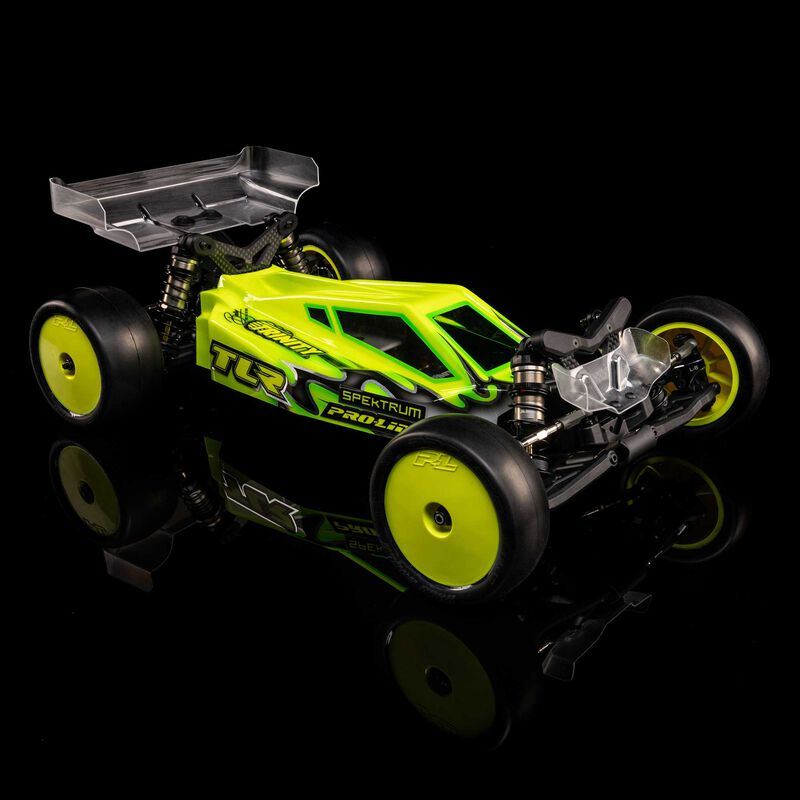

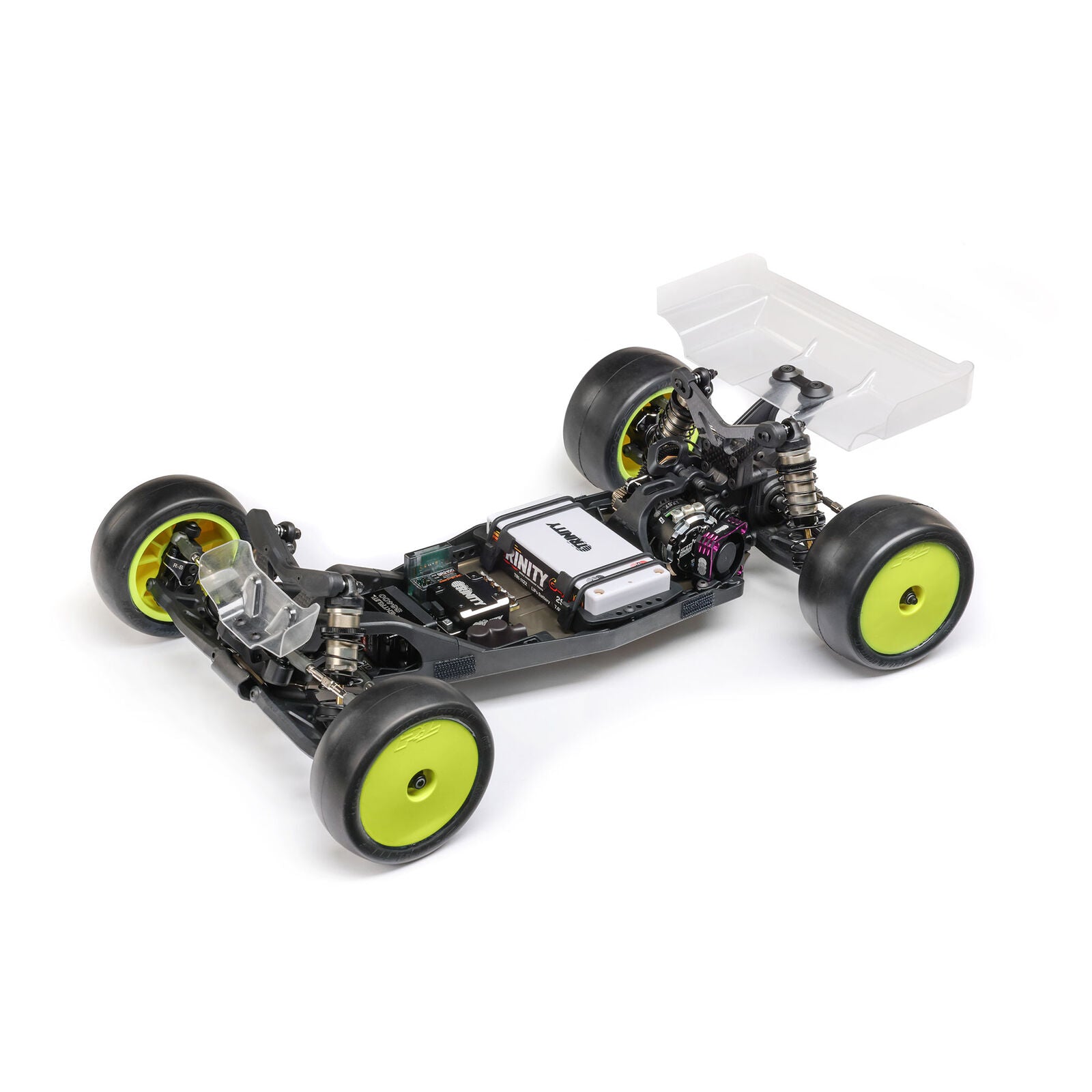

The Team Losi Racing 22X DC ushers in the next generation of the legendary 22 platform with a competition-focused 1/10 scale 2WD buggy engineered specifically for high-grip dirt and clay racing. With increased adjustability, refined suspension geometry, and easier maintenance, the 22X DC is designed to deliver the speed, consistency, and tuning range demanded by modern racing surfaces.

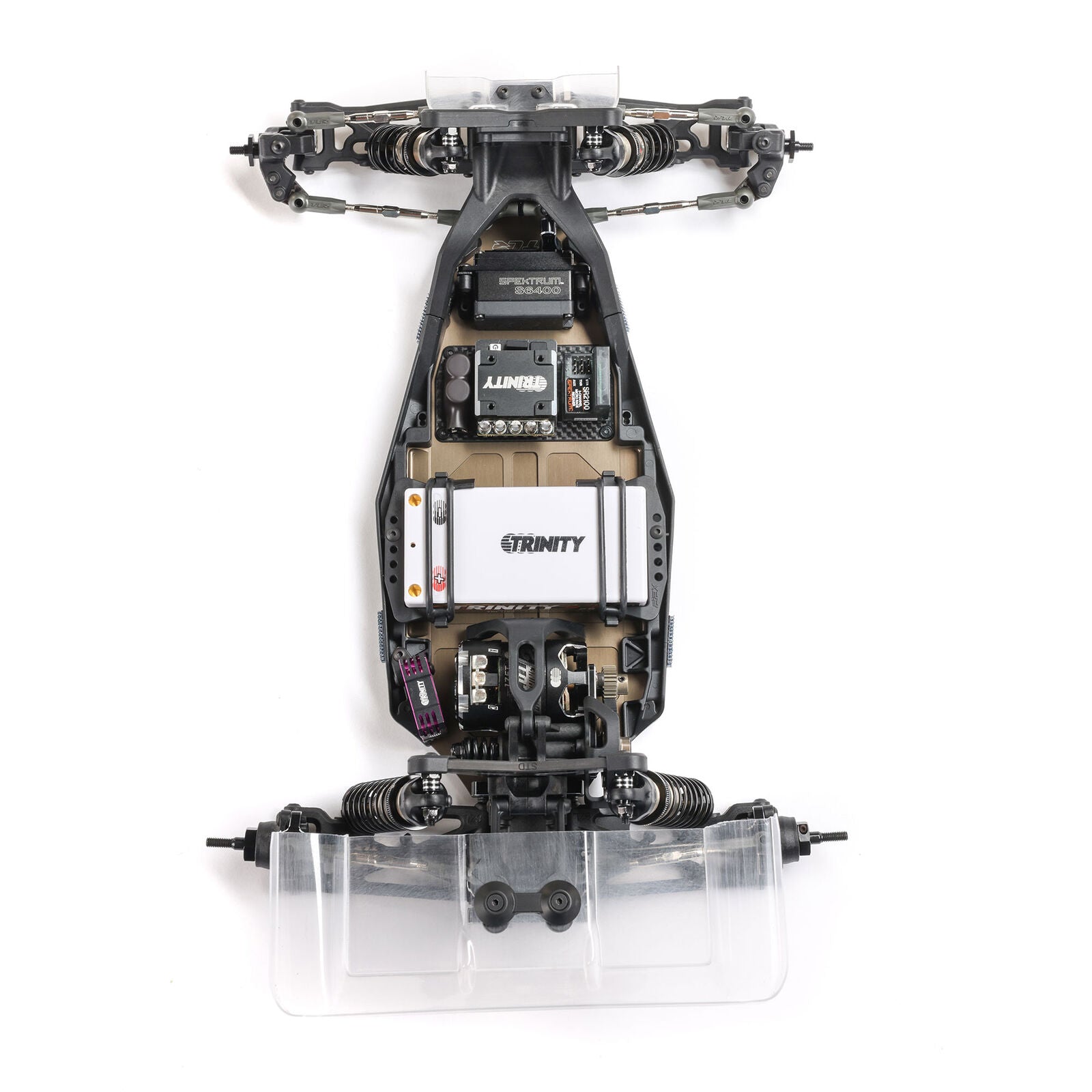

A lengthened 7075-T6 aluminum chassis, 13mm big-bore shocks, highly adjustable caster and kick-up geometry, and an updated easy-access laydown gearbox give racers a platform built to be tuned precisely to the track.
About the 22X DC

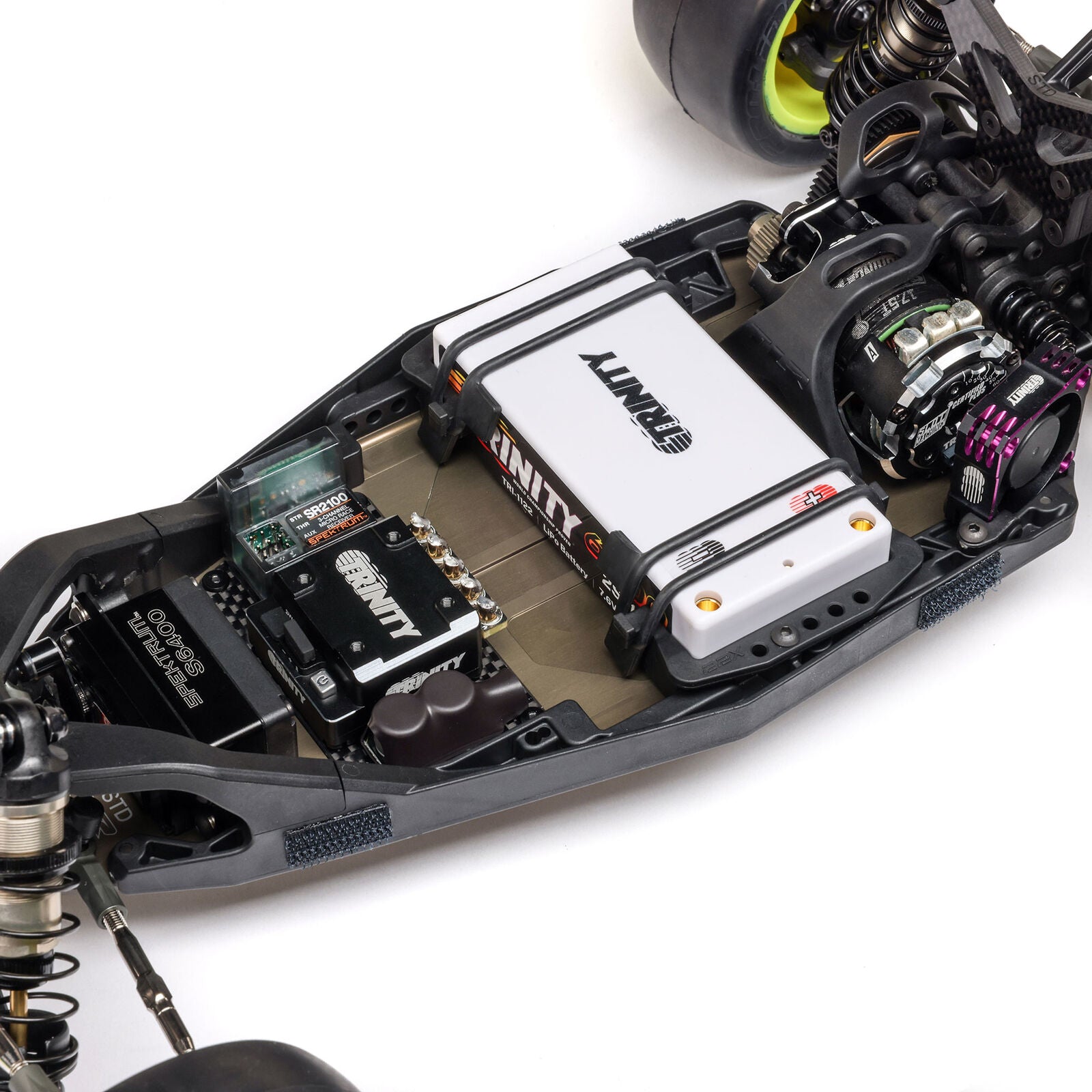

Competition-Optimized Chassis

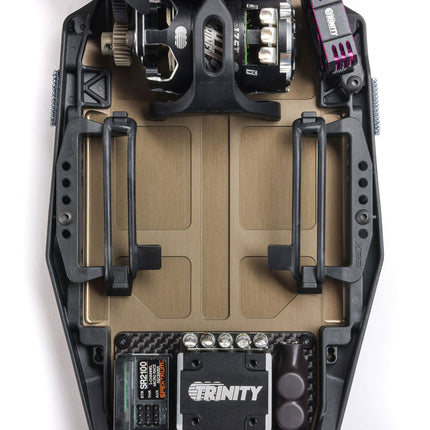

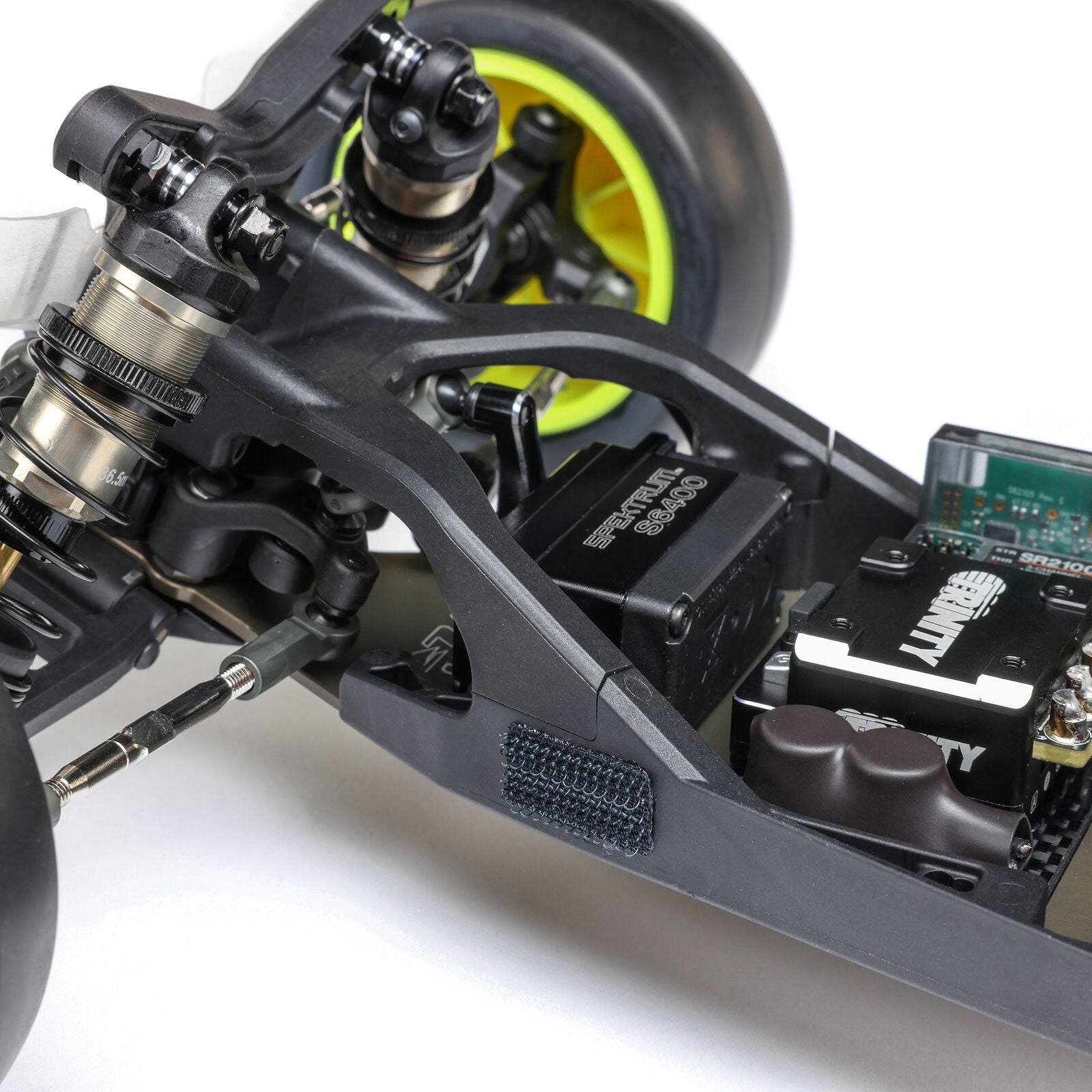

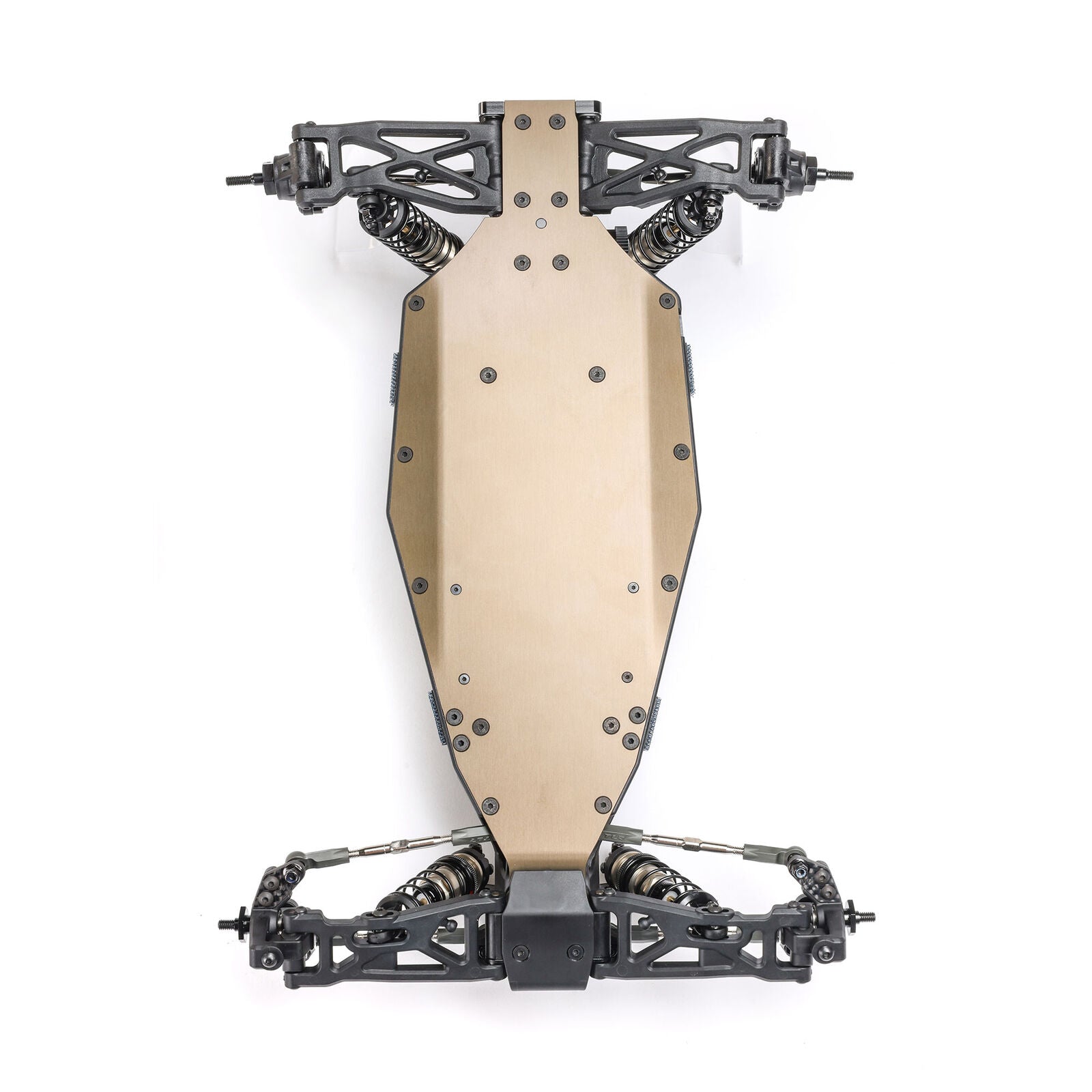

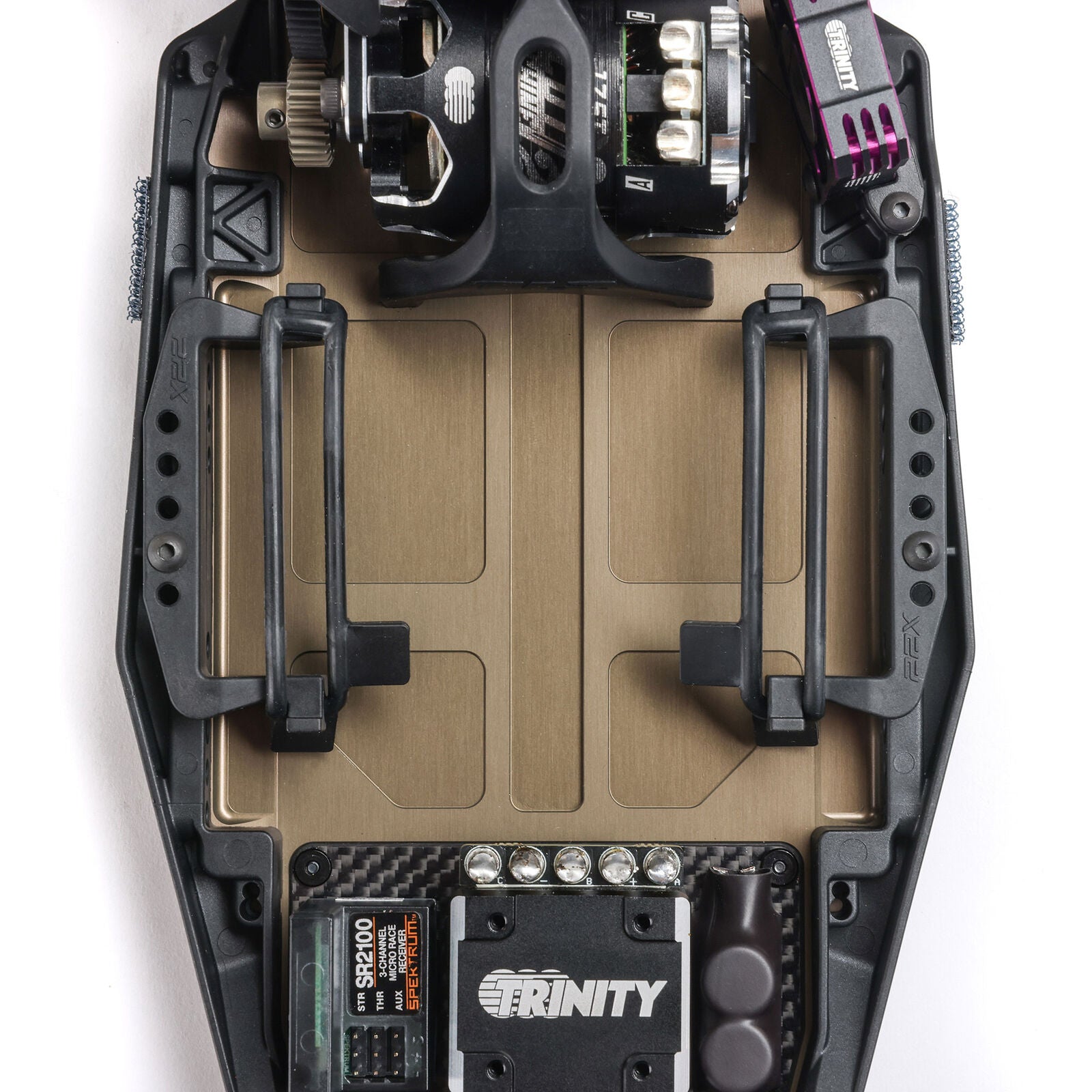

The 2mm machined 7075-T6 aluminum chassis is lengthened to provide increased consistency on modern tracks. It's hard-anodized for durability and precision milled to provide controlled chassis flex for optimal grip.

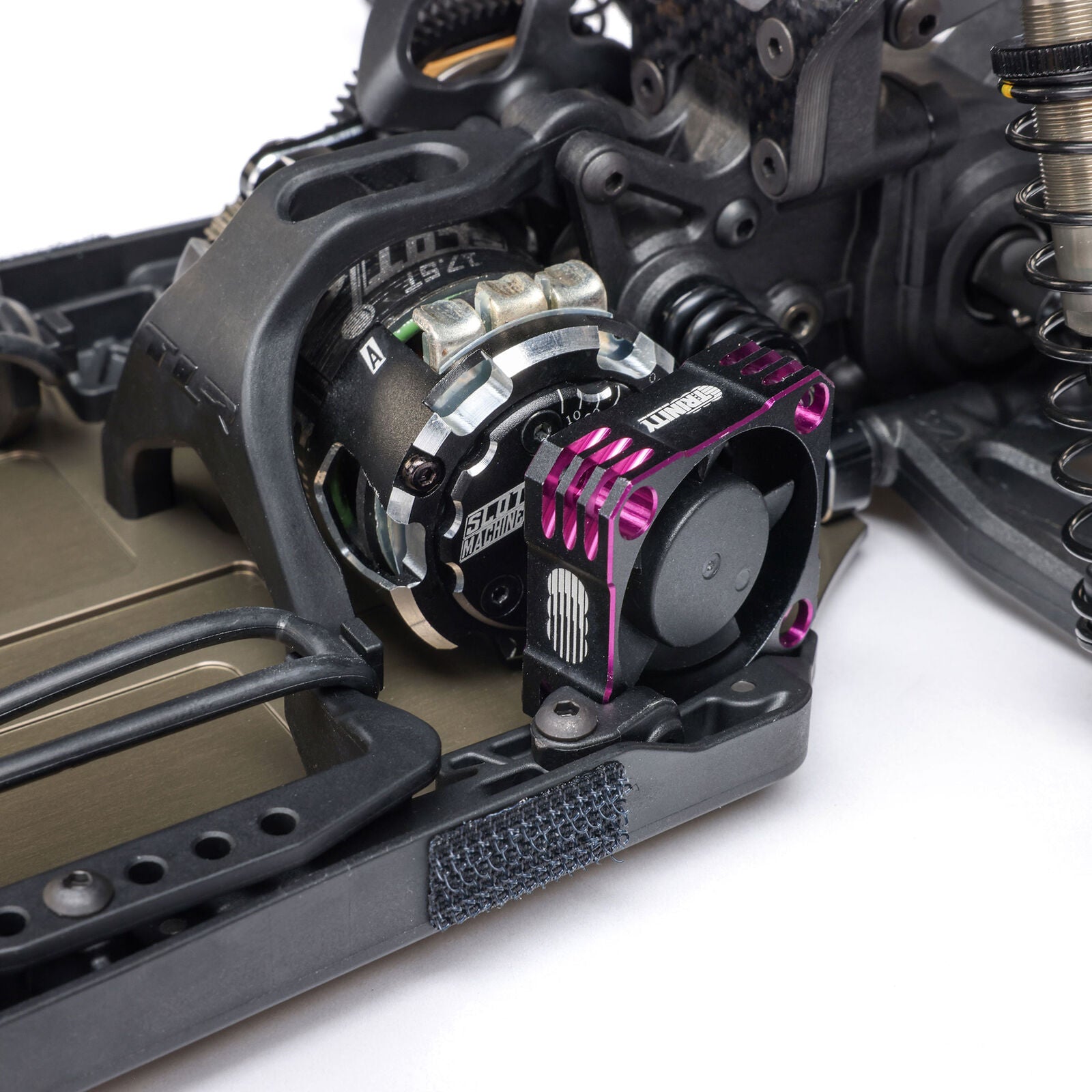

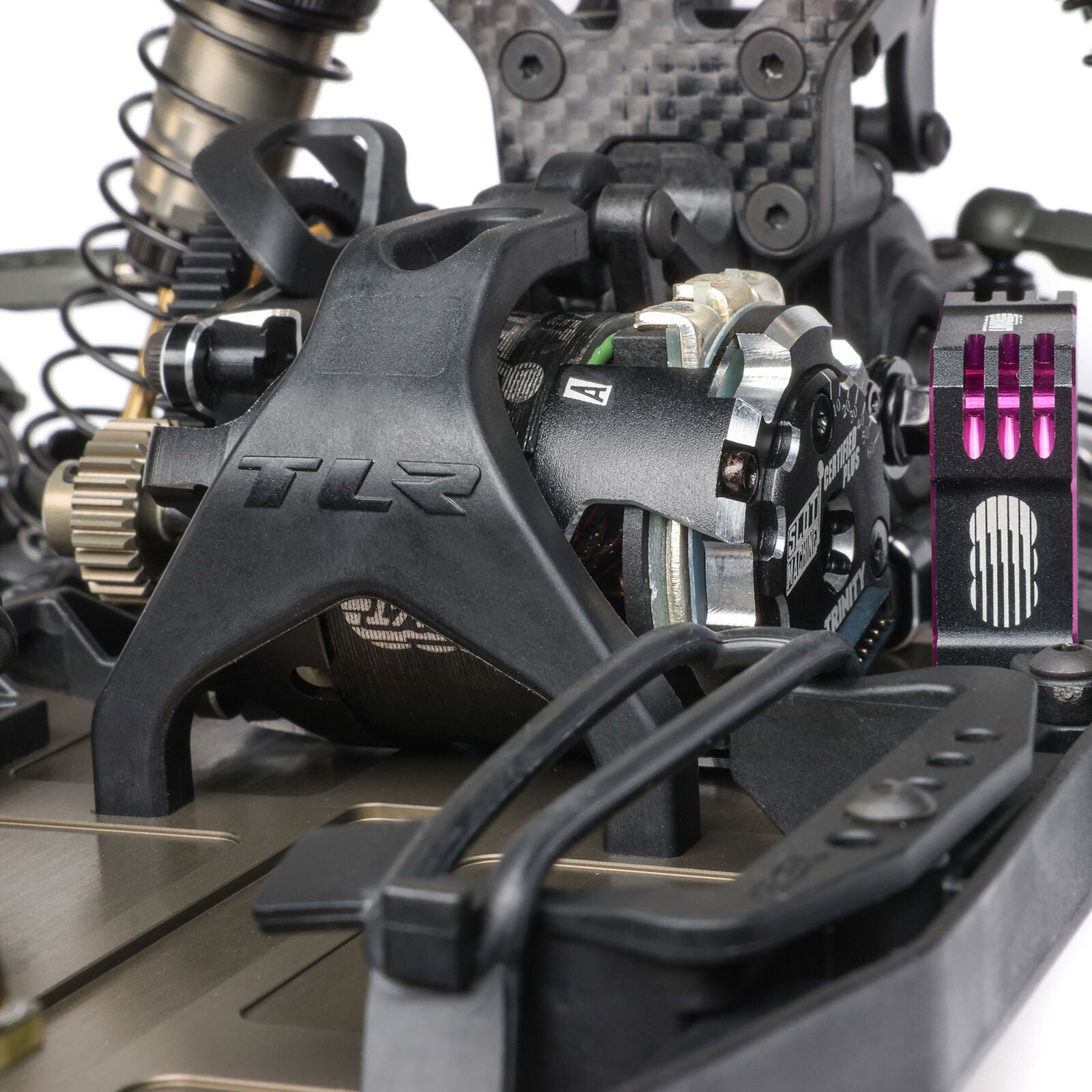

A molded 30x30mm motor fan mount is integrated into the mud guard, eliminating the need for an additional aluminum mount or double-sided tape when adding an optional cooling fan.

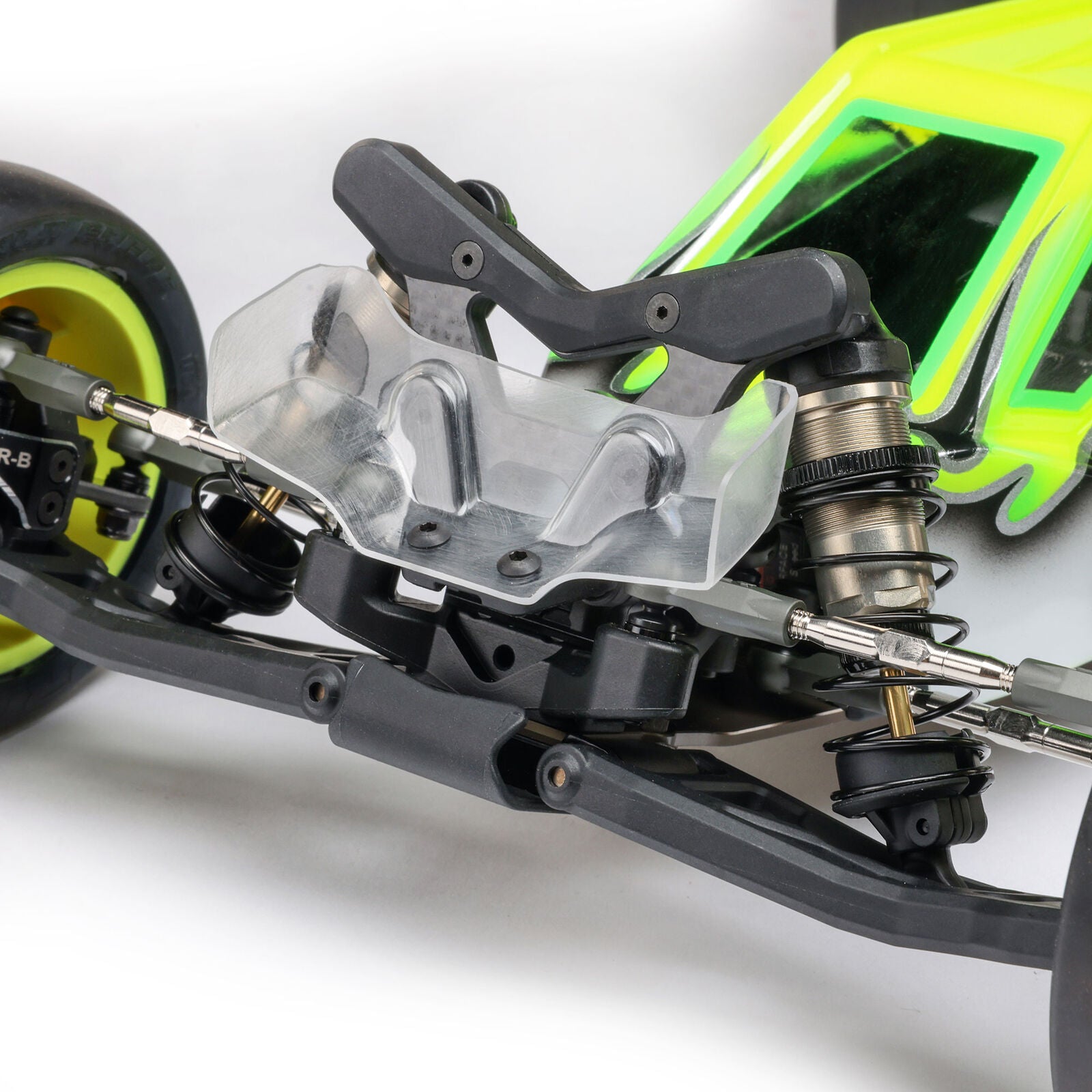

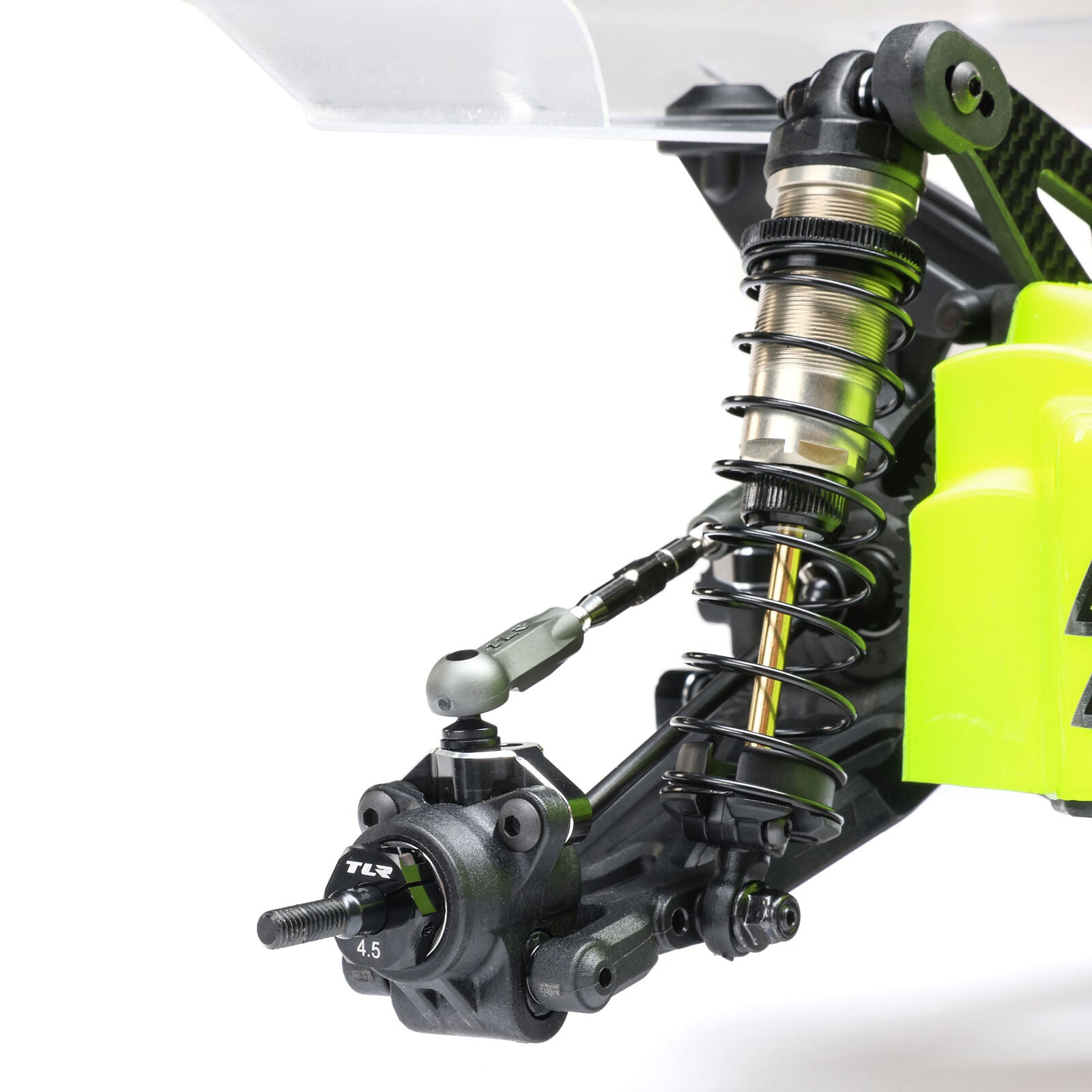

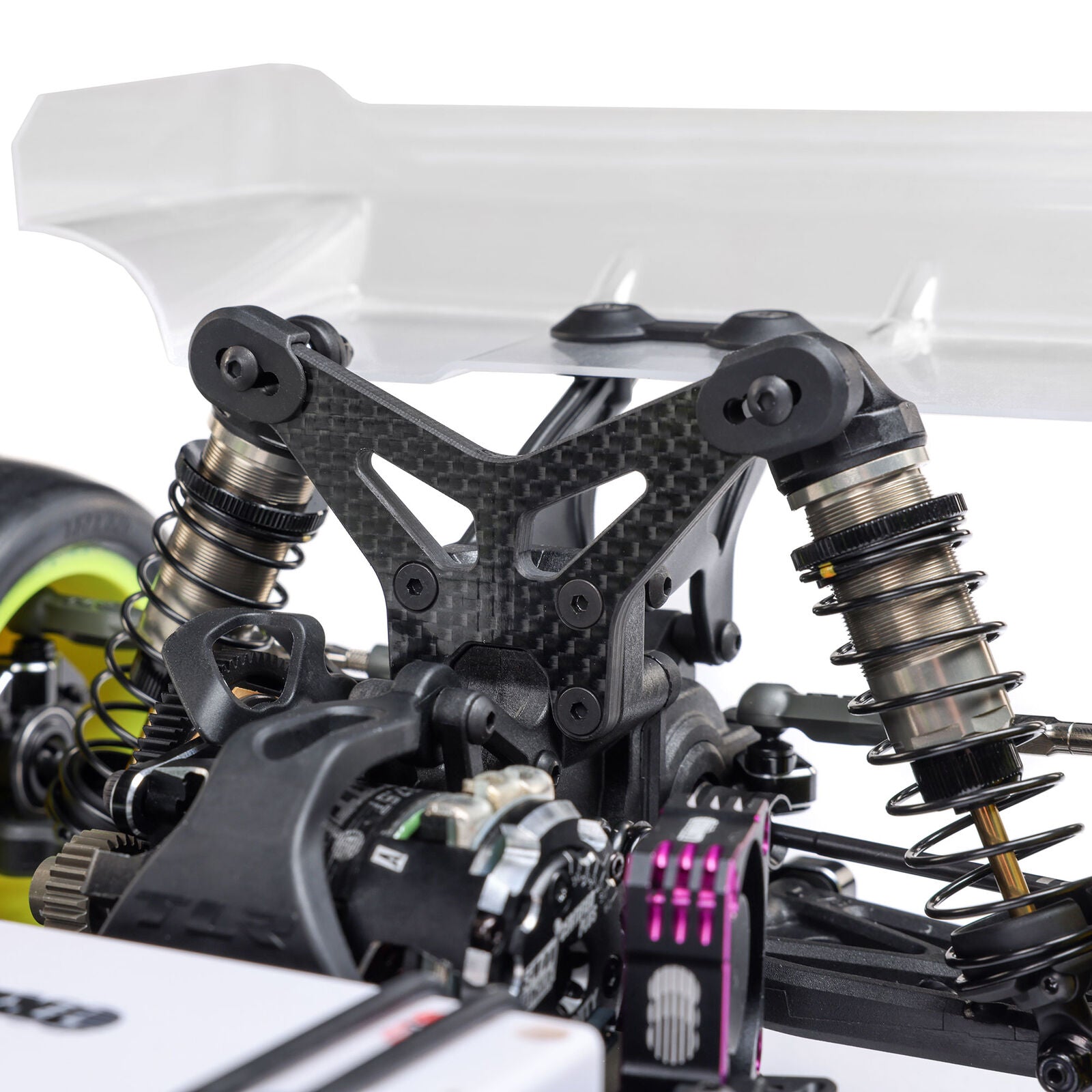

13mm Big Bore Suspension

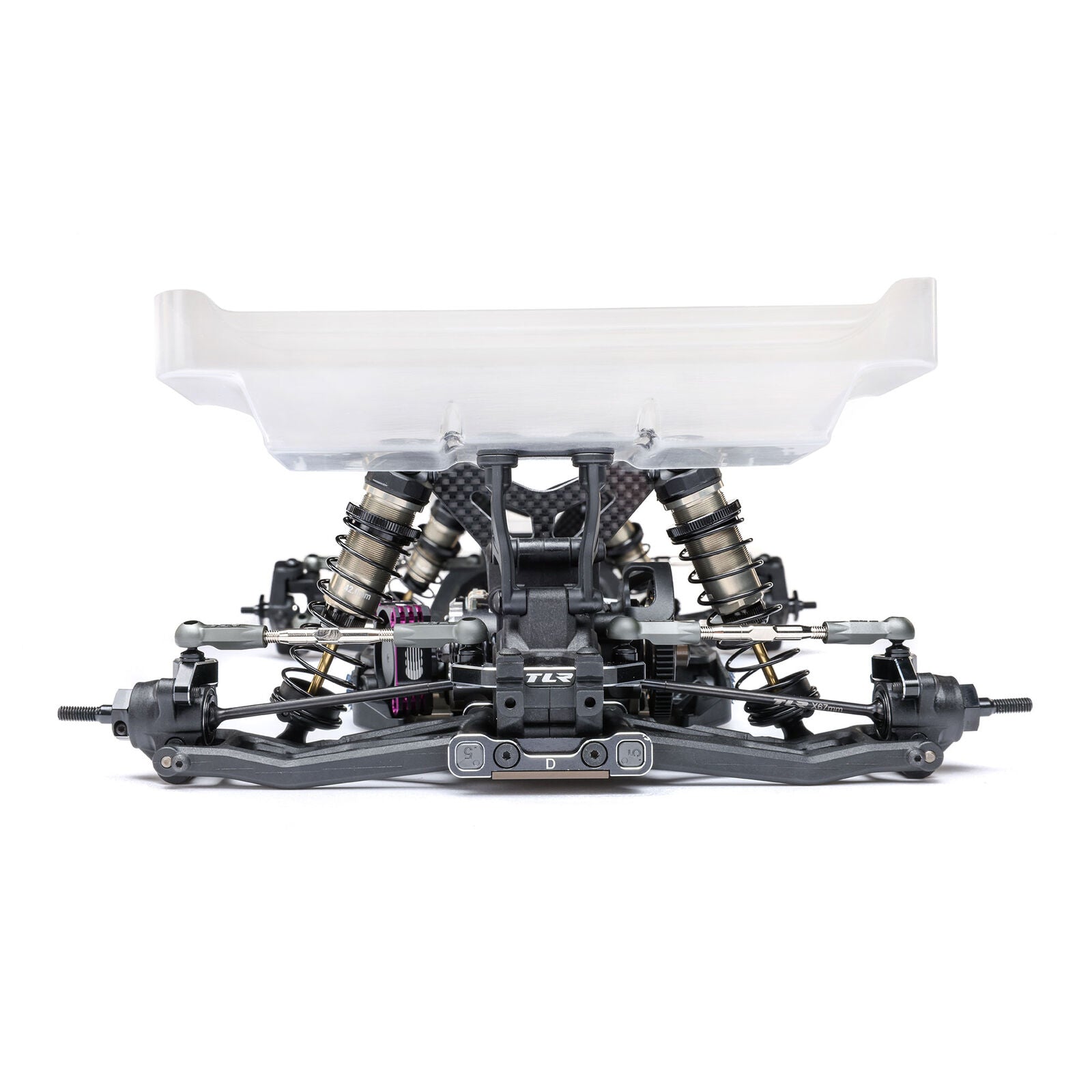

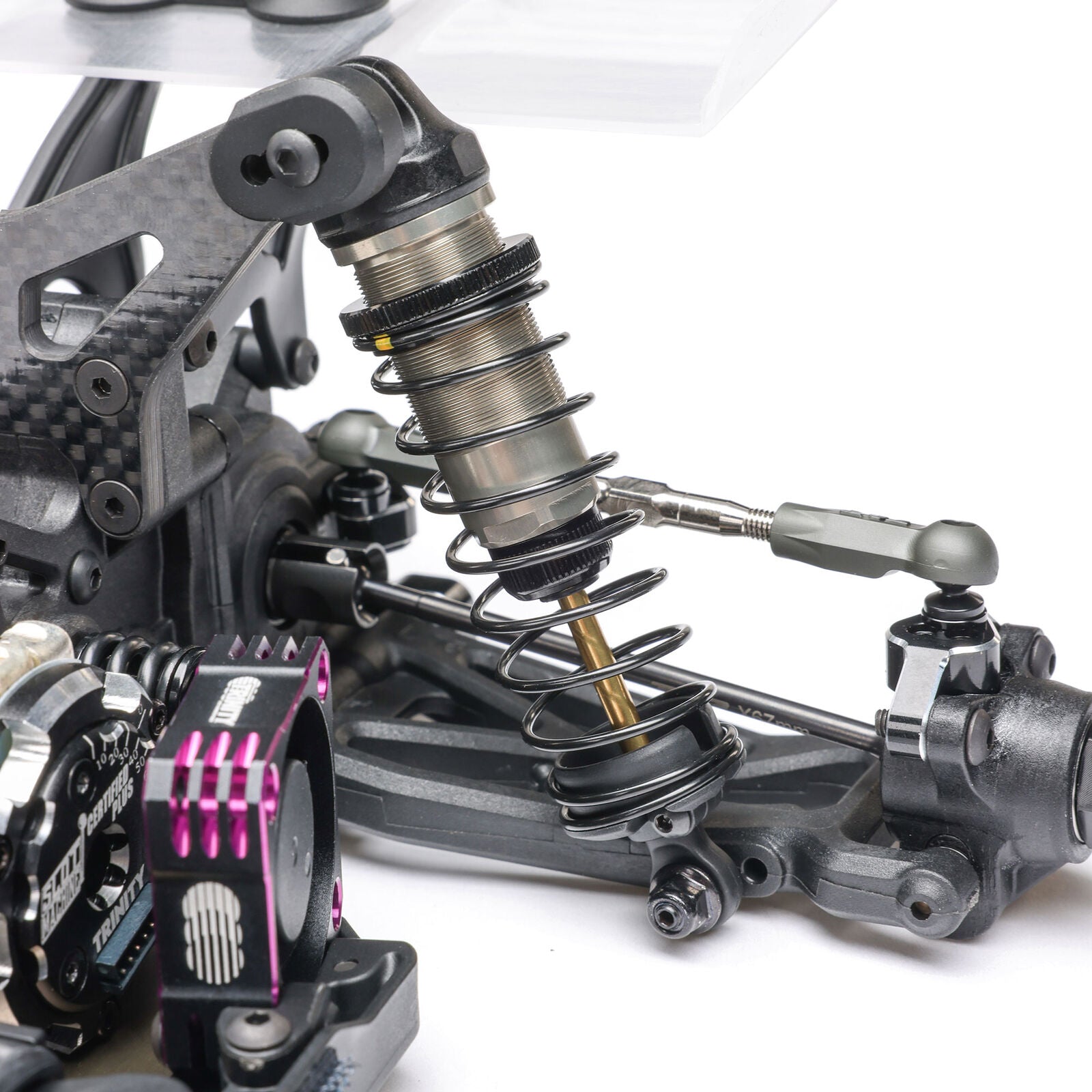

Larger 13mm big-bore shocks and 13mm springs provide the support needed for responsive handling and cornering. Updated G3 3mm shock internals are paired with proven seals for smooth, consistent suspension performance.
Caster can be adjusted from -5° to +5° in 2.5° increments, while adjustable kick-up from 20° to 25° provides even greater front-end tuning flexibility.

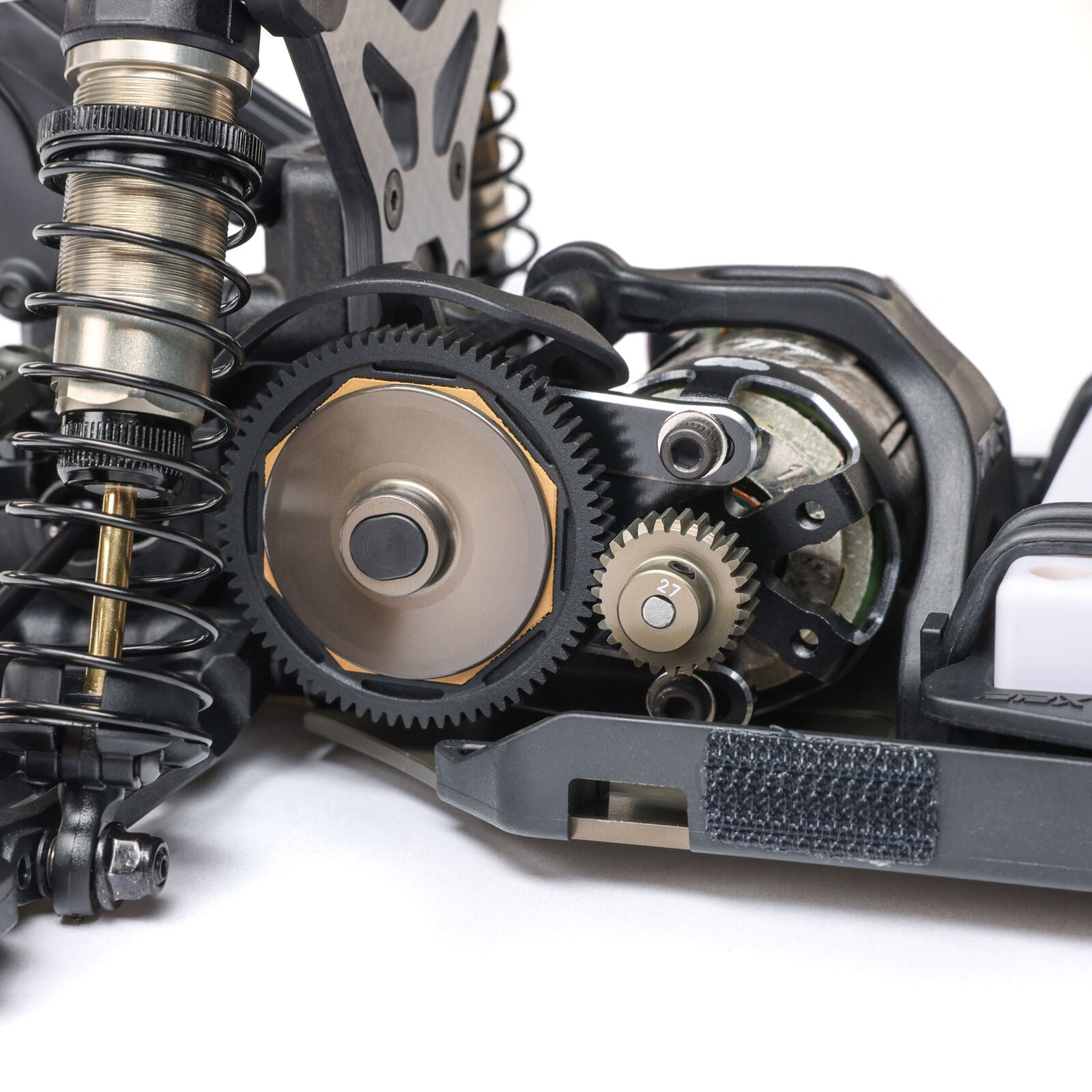

Easy-Access Laydown Gearbox
The updated laydown gearbox allows racers to access the differential and idler gear without completely disassembling the gearbox and surrounding suspension components.
Multiple differential height positions provide another valuable tuning option, with the available range optimized around today's higher-grip racing surfaces.

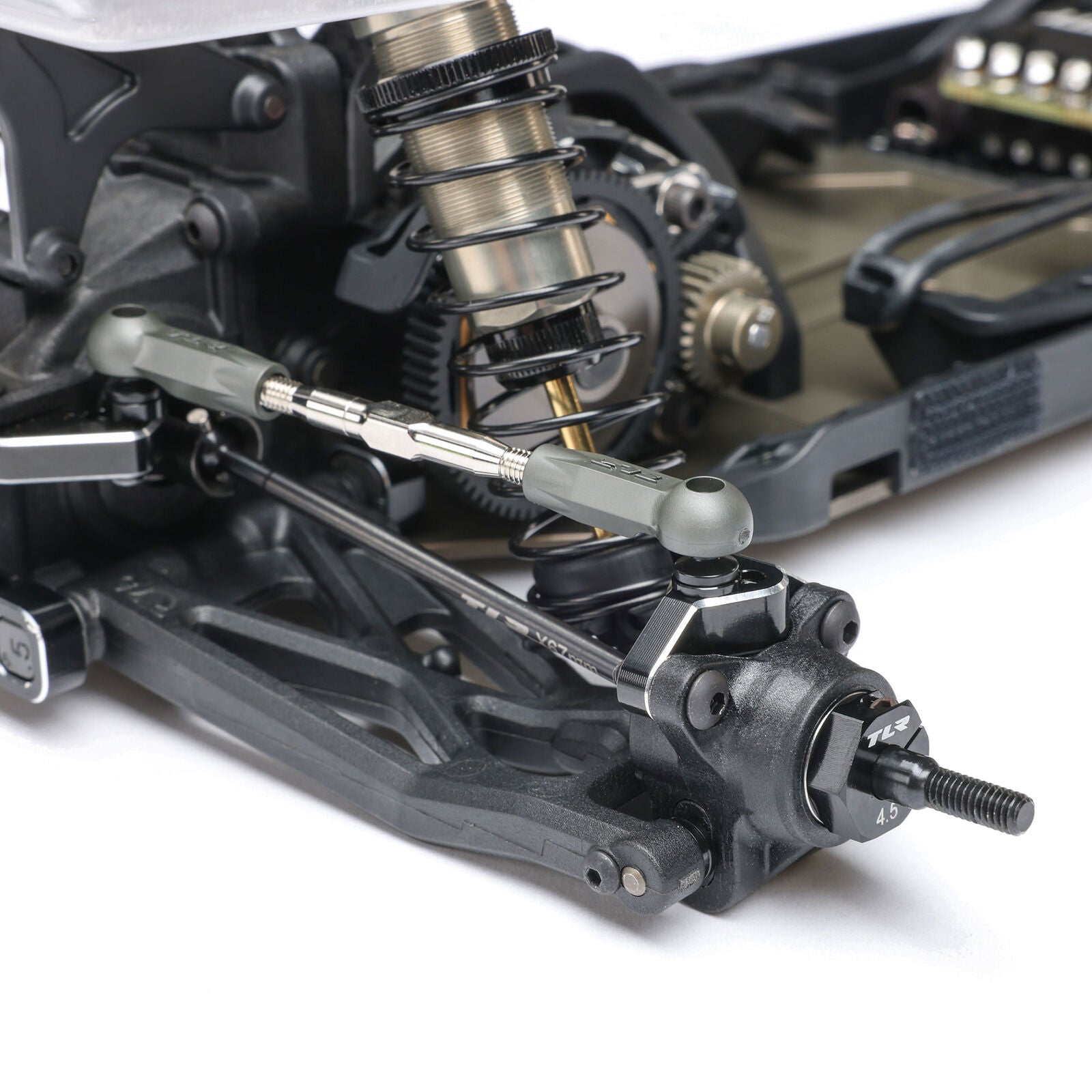

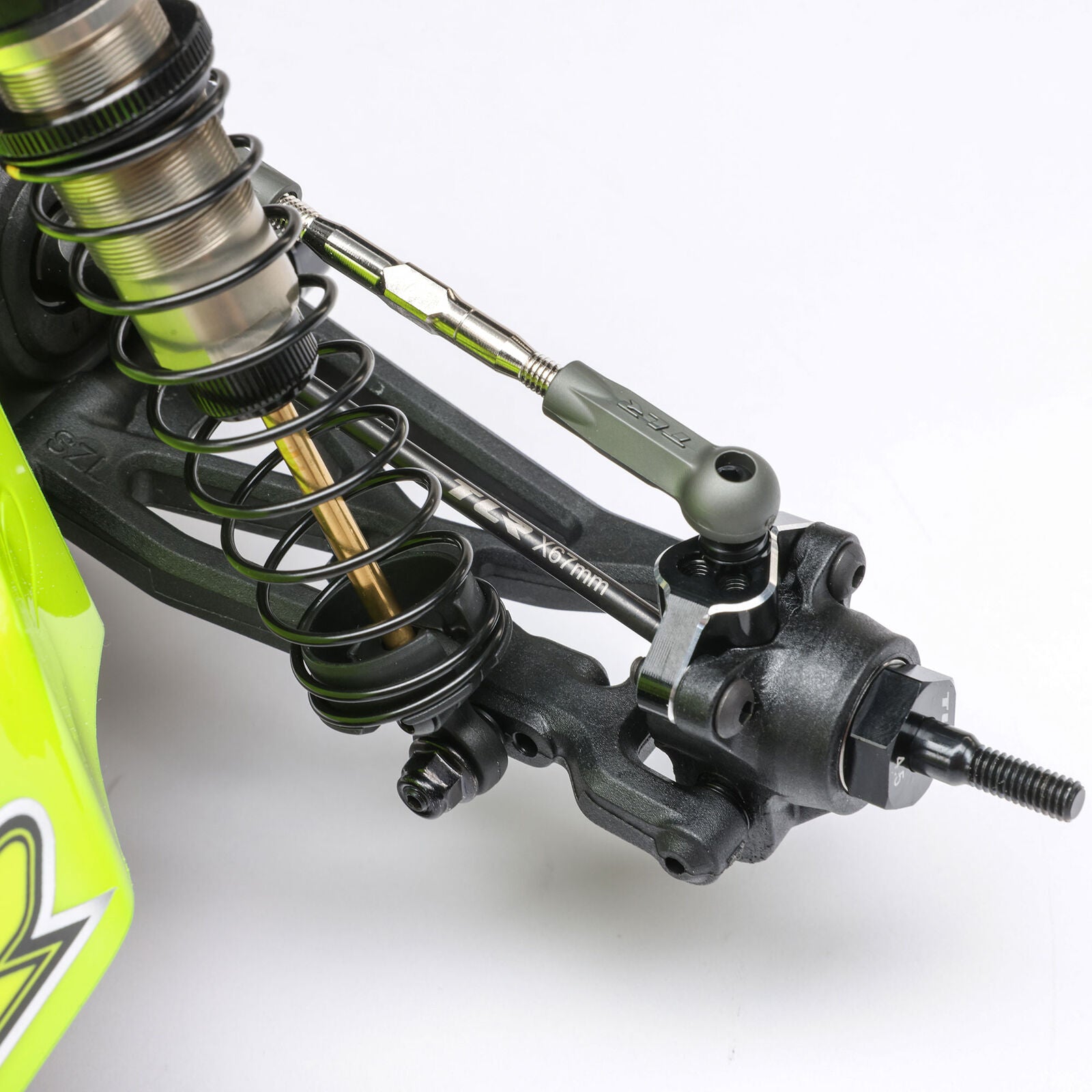

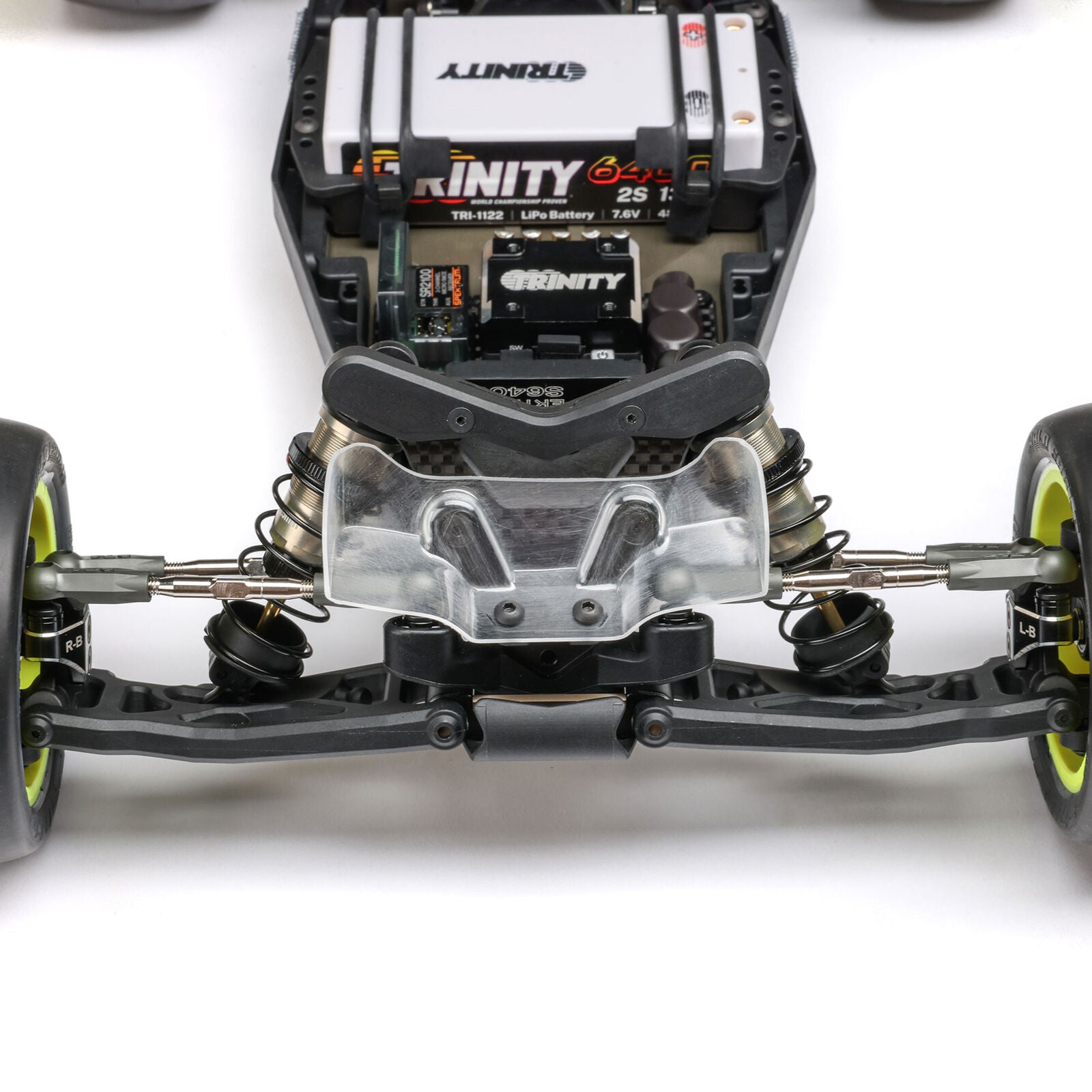

Refined Steering & Geometry
Multiple steering offsets and refined steering geometry allow drivers to tune the buggy's steering feel for different surfaces and driving styles. Industry-standard offset front wheels also provide greater flexibility when selecting race wheels and tires.
Features
✔ Competition-focused 1/10 scale 2WD buggy
✔ Optimized for high-grip dirt and clay racing
✔ Hard-anodized 2mm machined 7075-T6 aluminum chassis
✔ Lengthened chassis design for increased consistency
✔ Precision-milled chassis for controlled flex
✔ Updated laydown gearbox
✔ Easy-access differential and idler gear
✔ Multiple differential height positions
✔ 13mm big-bore shocks
✔ 13mm shock springs
✔ Updated G3 3mm shock internals
✔ Adjustable caster from -5° to +5° in 2.5° increments
✔ Adjustable kick-up from 20° to 25° in 2.5° increments
✔ Multiple steering offset options
✔ Refined steering geometry

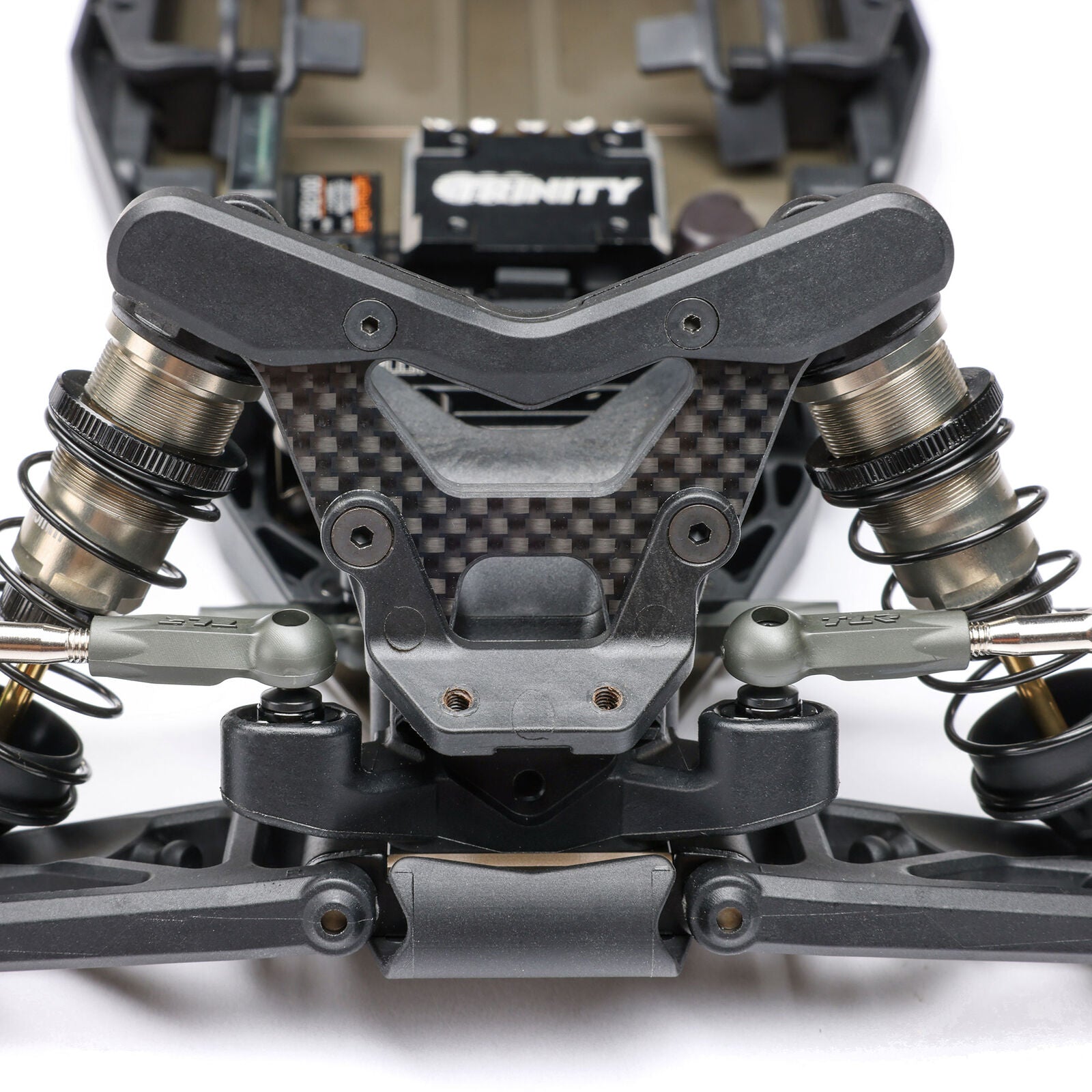

✔ 4mm woven carbon fiber front and rear shock towers
✔ Industry-standard offset front wheels
✔ Integrated 30x30mm motor fan mount

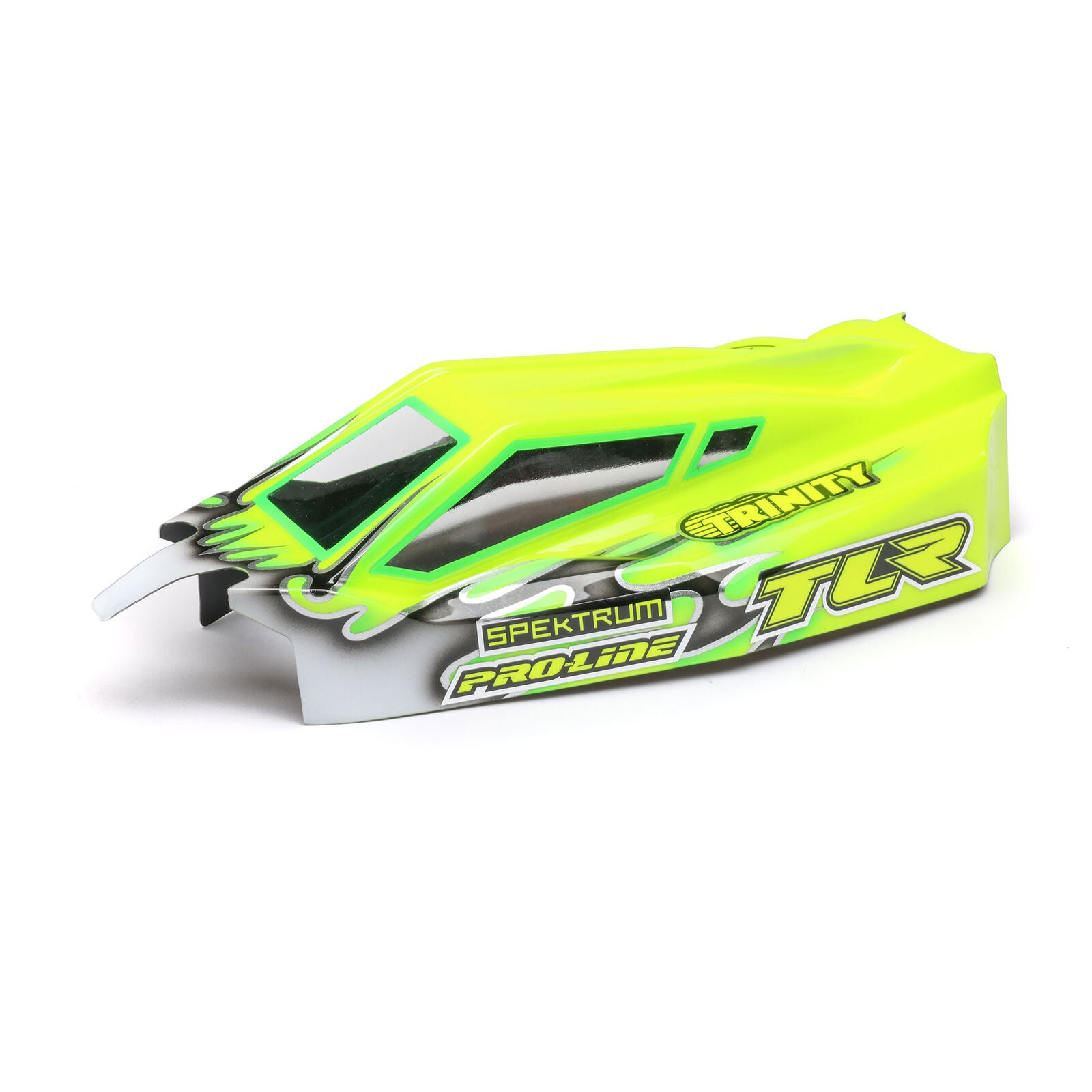

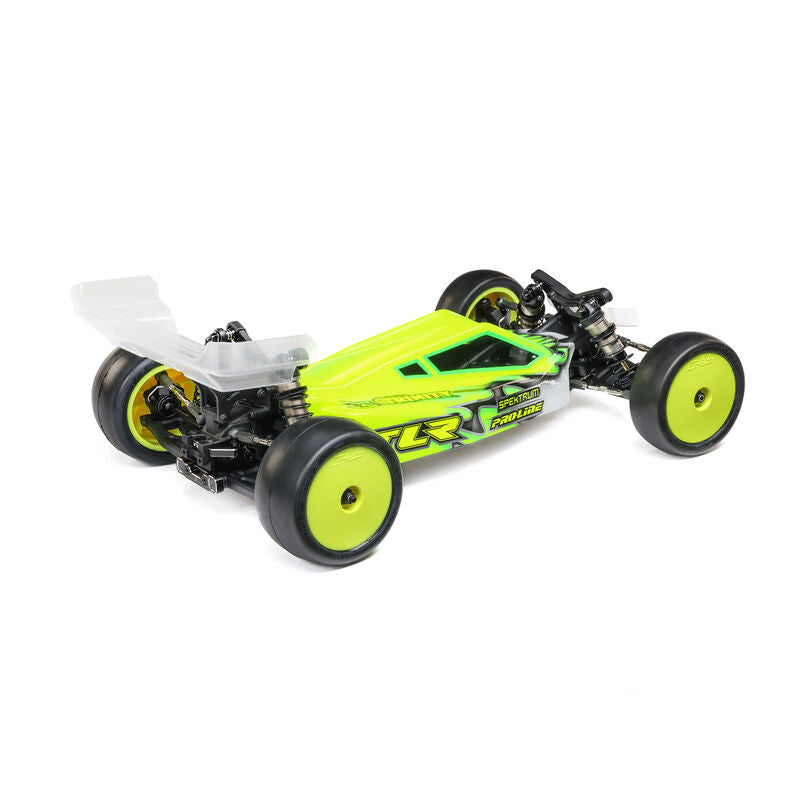

✔ Pro-Line Sector 22X clear body included

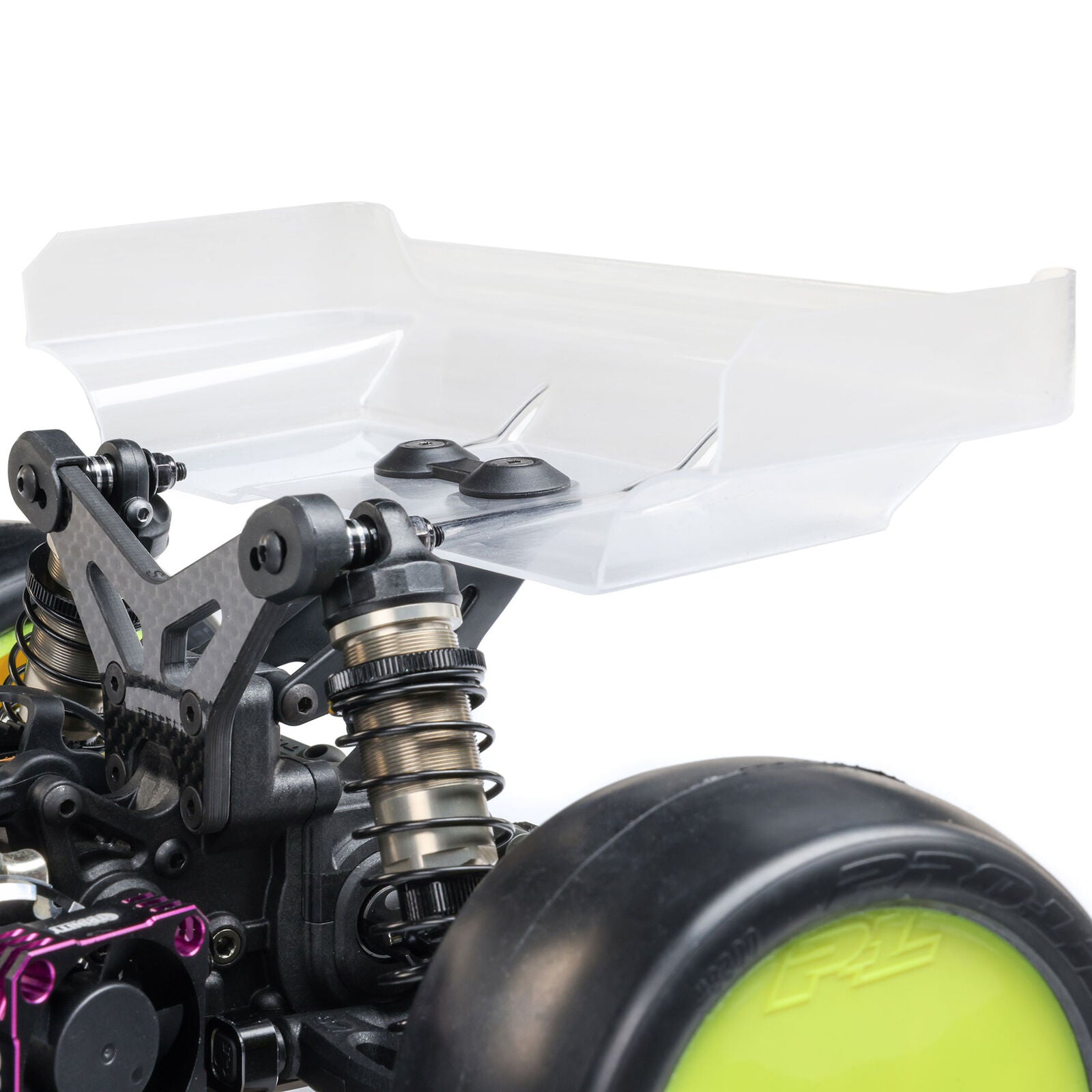

✔ Pro-Line Air Force 7" rear wing included
✔ Pro-Line front wing included
Includes
- (1) Team Losi Racing 22X DC 1/10 Scale 2WD Race Buggy Kit
- (1) Pro-Line Sector 22X Body
- (1) Pro-Line Air Force 7" Wing
- (1) Pro-Line Front Wing
- (1) Product Manual

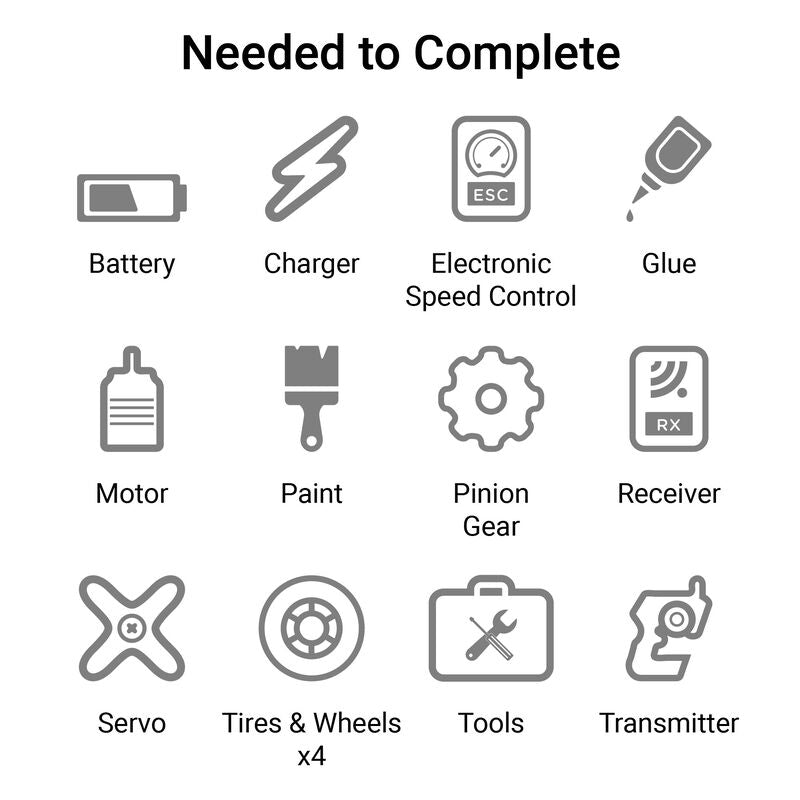

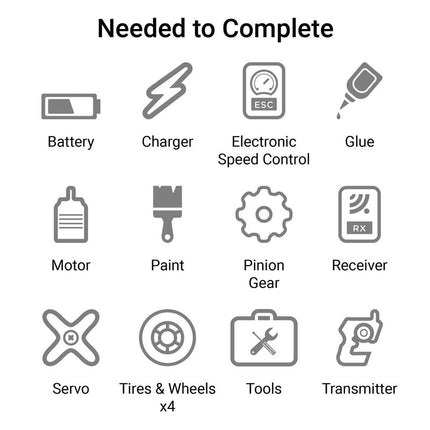

Needed to Complete
- (1) ESC
- (1) 540 Size Motor
- (1) 2S LiPo Shorty Battery
- (1) LiPo Battery Charger
- (1) Receiver
- (1) Transmitter
- (1) Servo
- (1) 48-Pitch Pinion Gear
- (1) 30x30mm Motor Fan – Optional
- (2) 2.2" 2WD Front Buggy Wheels
- (2) 2.2" Rear Buggy Wheels
- (2) 2.2" 2WD Front Buggy Tires
- (2) 2.2" Rear Buggy Tires
- Polycarbonate Paint
Specifications
|
Specification
|
Details
|
|
Brand
|
Team Losi Racing
|
|
Part Number
|
TLR-1233
|
|
Model
|
22X DC
|
|
Scale
|
1/10
|
|
Vehicle Type
|
Competition Buggy
|
|
Drive
|
2WD
|
|
Surface
|
Dirt & Clay
|
|
Power Source
|
2S LiPo
|
|
Motor Size
|
540
|
|
Chassis
|
2mm 7075-T6 Aluminum
|
|
Length
|
376mm (14.8")
|
|
Wheelbase
|
290mm (11.42")
|
|
Height
|
147mm (5.79")
|
|
Shock Diameter
|
13mm
|
|
Wheel Size
|
2.2"
|
|
Gear Pitch
|
48-Pitch
|
|
Assembly Level
|
Kit
|
Notes
- This is an unassembled competition kit and requires assembly before use.
- Electronics, wheels, tires, battery, charger, pinion gear, and paint are sold separately.
- The included polycarbonate body requires painting.
- Designed specifically for dirt and clay racing applications.
- Optional 30x30mm motor cooling fan sold separately.
