The Smart G2 Powerstage bundle is a one-box solution for vehicles requiring top performance. Designed with the simplicity of Smart G2 Technology, this bundle includes (2) 5000mAh 4S 100C Smart G2 LiPo Batteries, and (1) S2200 Smart G2 Dual Port AC Charger.
In The Box
(2) Spektrum 5000mAh 4S 14.8V 100C Smart G2 LiPo Battery Hardcase, IC5
(1) Spektrum S2200 Dual Port AC Smart G2 Charger, 2x200W
SPEKTRUM SMART G2 BATTERY
Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 100C LiPo batteries to power their vehicles. New "Generation 2" features make these LiPo packs — featuring a 100C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com
Key Features:
Simpler and safer to use
Powerful 100C continuous discharge rating to deliver maximum performance and longevity
Balance charge through the IC5® connector data wire — with only one connection, no balance lead required
Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
Integrated microchip stores unique parameters for each battery
IC5® connectors are also compatible with EC5™ styles
SPEKTRUM SMART CHARGER
With up to 200W power per channel or 380W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2200 charger delivers a versatile and truly hassle-free charging experience. The S2200 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart G1 or G2 batteries and you'll be amazed by its incredible functionality and performance.
The S2200 Smart G2 AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger's screen counts down the time until your Smart battery is fully charged and ready to use.
Balancing Smart G2 batteries is just as simple. The S2200 charger will balance your Smart G2 LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required.
The S2200 Smart G2 AC Charger's updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track.
USB input and output ports enable you to charge secondary devices and to update the charger's firmware so you always have the latest version. The S2200 Smart G2 AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.
Spektrum™ Smart G2 Family
Overview
Back to Top ^
SPEKTRUM SMART G2 BATTERY
Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. "Generation 2" features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com
Key Features:
Simpler and safer to use
Powerful 50C continuous discharge rating to deliver high performance and longevity
Balance charge through the IC5® connector data wire — with only one connection, no balance lead required
Faster Auto Discharge at up to 1.5A to safe storage voltage for long
Integrated microchip stores unique parameters for each battery
IC5® connectors are also compatible with EC5™ styles
SPEKTRUM SMART CHARGER
With up to 200W power per channel or 380W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2200 charger delivers a versatile and truly hassle-free charging experience. The S2200 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart G1 or G2 batteries and you'll be amazed by its incredible functionality and performance.
The S2200 Smart G2 AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger's screen counts down the time until your Smart battery is fully charged and ready to use.
Balancing Smart G2 batteries is just as simple. The S2200 charger will balance your Smart G2 LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required.
The S2200 Smart G2 AC Charger's updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track.
USB input and output ports enable you to charge secondary devices and to update the charger's firmware so you always have the latest version. The S2200 Smart G2 AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.
Spektrum™ Smart G2 Family
Specifications
Back to Top ^
Amp Meter
Yes
Battery Temperature Monitoring
Yes
Battery Type
LiPo (3.7V per cell)
Charge Protection Circuitry
Yes
Discharge
0.1 - 1.5A
Display
2.8" LCD
Hard Case
Yes
Input Voltage
100 - 240V AC
Integrated Balancing
Yes - Internal Balancer & Internal Adapter
Low Input Voltage Protection
Yes
Maximum Burst Discharge Rate
20A
Maximum Continuous Discharge Rate
1.5A
Normal/Standard Charge Rate
0.1 - 20.0A
Number of Cells
1 - 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb
Output
2 x 200W, or 380W on one channel
Output Connector
IC3 and IC5 selectable
Over Current Protection
Yes
PC Connectivity
Yes
Peak Detection
Yes
Product Height
4.13" (105 mm)
Product Length
5.7" (145 mm)
Product Weight
37.7oz (1070g)
Product Width
5.67" (144 mm)
Programmable
Yes
Reverse Polarity Protection
Yes
Safety Timer
Yes
Selectable Charge Rate
Yes
Short Circuit Protection
Yes
Software Updates
Yes
Technology
Smart
Thermal Protection
Yes
Voltage Meter
Yes
This Spektrum RC DX5 Pro 2021 5-Channel DSMR Surface Radio is ready to support the connectivity advantages of Smart Technology out of the box, the Spektrum DX5 Pro 2021 DSMR also includes design and ergonomic improvements to give racers, bashers and boaters top-of-the-line features at an affordable price.
Features:
Smart Technology compatible out of the box
Five fully proportional channels
Generous ergonomic options for tailoring the transmitter to your feel
Multiple mixing setups including Motor on Axle (MOA)
Upgraded RF Module for stronger signal and improved output power
DSMR 2.4GHz technology (backwards compatible with DSM2)
5.5-Millisecond frame rate with compatible receivers
Advanced programming features, made easy to use with SimpleScroll interface
Built-in telemetry
Programmable vibe alerts
250-Model memory
LiPo battery compatible (battery not included)
Specifications:
Application: Surface
Product Length: 8.3" (211 mm)
Input Voltage: 4 - 8.4V
Band: 2.4GHz
Resolution: 2048
Transmitter(Tx) Battery Type: 4 x AA cells included
Product Weight: 1.4lbs (0.63Kg)
Telemetry: Yes
Modulation: DSMR
Product Width: 5.6" (142 mm)
Range: Full
Product Height: 5.3" (135 mm)
Channels: 5
Frame Rate: 5.5 Ms
Programmable: Yes
Receiver: Not Included
SD Card/Airware Capable: Yes
Model Memory: 250
Rate Positions: 3 POSIncludes:
(1) DX5 Pro 2021 5-Channel DSMR Surface Radio
Needed to Complete:
(4) AA Transmitter Batteries
(1) Compatible Spektrum DSMR Receiver
The Smart Technology Powerstage Bundle is a one-box solution for vehicles requiring top performance. Designed with the simplicity of Smart Technology, this bundle includes (2) 5000mAh 3S 50C Smart LiPo batteries, (1) S2100 Smart AC Charger and (2) IC5 charge adapters to charge your IC5 batteries on the S2100 charger.
Spektrum Firma 160 Amp Sensorless Brushless Smart ESC & Motor Combo, with included 1250Kv motor. Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Spektrum Smart electronics.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity*. Firma ESCs not only gather the data, but also send it to your Smart compatible transmitter in real time, allowing the ability to adjust settings as needed to boost performance on the go.
This ESC comes bundled with a Spektrum Firma 1250Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
Features:
Smart all-in-one telemetry*
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Comes bundled with Spektrum Firma 1900Kv Brushless Motor
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty
Specifications:
Auto Cutoff: Yes
BEC: Yes
BEC Continous Current: 5A
BEC Type: Switch Mode
BEC Voltage: 6V
Battery Connector: IC5
Battery Input Lead: 10AWG Dual IC5, EC5 compatible
Brakes: Yes
Bushing Or Bearing: Bearing
Cells: 4-8 cell LiPo
Connector Type: 6.5mm Bullet
Efficiency: 90%
Forward: Yes
Height: 1.8" (44mm), ESC
Input Voltage: 3S - 8S LiPo,12-35.2V
Length: 2.7" (70mm), ESC
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 1050A
Maximum Continuous Current: 180A,160A
Motor Connector: 6.5mm Bullet
Motor Output Lead: 6.5mm Female Bullets
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 1.9 in (49mm), motor
Output: 6300W
Overall Length: 3.3" (85mm), motor
Overload Protection: Yes
Programmable: Yes
RPM/Volt (Kv): 1250Kv
Recommended Speed Control: Spektrum Firma 160 Smart ESC
Reverse: Yes
Sensored: No
Shaft Diameter: 3/16" (5mm)
Weight: 9.9oz (280g), ESC,26.1oz (740g), motor
Width: 3.03" (77mm), ESC
Wire Gauge: 10 AWG
Includes:
(1) Spektrum™ Firma™ Smart ESC
(1) Spektrum™ Firma™ 1250Kv Brushless Motor
(1) Spektrum Smart sticker sheet
(1) Product Manual
Needed to Complete:
LiPo Battery w/EC5 or Spektrum Smart Battery w/IC5 connector*
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
Overview
Features
Spektrum Smart Technology ready
Special Edition Green custom color case
Updated touch panel - from previous DX5 Rugged releases - features better feel, control and operation
Bold styling that's aggressive with a focus on class-leading durability
Inspired by the ergonomically-recognized Spektrum™ DX5 Pro and DX5C transmitters
Water-resistant* chassis design protects against minor splashes
Dual lanyard mounts provide radio safety and accessibility
Surrounded rubber-bumper chassis protection
Built-in front chassis guard offers user-inspired accessory mounting options
Intuitive software based on user-tested functionality that's clean and simple
Innovative thumb-steering lever makes one-hand operation safer and more precise
Non-slip removable rubber hand grip and off-road treaded steering wheel
Built-in telemetry capability (telemetry compatible devices sold separately)
Convenient built-in tool storage compartment
Large easy-to-read LCD screen
Five-channel, full-proportional versatility
Frequency-agile, Spektrum™ DSMR® 2.4GHz technology
Program and fine-tune compatible receivers with AVC® technology
Bind-progress screen displays status and frame rate
Compatible with DSM2® receivers
*The DX5 Rugged instruction manual details water resistance limitations.
Needed to Complete
(1) Compatible Spektrum DSMR Receiver such as the SR515 5-Channel DSMR Sport Receiver
(4) AA Batteries
What's in the Box?
(1) DX5 Rugged 5-channel Surface Transmitter, Green
(1) Product Manual
Overview
Your vehicles are extremely durable, why not your tr+-ansmitter? The Spektrum™ DX5 Rugged™ 5-channel surface transmitter redefines radio control with a level of durability to match the tough conditions off-roaders, bashers and boaters encounter constantly. We started with a chassis based on the superb Spektrum ergonomic design found on the popular DX5C and competition favorite DX5 Pro. From there, we integrated cordless power tool feature ideas for the die-hard punishment those products endure. The result is a class-leading RC system with unmatched durability in addition to other innovative features that unite with a level of precision, versatility and convenience you won't want to play without.
Molded Thermoplastic Polyurethane (TPU) bumpers surround the radio chassis to protect it against drops, bumps and even a few bangs here and there. There's no external antenna to snag or worry about—a low-profile ridge on the chassis protects the robust high-speed signal output internally. A versatile front chassis guard enhances durability further and provides mounting options for user-integrated accessories such as a camera, light source or anything else. The pair of lanyard mounting points gives drivers the ability to keep the transmitter close and gain a free hand when not driving. An easy-access accessory compartment makes it possible to can carry small tools, such as a T-wrench that smartly snaps into the internal mount provided. We increased transmitter water-resistance to give drivers peace of mind should there be an unexpected splash of water or some drops of rain. Last, but not least, is an aggressive off-road style steering wheel that expands its ruggedness even further, AND equipped it with an innovative thumb-lever to make controlling your vehicle with one-hand safer and more precise.
To conquer the wild, the DX5 Rugged gives you 5-channel versatility and hosts an array of auxiliary switches for lights, winches and more. Its interface features an innovative capacitive-touch control panel that offers a greater resistance to moisture and is easy to use. Simply slide your finger over the control panel and tap to select the menus, options and values on the easy-to-read LCD display. Additionally, the DX5 Rugged Green edition features an upgraded panel from previous releases, with an improved feel, control, and system operation. Integrated telemetry and Smart telemetry capability** allows you to view vital data such as motor RPM, vehicle speed, battery voltage and temperature right on the transmitter in real-time.
No matter what you're driving, the AVC® technology programming capability in the DX5 Rugged can be easily tuned meet your skill level or driving style with control that makes it feel like you're at the wheel of a vehicle that handles predictably at every speed.
*The DX5 Rugged instruction manual details water resistance limitations.
**Vehicle must be equipped with a telemetry-enabled receiver like the SR6100AT, SR215, SR315 or SR515 (sold separately)
DX5 Rugged Video Overview
Smart Technology Ready
When combined with Spektrum Firma Smart ESCs and Spektrum Smart capable receivers, the DX5 Rugged receives telemetry data right to your transmitter through the Smart Throttle port on the receiver. Smart Throttle ESCs can send RPM, speed, ESC temp, volts and amp draw.
Accessory Door Panel
Easy access to the Data Port and Tool Holder. Tool holder designed to hold a standard 4-way wrench. Please see your user manual for more Data Port information.
Unmatched Durability
Starting with a chassis based on a superb Spektrum ergonomic design, we were inspired by the punishment capability of cordless power tools, and translated their die-hard engineering to the specific needs of the RC driver. The result is a shock-absorbing rubberized bumper design that surrounds the transmitter chassis to form a level of protection never offered before on a surface transmitter.
Aggressive Styling
The DX5 Rugged stands out as a transmitter platform that means business handling the wildest terrain, the toughest conditions and fierce competition without any worry. That's why we designed durability hand-in-hand with convenience. A built-in side compartment offers tool storage, and two lanyard mounts (one rubber, one molded into the chassis) are supplied so you can be hands-free in an instant.
Inspired Ergonomics
The ergonomically-recognized DX5 Pro and DX5C transmitters paved the way in giving the DX5 Rugged™ a feel any driver could appreciate. Overall low weight offers all-day driving with minimal fatigue, while the non-slip rubber grip and its trigger-throttle action offer a precision experience that feels natural.
Versatile Chassis Guard
We built-in a front chassis guard to increase durability further and make it possible for users to creatively self-integrate personal accessories and/or features such as a camera or light source—the sturdy guard itself and its mounting points are at your disposal.
Breakthrough Steering Control
The aggressive off-road steering wheel tread helps the precision of Spektrum technology to also deliver a tactile feel even if you're crawling, bashing or boating in harsh conditions. The integrated thumb-lever innovatively makes it possible to steer one-handed safely and with a higher-level of precision.
Capacitive Interface
Toward the matter of improving water-resistance the scroll wheel and buttons were exchanged for a capacitive-touch sensing control panel that responds to the simple touch of your finger. Sensitivity of the panel can be adjusted and a large LCD display helps make navigating the intuitive software easy. The Green edition also has an improved screen from previous Rugged releases, offering an improved feel, better control, and more seamless interface operation.
Easy to Program
Programming the DX5 Rugged is simple. An intuitive interface makes navigating menus and changing settings easy. Most users can complete complex programming tasks on the fly.
Built-In Telemetry
The built-in telemetry capability can give you real-time information on things like your vehicle's battery voltage, signal quality, motor temperature and more.** Using the audio-tone alert system, you can program the DX5 Rugged to notify you when specific telemetry values reach or exceed limits you define.
**Vehicle must be equipped with a telemetry-enabled receiver like the SR6100AT, SR215, SR315 or SR515 (sold separately)
Frequency-Agile DSMR® Technology
The DX5 Rugged is built around frequency-agile, DSMR 2.4GHz technology. This exclusive Spektrum™ technology can be used in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. It's also backwards compatible with DSM2® and marine-specific Spektrum receivers. This means most longtime Spektrum users can continue to use the receivers they have. They'll only need to upgrade if they want the frequency-agility of a DSMR receiver for busy 2.4GHz environments.
AVC® (Active Vehicle Control™) Programming
The DX5 Rugged makes it possible to custom tune an AVC system by providing easy-access to dedicated adjustments. In addition, open channels of the Rugged can be used to adjust the AVC steering and throttle systems independently. No matter what you're driving, AVC technology can easily meet your skill level or driving style with control that makes it feel like you're driving a finely tuned vehicle that handles predictably at every speed.
Specifications
Band
2.4 GHz
Channels
5
Computer Radio
Yes
Frame Rate
11/22 Ms
Model Memory
20
Modes
Mode 1
Modulation
DSMR
Range
Full
Receiver
Sold Separately
Telemetry
Yes
Transmitter (Tx) Battery Type
Four AA batteries (sold separately)
Water-Resistant
Yes
This is the Spektrum RC Firma 8S 160 Amp Brushless Smart ESC, a feature packed ESC that delivers power and intelligence in an all-in-one package - no additional vehicle module or links required. This 160A brushless ESC gives your large scale vehicle the ultimate drive while feeding real-time telemetry straight to your radio.
Features:
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple programming options
Multi-point protection
Specifications:
Continuous Current: 160A
Peak Current: 1050A
Motor: Sensorless Brushless
Applications: Large Scale Surface
Input: 3S-8S Lipo
BEC Output: 6V/8.4V @ 5A
Dimensions: (LxWxH) 70mmx55mm (77mm At tabs) x44mm (2.8"x2.2" (3.0" at Tabs) x 1.7")
Battery Connector: IC5 (EC5 Compatible)
Motor Connector: Female 6.5mm bulletWeight: 280g (9.9oz)Modes: Forward/Reverse/Brake; Forward/Brake; Forward/ReverseFan: YesConstruction: Plastic with aluminum heat sink
COMPATIBILITY:
Arrma Kraton 8S BLX
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty
Spektrum Firma 130 Amp Sensorless Brushless Smart ESC & Motor Combo, with included 1900Kv motor. Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Spektrum Smart electronics.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity*. Firma ESCs not only gather the data, but also send it to your Smart compatible transmitter in real time, allowing the ability to adjust settings as needed to boost performance on the go.
This ESC comes bundled with a Spektrum Firma 1900Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
Features:
Smart all-in-one telemetry*
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Comes bundled with Spektrum Firma 1900Kv Brushless Motor
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty
Specifications:
Auto Cutoff: Yes
BEC: Yes
BEC Continous Current: 4A
BEC Type: Linear
BEC Voltage: 6V
Battery Connector: IC5
Battery Input Lead: 6.3" (160mm) 12AWG
Bearings or Bushings: Bearings
Brakes: Yes
Cells: 3-6S LiPo
Connector Type: D4
Efficiency: 86%
Forward: Yes
Height: 1.5" (38mm), ESC
Input Voltage: 2S - 4S LiPo,11.1 - 22.2V (25.2V max)
Length: 2.2" (57mm), ESC
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 760A
Maximum Continuous Current: 130A,60A
Motor Connector: 4mm Female Bullet
Motor Output Lead: 5.9" (150mm) 12AWG
Motor Type: Brushless sensorless
Number of Poles: 4
Output: 3000W,4940A (6S)
Overall Diameter: 1.6 in (42mm), motor
Overall Length: 2.9 in (74 mm), motor
Overload Protection: Yes (Thermal protection as well)
RPM: 29100 @ 15V
RPM/Volt (Kv): 1900,1900Kv
Reverse: Yes
Sensored: No
Shaft Diameter: 0.197 in (5 mm)
Shaft Length: 0.73 in (18.5 mm)
Weight: 4.4oz (126g), ESC,14.67 oz (416 g), motor
Width: 1.4" (37mm), ESC
Includes:
(1) Spektrum™ Firma™ Smart ESC
(1) Spektrum™ Firma™ 1900Kv Brushless Motor
(1) Spektrum Smart sticker sheet
(1) Product Manual
Needed to Complete:
LiPo Battery w/EC5 or Spektrum Smart Battery w/IC5 connector*
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
The Spektrum DX5C 5-Channel DSMR Surface Radio is the perfect solution for bashers, boaters and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 5-channel control offers. Built around frequency-agile, DSMR 2.4GHz technology, you can use the DX5C in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. It's also backwards compatible with DSM2 Spektrum receivers. This means most longtime Spektrum users can continue to use the receivers they have. They'll only need to upgrade if they want the robust 2.4GHz interference protection a DSMR receiver can deliver.
Features:
5 fully proportional channels
Spektrum Smart Technology ready
Program and fine-tune compatible AVC receivers
20-model memory
Smooth, dual-ball bearing precision
Frequency-Agile, Spektrum™ DSMR® 2.4GHz technology
Non-Slip Rubber Grips
Back Button Makes Navigating the Interface more Intuitive
Steering Mix, 4-Wheel Steering Mixing, plus One Assignable Mix
Bind-Progress Screen Displays Status and Frame Rate
Program and Fine-Tune Compatible AVC® Receivers
Compatible with DSMR and DSM2* receivers (DSM2 only operates on 16.5ms frame rate)
EN328 Compatible
Specifications:
Band: 2.4GHz
Channels: 5
Model Memory: 20
Modulation: DSMR
Resolution: 2048
Battery Type: AA x 4 (Sold Separately)
Type: Intermediate Computer
Includes:
(1) Spektrum™ DX5C 5-Channel Smart Transmitter
(1) Product Manual
Needed to Complete:
(4) AA Batteries
Compatible Receiver
The Spektrum Smart S1500 DC LiPo Smart Charger is perfect for large batteries that require large amounts of charging power. Compact enough to carry in a pocket or field bag, the S1500 easily goes with you to the field, track, or any place where you need to charge your LiPo and NiMH batteries.
The S1500 charger's improved, extra-precise scroll wheel interface simplifies setup. When used with Spektrum Smart LiPo batteries having IC3 or IC5 connectors, the S1500 also uploads specific parameters and health data from the battery's integrated memory chip and displays it on the bright LCD screen for review — giving you the information you need to evaluate your packs and make the best charging decisions.
For input power, use a Spektrum Power Supply unit (SPMXC10201, available separately) or any compatible DC power source with the included IC3 power cable adapter. The S1500 charger has a USB port, a software update port, plus a safety timer and protection against heat, reverse polarity, short circuit, over-current, and low input voltage.
Features:
High 500W output quickly charges large, high-capacity and high cell count batteries with ease
Ideal for use with Spektrum™ Smart batteries featuring the IC3 or IC5 connector
Smart Technology recognizes unique Smart battery data for safe, convenient charging
Can also be used to charge batteries without Smart Technology
Enhanced touch wheel interface improves setup ease and precision
2.4-inch LCD screen with auto-brightness is easy to read even in extreme sunlight
Compact design with rounded edge fits in a bag or pocket for easy carrying
Internal cooling fan maintains a safe, efficient operating temperature
Note: This charger supports IC5 batteries, but does not include the IC5 lead. The IC5 connector (SPMXCA507) is sold separately.
Specifications:Application: Battery Charger for Electric Powered RC Vehicles and AircraftBattery Balance Connector: JST-XHBattery Temperature Monitoring: Yes, Temperature Sensor IncludedBattery Type: 1-6S LiPo, LiFe, LiHv / 1-16C NiMH, NiCd, PbCircuit Breaker: YesCooling Method: FanDisplay: 2.4" 320x320 IPS LCDHeight: 1.9" (50mm)Input Voltage: 8-30VIntegrated Balancing: Y - Internal Balancer & External AdapterLength: 3.7" (95mm)Low Input Voltage Protection: YesMaterial: Plastic CaseMaximum Charge Rate: 26.1V, 20AModel Memory: Smart IDOutput Connector: IC3 (compatible with EC3)Over Current Protection: YesPC Connectivity: Yes - USB, external adapter requiredPC Required: NoPeak Detection: YesReverse Polarity Protection: YesSafety Timer: YesSelectable Charge Rate: Yes - Incremental (0.1A Increments)Short Circuit Protection: YesSoftware Updates: Yes, via USB PortThermal Protection: YesType: DC Powered Smart Battery ChargerWeight: 8.5oz (240g)Width: 3.8" (97mm)
Includes:
(1) Spektrum™ S1500 DC Smart Charger
(1) IC3™/Banana Power Supply Cable
(1) Product Manual
Needed to Complete:
Spektrum™ Power Supply unit (see Completion Guide or Optional Accessories) or any compatible DC power source

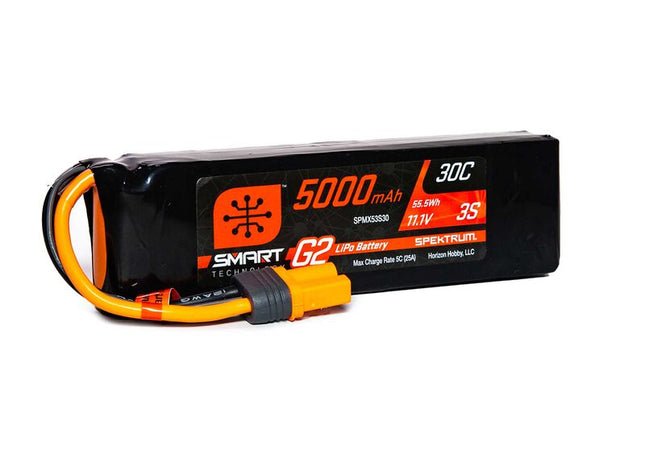

Spektrum Smart technology LiPo Batteries practically take care of themselves. When combined with a Spektrum™ Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it’s connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition!
Spektrum Smart technology puts you in complete control, makes you more aware and more confident about the capability of your equipment—all the while making your hobby easier. The combined result will make you wish everything about your hobby was “smarter.”
You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.
Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that’s conveniently compatible with older devices equipped with robust EC3™ and EC5™ connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you’ve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the “Start” button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Features
Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microship Stores Unique Parameters for Each Battery
IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Specifications: Type: Smart LiPoCapacity: 5000 mAhVoltage: 22.2VConnector Type: IC5Cell Size: 3.7VNumber of Cells: 6Weight: 1.44 lbs. (655g)Dimensions (WxLxH): 5.9 x 1.9 x 2.0 in. (151 x 47 x 52mm)Length: 5.9 in. (151mm)Width: 1.9 in. (47mm)Height: 2.0 in. (52mm)Application: AircraftMaximum Continuous Discharge : 30C
CHARGING NOTE: This battery can only be safely charged with a Spektrum Smart Battery Charger. NEVER, UNDER ANY CIRCUMSTANCES, charge this battery using a non Spektrum Smart Battery Charger.
The Spektrum RC Firma Sensored 540 Brushless Crawler Motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. This motor features a low cog 4-pole 8-magnet rotor design, a CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required to complete this package.
Features:
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect for low speed, high torque applications such as competition crawlers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
4mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Specifications:
Type: Crawler
Motor Size:1/10
Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Connector Type: 4mm Bullet
Product Length: 2.27" (58mm)
Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Reverse: Yes
Water-Resistant: Yes
Forward: Yes
Maximum Continuous Current: 50A
Bushing Or Bearing: Bearing
Number of Poles: 4
Motor Type: Brushless - Sensored
RPM/Volt (Kv): 2800Kv
Input Voltage: 7.4 - 11.1V
Outer Diameter: 1.42" (36mm)
Shaft Diameter: 0.125" (3mm)
Overall Length: 2.27" (58mm)
Spektrum Smart technology LiPo Batteries practically take care of themselves. When combined with a Spektrum™ Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it’s connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition!
Spektrum Smart technology puts you in complete control, makes you more aware and more confident about the capability of your equipment—all the while making your hobby easier. The combined result will make you wish everything about your hobby was “smarter.”
You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.
Every Smart LiPo battery is factory assembled with the next-generation IC3 or IC5 output connector that’s conveniently compatible with older devices equipped with robust EC3 and EC5 connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you’ve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the “Start” button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Features
Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microship Stores Unique Parameters for Each Battery
IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Specifications:
Type: Smart LiPoCapacity: 5000 mAhVoltage: 14.8VConnector Type: IC5Wire Gauge: 12Number of Cells: 4Weight: 1.09 lbs (495 g)Configuration: 4S1PLength: 5.4 in (138mm)Width: 1.8 in (47mm)Height: 1.5 in (40mm)Application: SurfaceMaximum Continuous Discharge : 100C
CHARGING NOTE: This battery can only be safely charged with a Spektrum Smart Battery Charger. NEVER, UNDER ANY CIRCUMSTANCES, charge this battery using a non Spektrum Smart Battery Charger.
Overview
Product Features
6-channel DSMR / DSM2 receiver
Full-range telemetry capabilities with Spektrum Firma Smart ESC
Great for models that will benefit from AVC Technology that need additional channels for lights, shift servos and other accessories
Steering priority puts the driver in complete control
Fully adjustable-set the precise amount of stability you want or turn off if desired
Water-resistant "Realkote" coating protects electronics
Voltage sensor data port, voltage sensor included
Works with any RC car, truck or buggy
Compatible with all DSMR transmitters
Product Overview
Built around frequency-agile DSMR technology, the Spektrum SR6100AT 6-channel receiver delivers superb range and response, especially in places where multiple 2.4GHz systems are in use at one time. SR6100AT features patented Spektrum AVC (Active Vehicle Control) and full range telemetry capabilities. AVC Technology reads your control inputs, senses your car's direction and makes as many as 180 steering and power adjustments per second so you can hold the line without holding back. SR6100AT taps into telemetry functions from Spektrum Smart Technology electronics speed controls and conventional voltage sensor.
Smart Throttle
The SR6100AT receiver throttle port includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed control is plugged in and the throttle port will begin to operate in Smart throttle mode. When combined with Spektrum Smart LiPo batteries with IC series connectors can pass along battery data from compatible Spektrum Smart batteries. The SR6100AT also features two integrated telemetry ports that are compatible with telemetry capable DSMR transmitters. If a standard ESC or servo is plugged into the throttle port on the SR6100AT receiver, the throttle port will operate normally like any conventional receiver.
AVC Technology
With the SR6100AT driver's get stability control for ANY vehicle in their collection! You can have the stability control of AVC™ (Active Vehicle Control) technology in any vehicle just by adding the SR6100AT receiver and binding it to an AVC compatible transmitter. AVC technology creates a more enjoyable driving experience by managing the vehicle's driving characteristics and attitude. This translates into more control for you and a more manageable vehicle in all driving environments.
Specifications
Back to Top ^
Antenna Length
4.7" (120mm)
Band
2.4GHz
Bind Method
Bind Button
Channels
6
Data Port
No
Failsafe
Yes
Flight Log Compatible
Yes
Input Voltage
3.5 - 9.6V
Modulation
DSMR
Product Height
0.59" (15.1mm)
Product Length
1.7" (42.4mm)
Product Weight
0.35oz (10g)
Product Width
0.94" (23.9mm)
Programmable
Yes
Range
Full
Resolution
1024
Rev Limiter
No
Technology
Smart Technology
Telemetry
Compatible
Water-Resistant
Yes
Features
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Waterproof
1-Year Limited Warranty
23T output shaft
Aluminum mounting tabs
Removable wire harness with different lengths available
NMB dual main bearings
Aluminum case for good heat dissipation
Overview
Key Features
Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty
Overview
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
Specifications
Application
1/10 Buggy, Truck, On-Road
Bearing
Dual
Bushing Or Bearing
Bearing
Connector Type
Universal
Connector Wire Length
7.87 in (200mm)
Current Draw Idle
9.8 mA @ 6.0V
Current Draw Stall
4.9A @ 6.0V
Deadband
4?s
Gear Type
Metal
Maximum Servo Speed
0.050-0.099 sec
Maximum Servo Torque
200-349 oz-in
Motor Type
Coreless
Product Height
1.18 in (30mm)
Product Length
1.61 in (41mm)
Product Weight
2.1 oz (59.5g)
Product Width
0.82 in (20.9mm)
Programmable
No
Rotation Range
120 deg
Servo Operating Voltage
6.0V
Servo Size Category
Standard
Servo Type
Digital
Speed
0.08 sec/60 deg @ 6.0V
Spline Count
23 Teeth
Torque
208 oz-in (15.0kg-cm) @ 6.0V
Wire Gauge
22 AWG
The Spektrum S1200 Smart Charger is the first DC Charger to feature Spektrum smart charging and battery technologies that when combined make charging virtually any battery easier, faster, safer and more convenient than ever before.
The Spektrum RC 4S Smart G2 LiPo 50C Battery Pack with IC3 Connector provides pilots and drivers with an array of Smart benefits; Not only are charging parameters and performance data stored and uploaded automatically to Smart chargers, but no balance lead is needed — just one easy IC connection.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Enjoy the Smart Battery advantage of not having to set your own charging preferences. When a Smart G2 LiPo battery is connected to a Spektrum Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. That's the Smart Battery Advantage!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
Features:
Simpler and safer to use
Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
Thicker internal metal side plates protect cells and improve heat dissipation
Integrated microchip stores unique parameters for each battery
IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
Specifications:
Maximum Burst Discharge Rate: 50C
Watt Hours: 32.56
Normal/Standard Charge Current: 5A
Hard Case: Yes
Battery Capacity: 2000-2999mAh
Battery Voltage: 14.8V
Product Width: 1.33" (34 mm)
Product Height: 1.08" (27 mm)
Battery Balance Connector: G2 Smart
Normal/Standard Charge Rate: 1C
Product Length: 4.96" (126 mm)
Product Weight: 9.17oz (260g)
Application: Aircraft
Charge Protection Circuitry: Yes
Connector Type: IC3
Wire Gauge: 12 AWG
Battery Type: LiPo (3.7V per cell)
Capacity: 2200mAh
Number of Cells: 4
COMPATIBILITY:
E-flite F-14 TomcatE-flite F4U-4 Corsair 1.2mE-flite RV-7 1.1m
Save time and hassle, while improving battery life
Smart discharge allows batteries to automatically discharge to a safe voltage
Gold plated heavy-duty tubes
Integrated microchip stores unique battery parameters and data
Smart Battery is ROAR Approved
Stylish Spektrum orange carbon fiber look
Impact resistant ABS plastic hardcase
Smart chip reader and balance wire on one connector
Powerful 100C continuous discharge rating to deliver maximum performance and longevity
5mm tube positive and negative leads installed on each battery
High Voltage (HV) Capable
Several capacity levels to choose from for your driving preferences
Overview
Key Features
Integrated microchip stores unique battery parameters and data.
Smart discharge allows batteries to automatically discharge to a safe voltage.
Save time and hassle, while improving battery life.
Powerful 100C continuous discharge rating to deliver maximum performance and longevity.
High Voltage (HV) Capable.
Stylish Spektrum orange carbon fiber look.
Impact resistant ABS plastic hardcase.
5mm tube positive and negative leads installed on each battery.
Gold plated heavy-duty tubes.
Smart chip reader and balance wire on one connector.
Several capacity levels to choose from for your driving preferences.
Smart Battery is ROAR Approved
Feature Overview
You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.
Our Spektrum Smart 100C Lipos come in a variety of popular sizes and are ready to drop into your RC racing buggy or truggy for maximum performance, power, and reliability. These are the perfect packs for drivers that need to get every last electron of performance out of their setup. Faster punches, less resistance to quick current load changes, and superior performance will satisfy pro class drivers.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles
Smart Battery Technology
When connected to a Spektrum Smart charger, unique parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the “start” button. Smart technology will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3™ and IC5™ output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.
Data Rich
An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready for a day at the field or the track.
Simple and Quick
Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum Smart Battery making charging as simple as pressing the “Start” button. Charge rate of individual batteries can be user customized allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press “Start.”
IC3 & IC5 Connectors
The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3 and EC5 connectors, there’s no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology obvious.
Smart Discharge
LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours. This feature will help to extend the life of your Smart Batteries by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.
Specifications
Application
High Performance Racing
Battery Balance Connector
Molex 2-pin
Battery Capacity
4000-4999mAh
Battery Voltage
7.6V
Capacity
4000 mAh
Cell Configuration
2S1P
Hard Case
Yes
Maximum Burst Discharge Rate
100C
Maximum Charge Rate
3C
Normal/Standard Charge Rate
1C
Number of Cells
2
Product Height
.87 in (22mm)
Product Length
3.78 in (96mm)
Product Weight
5.71oz (162g)
Product Width
1.85 in (47mm)
Smart Technology
Smart Battery
Watt Hours
30.4
Features
Smart charging features include protection against a short circuit, over current and more
Simple, one-touch command dial interface makes operation easy
Four independent ports for the ultimate in charge precision
Individual LED displays show battery current, capacity and voltage
Versatile design includes four connector types built into each charge port
Independent charging circuits for improved speed and efficiency
Charge flexibility with adjustable charge currents from 0.05 to 1.2A
Integrated cooling system promotes unit reliability
Visual and audio charge status indicator system
Convenient AC and DC input (11 – 15v DC)
Overview
The Spektrum™ Micro 4 Smart charger is a 4-port tool for the RC pilot who wants the ultimate in 1S LiPo battery charging. Featuring Spektrum Smart Charging technology, its digital LED status screen delivers vital battery information in a clear manner the instant you connect. Its compact all-in-one design incredibly offers four independent charging channels, each with enough built-in connectors so that charging multiple 1S batteries with the highest level of precision is easy.
Each of the four charging channels is built-in with independent circuitry to enhance charge precision and efficiency. Vivid LED status lighting includes individual 4-digit displays and multi-color LEDs so you can instantly see the charge phase and battery condition. The simple press-dial interface allows you to finely tune the charge rates from 0.05 to 1.2A making it possible to fast-charge most high rated batteries. Exclusive software detects LiPo and LiHV 1S batteries automatically and combines with Spektrum Smart Charging technology so your batteries get maximum protection against short circuit, over current, reverse polarity and input voltage errors.
The Micro 4 AC/DC system works when connected to a standard wall outlet or you can even take the Micro 4 charger on the go. Unlike charging multiple 1S batteries in parallel, each battery is individually recognized. As a result, you can charge individual 1S batteries with the precision of much more expensive charge units and possibly extend the life of all of your 1S batteries.
Spektrum™ Smart Tech Video Overview
Four Precision Charge Ports
Four individual charge circuits and four separate charge ports make it possible to charge multiple 1S packs with precision. Choose the exact charge rate you need from 0.05 to 1.2 amps using the individual dials that combine with a 4-digit display and a multi-color status LED system so you can keep a fleet of batteries working hard for you.
Easy to Use
Simply connect your 1S battery into one of the charge ports and the Micro 4 instantly displays battery voltage. The Micro 4 conveniently powers from a standard 120V wall outlet or remote power source. Its pushbutton dial keeps programming all four charge ports simple while the LED displays clearly show charge status, rate, voltage and more.
Compact Design
Each of the four ports features four connector types to select from so there are no cumbersome adapters to untangle. Lightweight and small in size makes it even easier to stash into a backpack and take anywhere.
Specifications
Display
4-digit LED
Input Voltage
100-240 Volts AC; 11-15 Volts DC
Maximum Charge Rate
1.0 A
Output Connector
Molex / JST / UM / PH
Part Type
Electronics
Product Height
2.0 in (51 mm)
Product Length
5.2 in (132 mm)
Product Weight
10 oz (283 g)
Product Width
3.9 in (99 mm)
Programmable
No
Technology
Smart
The Spektrum RC 2S Smart LiPo 50C Hard Case Battery Pack with IC5 Connector provides pilots and drivers with an array of Smart benefits; Not only are charging parameters and performance data stored and uploaded automatically to Smart chargers, but no balance lead is needed — just one easy IC connection.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Enjoy the Smart Battery advantage of not having to set your own charging preferences. When a Smart G2 LiPo battery is connected to a Spektrum Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. That's the Smart Battery Advantage!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
Features:
Simpler and safer to use
Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
Thicker internal metal side plates protect cells and improve heat dissipation
Integrated microchip stores unique parameters for each battery
IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
Specifications:
Battery Voltage: 7.4V
Connector Type: IC5
Wire Gauge: 10 AWG
Application: Surface
Hard Case: Yes
Maximum Charge Rate: 5C
Number of Cells: 2
Battery Type: LiPo (3.7V per cell)
Battery Capacity: 5000-5999mAh
Normal/Standard Charge Current: 5A
Battery Balance Connector: G2 Smart
Normal/Standard Charge Rate: 1C
Product Length: 5.45" (138mm)
Product Weight: 10.58oz (300g)
Product Width: 1.83" (46mm)
Capacity: 5000mAh
Charge Protection Circuitry: Yes
Product Height: 0.98" (25mm)
Maximum Burst Discharge Rate: 50C
Watt Hours: 37
Key Features
Battery checker with built in cell balancing
Advanced Servo testing feature helps with model setup
Spektrum Smart battery technology allows users to take advantage of Smart Battery features
Easy to read full color display
Qualcomm 3.0 compatible USB power port with Quick Charge for compatible Android and IOS devices (up to 12v and 2 amps)
Update port for easy access to updates and new features
Overview
The Spektrum XBC100 Smart Battery Checker is a must have tool for any pilot or drivers pit box. More than a battery checker, it features a built-in cell balancer, integrated servo tester and driver, and Spektrum Smart battery connectivity.
When used with a Spektrum Smart battery, you will be able to see and adjust many of the settings only available with a Spektrum Smart charger. This includes one connection for balance and battery level checking, and providing records like number of cycles, internal battery temperature and exception reports. You can even adjust Smart battery settings right from the XBC100.
The XBC100 also features a Qualcomm 3.0 USB charge port, giving you an easy way to keep your mobile device and Spektrum Smart Transmitters charged when USB power ports are scarce. Better yet, the XBC100 gives you the ability to better setup and test your models with the built in servo tester! Center and test your servo endpoints easily with the integrated PWM output port.
Finally, all of this is displayed on a full color IPS LCD screen that is designed to be easy to read in direct sunlight and is accessed via a user friendly touch interface.
Overview
Key Features
Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microchip Stores Unique Parameters for Each Battery
IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Feature Overview
You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.
Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that’s conveniently compatible with older devices equipped with robust EC3™ and EC5™ connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you’ve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the “Start” button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Smart Battery Technology
When connected to a Spektrum Smart charger, unique parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the “start” button. Smart technology will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3™ and IC5™ output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.
Data Rich
An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready for a day at the field or the track.
Simple and Quick
Preset charge, discharge, and storage parameters are automatically relayed to a Spektrum Smart Charger making charging as simple as pressing the “start” button. Charge rate of individual batteries can be user customized allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press “Start.”
IC3 & IC5 Connectors
The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3 and EC5 connectors, there’s no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology obvious.
Smart Discharge
LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours. This feature will help to extend the life of your Smart Batteries by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.
Specifications
Application
Surface
Battery Capacity
5000-5999mAh
Battery Voltage
7.4V
Capacity
5000 mAh
Connector Type
IC5
Hard Case
Yes
Maximum Continuous Discharge Rate
30C
Number of Cells
2
Product Height
1 in (25mm)
Product Length
5.5 in (139mm)
Product Weight
9.5oz (270g)
Product Width
1.8 in (46mm)
Smart Technology
Smart Battery
A great low-cost radio for bashers, crawler fans, and first-time drivers, the Spektrum™ 3-channel SLT3 offers dependable SLT FHSS 2.4GHz control.
Economical 3-channel Spektrum™ transmitter delivers dependable control now.
Combines SLT™ 2.4GHz security with Spektrum™ design expertise for reliable, worry-free performance.
Compatible with SLT FHSS 2.4ghz Protocol SLR300 Receiver and SR315 Dual Protocol Receiver (not included).
User-adjustable features include steering and throttle trims, steering rate, and throttle limits.
Includes a foam-covered steering wheel for no-slip control and mount for lanyard attachment.
This is a replacement Spektrum RC 7.4V 2000mAh Transmitter Battery, intended for use on many of the Spektrum Transmitters in both air and ground categories. Radios such as the DX9, DX8, DX5 Pro, and many more.
