⚡🏁 Brushless Power Upgrade for ARRMA Grom & Small-Scale RC Platforms

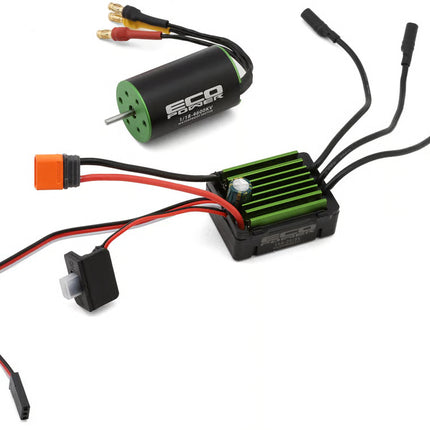

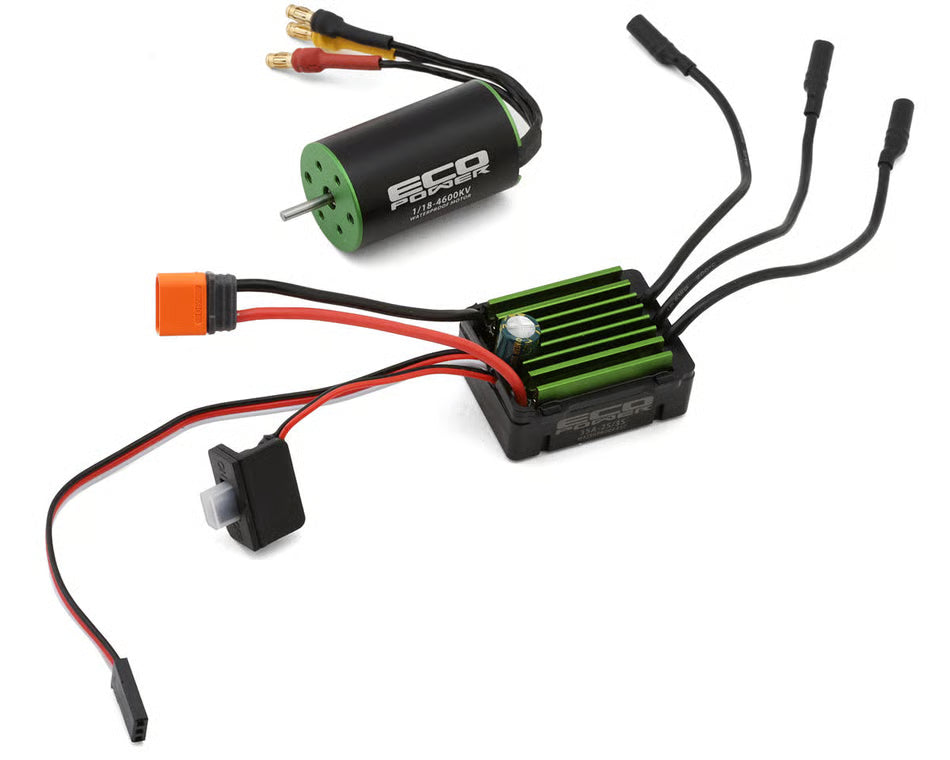

The EcoPower 35A Brushless ESC & 4600kV Motor Combo is a performance-focused upgrade designed for small-scale RC vehicles, including the ARRMA Grom series. Pairing a programmable 35A sensorless ESC with a high-torque 4600kV brushless motor, this system delivers smooth throttle response, strong acceleration, and dependable power in a compact package.
Designed for 1/14, 1/16, and 1/18 scale vehicles, the combo supports 2S-3S LiPo power and comes equipped with an IC2 battery connector.
About the EcoPower Brushless Combo
⚡ 35A Programmable ESC
The included sensorless ESC delivers 35A continuous and 120A burst current with built-in low-voltage cutoff, overheat, signal-loss, and overload protection. Its waterproof and dustproof construction helps provide dependable performance in demanding conditions.
🏎️ 4600kV Brushless Power
The included 4-pole, 12-slot 4600kV motor features a CNC-machined aluminum can, precision-balanced rotor, high-purity copper windings, and ABEC5 bearings. It's designed to provide an efficient combination of torque, acceleration, and top-end performance for small-scale bashers.
🔧 Programmable Performance
The ESC can be tuned using the optional EcoPower ESC Program Card ECP-8021 (sold separately), allowing drivers to adjust settings including low-voltage cutoff, braking, reverse force, and throttle response.
Features
✔ 35A sensorless brushless ESC
✔ 120A burst current
✔ 4600kV 4-pole brushless motor
✔ Designed for 1/14, 1/16, and 1/18 scale RC vehicles
✔ Supports 2S-3S LiPo and 4-9 cell NiMH batteries
✔ IC2 battery connector
✔ 3.5mm motor bullet connectors
✔ Waterproof and dustproof ESC construction
✔ CNC-machined aluminum motor can
✔ Precision-balanced motor rotor
✔ ABEC5 motor bearings
✔ 5.0V/2A BEC
✔ Multiple built-in electronic protections
✔ Programmable with optional ECP-8021 Program Card
✔ Excellent brushless upgrade option for ARRMA Grom platforms
Includes
- (1) EcoPower 35A Brushless ESC w/IC2 Connector
- (1) EcoPower 4600kV 4-Pole Sensorless Brushless Motor
- (1) Instruction Manual
Needed to Complete
- Compatible receiver
- ESC/servo mount
- Compatible battery
- Compatible battery charger
- Optional EcoPower ESC Program Card ECP-8021 for programming
Specifications
|
Specification
|
Details
|
|
ESC
|
|
|
Application
|
1/18, 1/16 & 1/14 Bashing
|
|
Motor Type
|
Brushless – Sensorless
|
|
Input Voltage
|
2-3S LiPo / 4-9 Cell NiMH
|
|
Continuous Current
|
35A
|
|
Burst Current
|
120A
|
|
Dimensions
|
40 x 32 x 20mm
|
|
Weight
|
37g (1.31oz)
|
|
BEC
|
5.0V / 2A
|
|
Battery Connector
|
IC2
|
|
Motor Connectors
|
3.5mm Bullet
|
|
Programmable
|
Yes
|
|
Motor
|
|
|
Type
|
Brushless – Sensorless
|
|
kV Rating
|
4600kV
|
|
Poles
|
4
|
|
Input Voltage
|
2-3S LiPo
|
|
Power
|
400W
|
|
Motor Connectors
|
3.5mm Bullet
|
|
Weight
|
22.6g (0.8oz)
|
|
Shaft Length
|
12mm (0.47")
|
|
Shaft Diameter
|
2.3mm (0.09")
|
Compatibility
Designed for small-scale RC applications including:
-
ARRMA Grom Series
- LOSI Nascar Series
- Other compatible 1/14, 1/16, and 1/18 scale RC vehicles
Fitment and additional components required may vary by vehicle.
Notes
- This combo replaces the stock 2-in-1 ESC/receiver system on applicable ARRMA Grom vehicles. A separate receiver and ESC/servo mount are required.
- Remove any cooling fan before operating the ESC in wet conditions.
- Clean and thoroughly dry the ESC and electrical connections after wet use.
- Optional EcoPower ECP-8021 Program Card sold separately.
- Always verify vehicle, battery, gearing, and mounting compatibility before installation.
