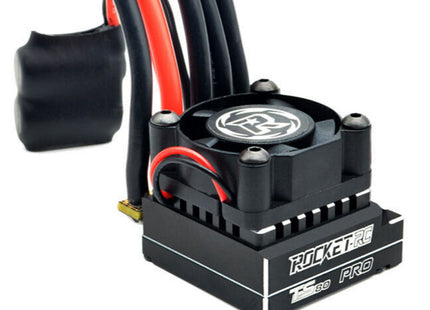

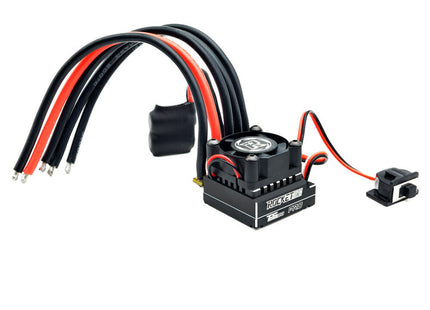

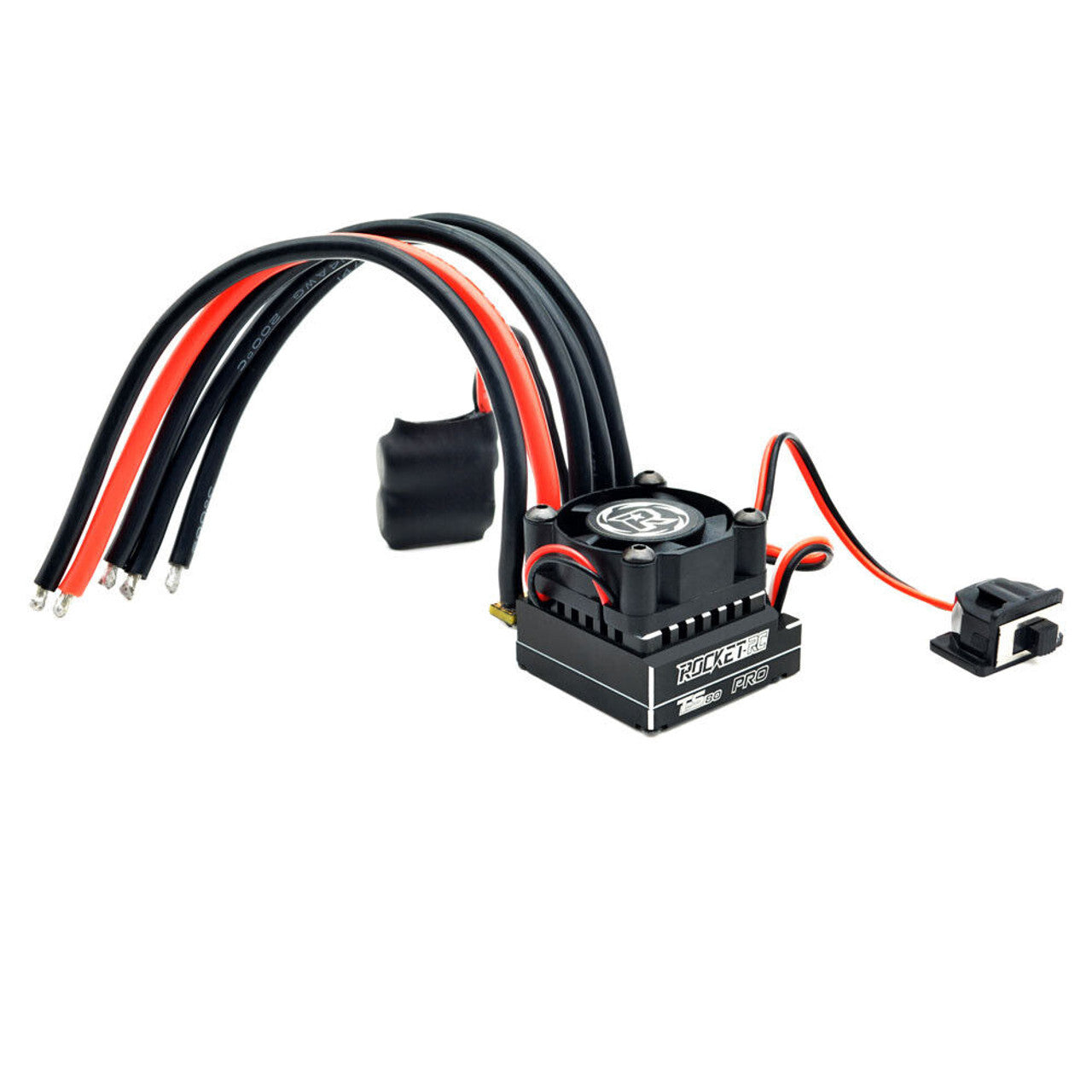

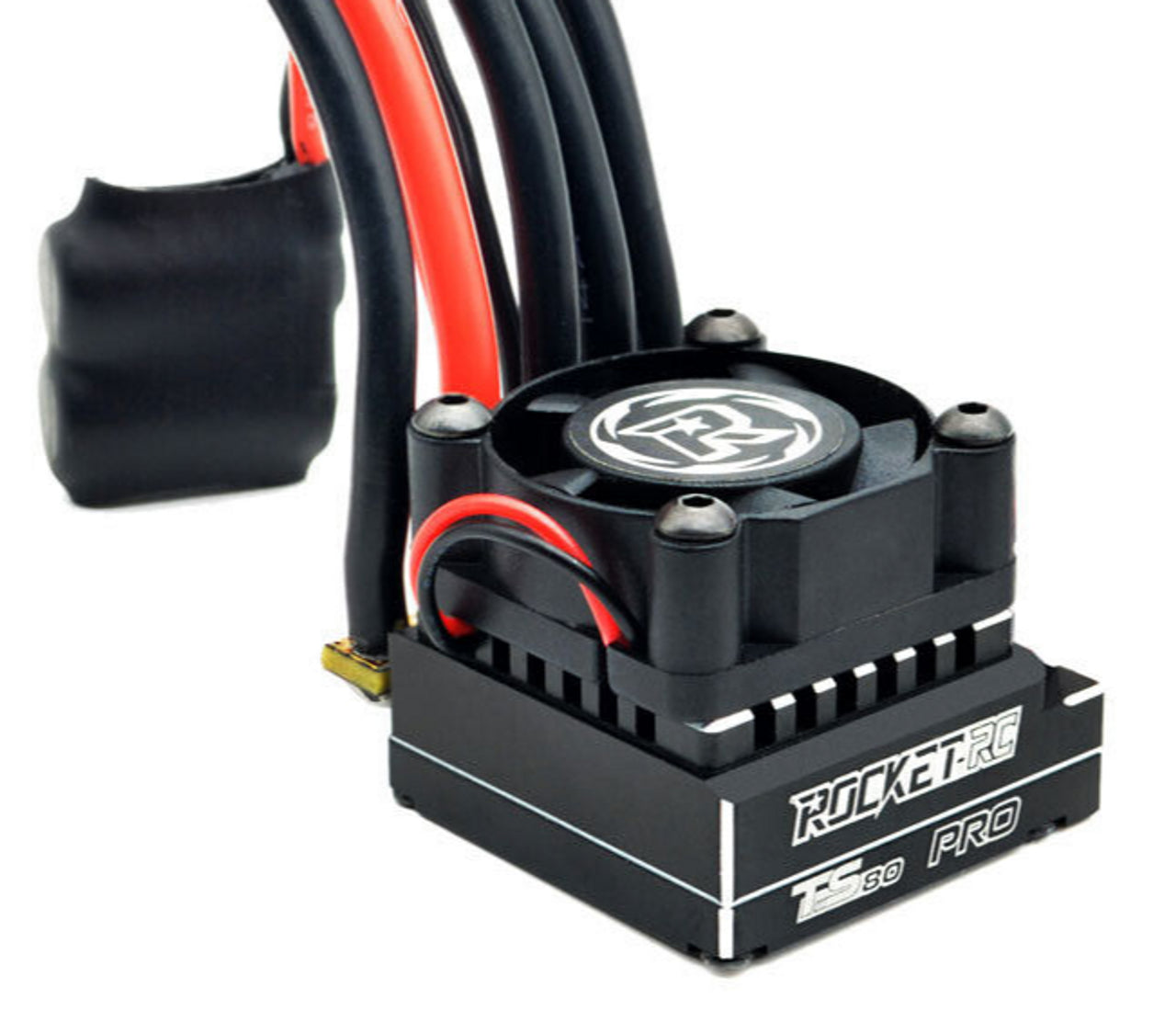

Compact, efficient, and competition-ready — the Rocket-RC TS80-PRO 80A Brushless Sensored ESC is designed for 1/10 stock class racing and 1/14 scale competition. With precision engineering and powerful output, it delivers smooth throttle control, reliable braking, and durability for serious racers.
⚡ Features:
-
Compact size perfect for 1/14 & 1/10 scale vehicles
-
Efficient aluminum casing with machined heatsink
-
High-performance cooling fan (23,000 RPM @ 7.2V)
-
Built-in Super BEC for stable power delivery
-
Programmable with optional LED V2 Program Card (KS-300004-00)
-
Pre-installed XT60 battery connector
-
Factory preset: Forward/Brake (can be adjusted to Forward/Brake/Reverse)
🔧 Specifications:
-
Dimensions: 29.5 x 29.5 x 24mm (with fan)
-
Weight: 62g (with wires)
-
Voltage Input: 6V–11V (2S LiPo)
-
Continuous Current: 80A
-
Peak Current: 160A
-
Motor Limit: Over 13.5T (540) / Over 10.5T (380/390)
-
Motor Type: Sensored 380 / 390 / 540 Brushless Motors
-
BEC: 3A / 6V
-
Multi-Protection System: Yes
📦 Includes:
-
(1) Rocket-RC TS80-PRO 80A Brushless Sensored ESC
-
XT60 Battery Connector (installed)
