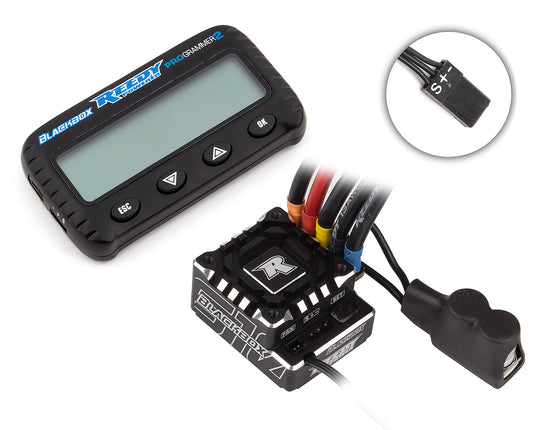

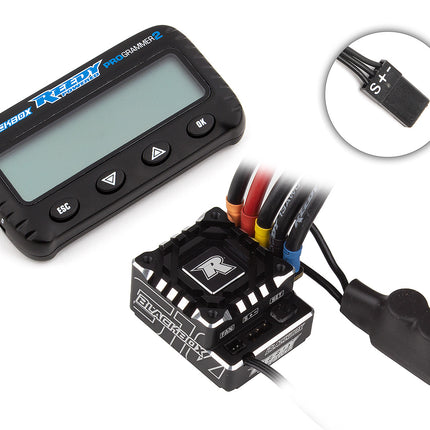

Reedy Blackbox 610R 2S Competition ESC w/ PROgrammer2 – Next-Level Performance & Precision!
Take your RC racing performance to the next level with the Reedy Blackbox 610R 2S Competition ESC, designed for elite-level throttle response, braking precision, and customizable tuning options. Building on the success of the Blackbox 510R, the 610R features updated 32-bit hardware for crisper throttle feel, smoother braking, and enhanced tuning flexibility. Whether you're running stock or modified 1/10 applications, this ESC delivers race-winning control and power.
Paired with the included Blackbox PROgrammer2, racers can unlock advanced settings, monitor battery health, and update firmware, making it the ultimate tool for fine-tuning your setup.
Key Features:
✅ CNC-Machined Black Aluminum Case w/ Integrated Heat Sink – Provides superior cooling and durability.
✅ 32-Bit Microcontroller Unit (MCU) – Ensures precise throttle and brake control with ultra-smooth response.
✅ Fully Adjustable Brake, Throttle, Power & Safety Functions – Fine-tune your setup for maximum performance.
✅ Blinky Mode with ROAR-Approved Software – Legal for stock class racing.
✅ Ultra-Low Resistance FET Board – Delivers efficient power delivery and minimal heat buildup.
✅ On-Board Power Button – Convenient and reliable operation.
✅ Solder Tabs with 13-Gauge Power Wires – Ensures high current flow for optimal efficiency.
✅ Pro External Capacitor Board – Improves voltage stability and consistency.
✅ RPM & ESC Temp Data Logging – Monitor real-time performance with the Blackbox PROgrammer2.
✅ Firmware Updateable – Stay ahead of the competition with upgradable software.
Blackbox PROgrammer2 – Unlock Full Tuning Potential!
With the included PROgrammer2, racers can adjust:
🔹 Brake Settings: Fine-tune brake strength, frequency, drag brake, and punch for the ultimate stopping power.
🔹 Throttle Control: Adjust drive frequency, punch, initial throttle, current limits, and dead band for a dialed-in feel.
🔹 Motor Power: Customize timing and boost settings for maximum speed and acceleration on large tracks.
🔹 Miscellaneous Controls: Modify BEC voltage, low voltage cutoff, overheating protection, and reverse settings for the perfect race setup.
📌 Note: The Blackbox 610R requires the ASC27027 Programmer with firmware version EE460139 (included in this combo).
Specifications:
-
Voltage Input: 2S LiPo
-
Suggested Applications: 1/10 Off-Road, 1/10 On-Road
-
Resistance (Ohms): 0.00043
-
Continuous Current: 160A
-
Dimensions: 38.5 x 36.9 x 19.5mm
-
Motor Limit: 4.5T
-
Weight (w/o Wires & Fan): 45g
-
BEC (Adjustable): 6.0V - 7.4V / 5A
-
Power Wires: 13-Gauge Silicone
-
Cooling Fan: Optional
In the Box:
-
(1) Reedy Blackbox 610R 2S Competition ESC
-
(1) Blackbox PROgrammer2
-
(1) External Capacitor Board
-
(1) Instruction Manual
Race-Proven Performance & Customization at Your Fingertips!
Whether you're competing in stock or modified racing, the Reedy Blackbox 610R delivers incredible throttle precision, braking control, and power efficiency. With full tuning capabilities via the Blackbox PROgrammer2, you can tailor every aspect of your ESC to fit your driving style and track conditions.
🔥 Upgrade today and experience championship-winning control with the Reedy Blackbox 610R! 🏁💨
