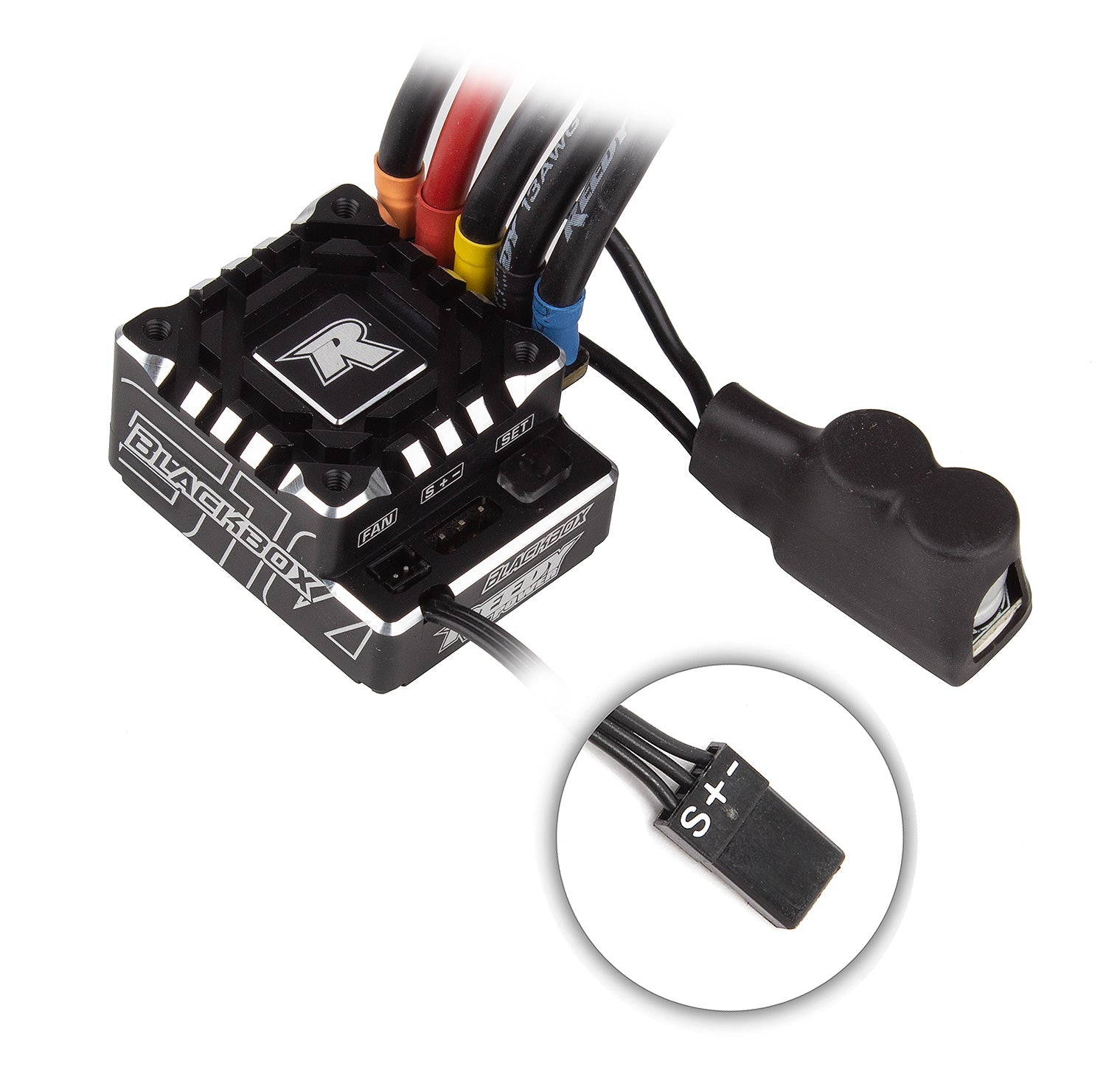

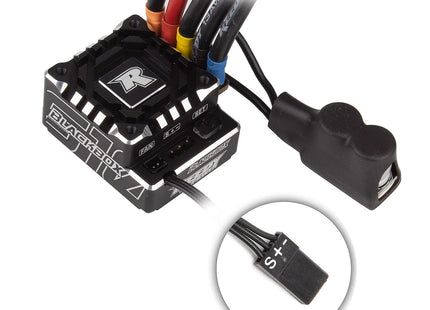

Reedy Blackbox 610R 2S Competition ESC – ASC27016
Unleash precision, power, and full control with the Reedy Blackbox 610R — Reedy’s most advanced 1/10 scale ESC yet. Built on the trusted legacy of the 510R, the 610R pushes the limits with updated 32-bit hardware, lightning-fast throttle response, and unmatched tuning capability.
Whether you're running stock or modified 1/10 scale setups, this ESC delivers championship-winning performance in both on-road and off-road racing. Pair it with the optional Blackbox PROgrammer2 (not included) to unlock full customization and data logging.
🔧 Key Features:
-
CNC-machined black aluminum case with integrated heat sink
-
Fully adjustable brake, throttle, power, and safety functions
-
Blinky mode with ROAR-approved software
-
32-bit MCU for ultra-fast response
-
Precision throttle & brake control
-
Ultra-low resistance FET board
-
On-board power button
-
Optional external fan ready
-
Pro external capacitor board
-
Firmware updateable (with PROgrammer2)
🧠 Advanced Tuning (with Blackbox PROgrammer2 – ASC27027):
-
Brake Settings: Strength, frequency, drag brake, punch, dynamic drag
-
Throttle Control: Drive frequency, current limit, punch, deadband
-
Power Delivery: Boost and top speed timing, standard & expert modes
-
Misc. Settings: BEC voltage, temp cutoff, rotation direction, mode switching
Note: Requires firmware version EE460139 on the Programmer. Already installed if purchased as the 610R/Programmer combo (ASC27017).
📦 Specs:
-
Voltage Input: 2S LiPo
-
Suggested Use: 1/10 Off-Road & On-Road
-
Resistance: 0.00043 ohms
-
Continuous Current: 160A
-
Motor Limit: 4.5T
-
Dimensions: 38.5 x 36.9 x 19.5mm
-
Weight (no wires/fan): 45g
-
BEC Output: 6.0–7.4V / 5A
-
Power Wires: 13-gauge silicone
-
Fan: Optional (not included)
