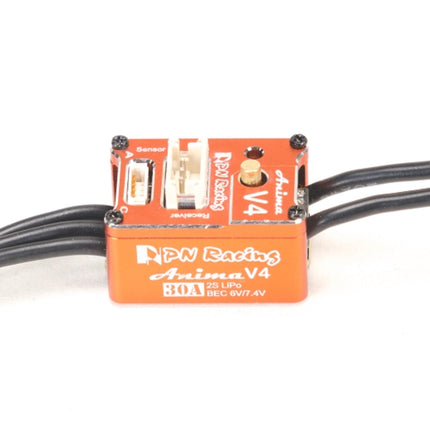

Unlock serious power in your 1/28 scale racer with the PN Racing Anima V4 30A ESC. Built ultra-small, ultra-light, and competition-ready, this sensored brushless ESC delivers massive output in a tiny package with CNC metal housing for excellent heat dissipation.
✅ Tiny Size, Big Power – Designed specifically for 1/27–1/28 scale cars
✅ 30A Continuous / 80A Peak – Handles even the hottest setups with ease
✅ Ultra Lightweight – Only 7.1g (without wires) to keep your car nimble
✅ CNC Aluminum Housing – Superior cooling and durability
✅ Fully Adjustable – Multiple programmable parameters for fine-tuned performance
Specifications:
-
Input Voltage: 2S LiPo (6.0V–8.4V)
-
BEC: 6V/7.4V 3A
-
Continuous Current: 30A
-
Peak Current: 80A
-
Motor Size Limit: 1525 / 1626
-
Motor Maximum: 10,000Kv (0° timing)
-
Size: 19.5 × 13.7 × 11.0mm (excluding plug)
-
Weight: 7.1g (without wires)

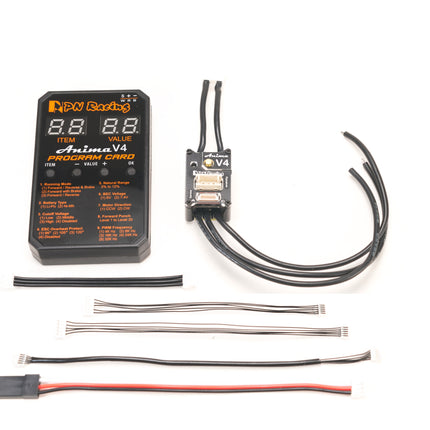

Package Includes:
-
(1) Anima V4 30A ESC
-
(1) 80mm Motor Sensor Wire (PN Anima Motors #500822)
-
(1) 100mm Motor Sensor Wire (PN Anima Motors #50085)
-
(1) 125mm Motor Sensor Wire (Atomic / Hobbywing / MWX motors)
-
(1) Wire Connector (ESC to Receiver #500826)
-
(1) JST2.0 Female Plug to 2S LiPo Battery Adapter
Compact, powerful, and built for racers — the PN Racing Anima V4 ESC is the ultimate upgrade for serious Mini-Z competitors.
