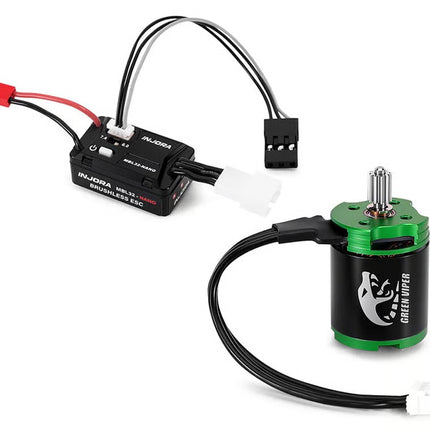

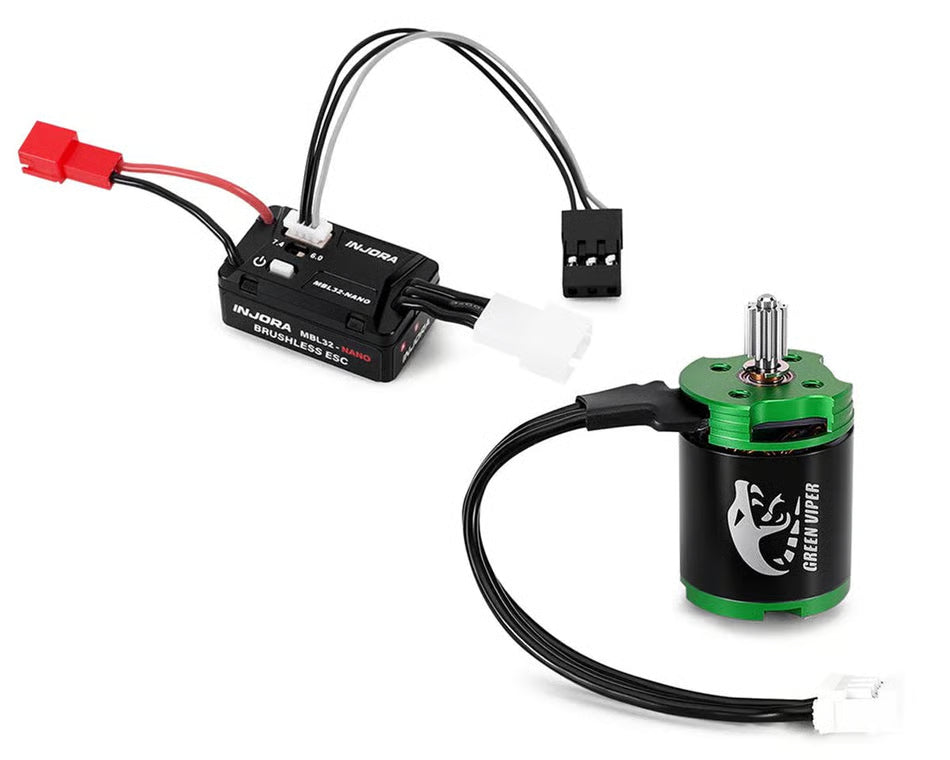

Transform your Axial SCX30 with the Injora MBL32-NANO Brushless ESC and Green Viper 1621 Motor Combo. This compact brushless system delivers whisper-quiet operation, ultra-smooth throttle control, and powerful climbing performance designed specifically for micro crawling.
With refined low-speed control and strong torque when needed, this combo gives your SCX30 the precision and power to conquer technical terrain.
🧗 Purpose-Built Brushless Power
Designed specifically for the Axial SCX30, this combo combines a compact waterproof ESC with the high-torque Green Viper 1621 outrunner motor. The system provides extremely smooth throttle response and quiet operation, giving you greater control while navigating rocks, roots, and steep climbs.
⚡ Compact ESC with Advanced Control
The MBL32-NANO ESC features a tiny footprint while delivering strong performance:
-
25A continuous / 45A burst current
-
Adjustable 6V or 7.4V BEC
-
Waterproof design for all-weather crawling
-
PC programmability via USB
This small but powerful ESC keeps your crawler responsive while maintaining clean wiring and minimal weight.
🏁 High-Torque Green Viper Motor
The included 1621 Green Viper brushless outrunner motor features a 12-pole design that produces smooth low-speed rotation and strong torque for technical crawling situations.
It provides:
-
Smooth low RPM control
-
Powerful climbing torque
-
Quiet operation compared to brushed motors
⚡ Features
-
Designed specifically for the Axial SCX30 micro crawler
-
Whisper-quiet brushless operation
-
Ultra-smooth and linear low-speed throttle response
-
Strong power for climbs and acceleration
-
Compact lightweight ESC design
-
Waterproof ESC for all-weather performance
-
High-torque 12-pole 3600kV outrunner motor
-
Adjustable 6V / 7.4V BEC with 3A output
-
Reinforced motor wiring with protective sleeve
📦 Includes
-
(1) MBL32-NANO Brushless ESC
-
(1) Green Viper 1621 Brushless Outrunner Motor
📊 ESC Specifications
-
Application: 1/30 Rock Crawler
-
Motor Type: Brushless Sensorless
-
Input Voltage: 2–3S LiPo
-
Continuous Current: 25A
-
Burst Current: 45A
-
BEC Voltage: 5.5V / 7.4V
-
BEC Current: 3A
-
Battery Connector: PH2
-
Programming: PC via USB
📊 Motor Specifications
-
Motor Type: Brushless Sensorless
-
kV Rating: 3600kV
-
Poles: 12
-
Slots: 9
-
Input Voltage: 2S LiPo recommended
-
Output Shaft: 1.7mm
-
Dimensions: 15.5 × 21.5mm
-
Weight: 14.9g
⚠️ Note: Due to the motor’s kV rating, this system should be used with 2S LiPo batteries only.
A standalone receiver is required to complete installation.
For SCX30 owners looking for quiet operation, smooth control, and serious crawling power, the Injora Green Viper brushless combo is a massive performance upgrade.
