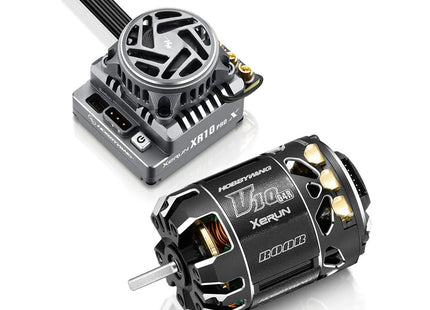

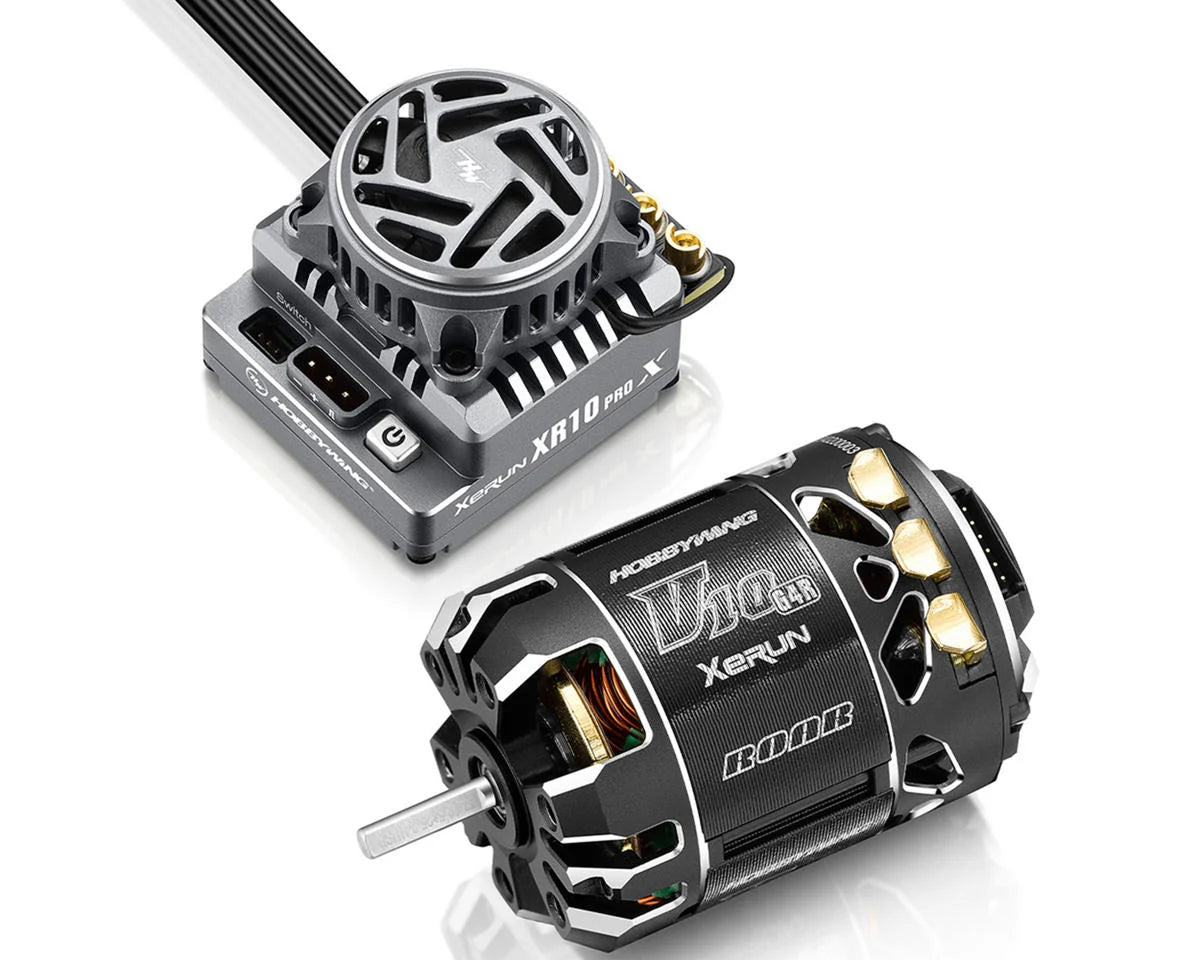

🔥 Hobbywing XR10 Pro G3X Stock Spec Sensored Brushless ESC/V10 G4R Motor Combo (21.5T) – Engineered for Ultimate Stock-Class Precision!
💡 Top-Tier ESC & Motor Combo for 1/10 Stock-Class Control and Consistency
Built for elite stock-class racing, the Hobbywing XR10 Pro G3X ESC paired with the V10 G4R 21.5T motor delivers efficient, controllable power with class-leading smoothness and low temps. Designed with Hobbywing’s exclusive trade secret tech, this ESC maximizes output while minimizing heat — giving racers a consistent edge from tone to tone.
🏁 The 21.5T G4R motor offers ultra-low resistance, tight tolerances, and excellent thermal management with advanced cooling features — perfect for drivers in on-road, off-road, or spec-class disciplines.
✨ Key Features:
⚡ 160A Continuous Current ESC – Race-proven efficiency and current handling
🧊 Trade Secret Technology – Low temps, smooth power, improved response
🛠️ 3 Customizable Racing Profiles – Tweak for off-road, on-road, or carpet setups
📈 Built-in Data Logging – Track throttle, RPM, temp, voltage, and more
🛡️ Multiple Safety Layers – Overheat protection, low-voltage cutoff, failsafe
🌬️ Exposed Stator & Large Vents – Enhanced airflow for cooler motor temps
🔄 Dual Sensor Ports – Flexible and clean install options
🏆 Spec-Class Focused – Ideal for 1/10 scale stock racing (21.5T legal)
📊 Specifications:
ESC: Hobbywing XR10 Pro G3X Stock Spec 160A ESC
-
Application: 1/10 Stock Off-Road, On-Road, F1, Drift
-
Motor Support: Sensored/Sensorless Brushless
-
Input: 2S LiPo only
-
Current: 160A continuous / 1200A peak
-
Dimensions: 35 x 33.6 x 30.3mm
-
Weight: 101.5g
-
BEC: 5-7.4V adjustable / 5A continuous
-
Programming: Via OTA Bluetooth or LCD Program Box Pro
Motor: Hobbywing V10 G4R 21.5T Sensored Brushless Motor
-
Application: Stock-Class 1/10 Vehicles
-
KV: 2200KV
-
Voltage: 1–2S LiPo
-
No Load Current: 3.4A
-
Power Output: 156W
-
Size: 51.3mm length x 35.8mm diameter
-
Shaft: 13.9mm long / 3.18mm diameter
-
Weight: 158g
-
Poles: 2
-
Connector: Solder tabs
⚙️ Tech Notes:
-
Programmer Required: Use OTA Bluetooth module or LCD Program Box Pro to unlock full tuning potential
-
⚠️ No Reverse Polarity Protection: Always check polarity before connecting power
📦 What’s in the Box?
✔ (1) Hobbywing XR10 Pro G3X 160A Stock Spec Sensored ESC
✔ (1) Hobbywing V10 G4R 21.5T Sensored Brushless Motor
✔ (1) User Manual
🏁 Dominate Spec Racing with Confidence and Control!
Whether you're racing 1/10 scale off-road, touring, or pan car, the XR10 Pro G3X + G4R 21.5T combo gives you a cool-running, precisely tuned, and consistently dominant setup for modern stock-class performance.
💨 Upgrade now and experience smoother launches, tighter throttle control, and podium-ready power!
