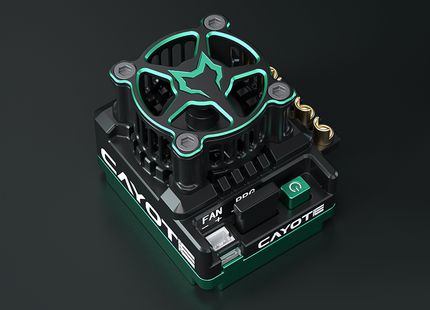

Cayote Crest X 1/10 160A Mod Competition ESC – Precision, Power, Performance
Dominate your next race with the Cayote Crest X — a pro-level, sensored ESC engineered for serious 1/10 modified-class racing. Whether you're running touring or off-road, this powerhouse delivers clean, efficient control and extreme tuning flexibility.
🔥 Featuring a massive 48° boost/turbo timing window, advanced data logging, and 33+ programmable parameters, the Crest X is the ultimate weapon for racers who demand it all — power, protection, and performance.
✨ Key Features:
⚡ 160A Continuous Current – Reliable, race-ready power for mod-class performance
📊 Super Large 48° Boost & Turbo Timing – Insane top-end speed and quick throttle response
📊 Offline Data Logging – Review ESC performance via the Cayote Xlink Program Box (sold separately)
🎛️ 33+ Adjustable Parameters – Full control over throttle, brake, timing, BEC, and more
🛡️ Multiple Protection Modes – Includes thermal, over-current, low-voltage, and more
🔀 Professional Reversing Shutdown – Safer direction changes and extra control on tight courses
💨 Advanced Cooling System – Improved airflow and thermal regulation for long mains
🔋 High-Efficiency BEC – 6.0V/7.4V adjustable output at 5A continuous, 8A peak
📦 What’s in the Box?
✔️ (1) Cayote Crest X 160A ESC
✔️ (1) Glitch Buster
✔️ (1) Capacitor
✔️ (2) Sensor Cables
✔️ (5) 13AWG Wire Connectors (4x Black, 1x Red)
✔️ Heat Shrink Tube Set & Mounting Tape
✔️ Instruction Manual
📊 Specifications:
-
Application: 1/10 Touring & Off-Road (Modified)
-
Motor Type: Sensored/Sensorless Brushless
-
Input Voltage: 2S LiPo (7.4V)
-
Continuous Current: 160A
-
Peak Current: 1100A
-
BEC Output: 6.0V / 7.4V @ 5A (8A peak)
-
Motor Limits:
• Touring Car: >4.5T
• Off-Road: >5.5T
-
Size: 37.9 x 31.4 x 30mm
-
Weight: 55g
-
Connectors: Solder Tabs
-
Programmable: Yes (Cayote Xlink LCD Box or BTune App)*
📌 Tech Note: To access performance logs and ESC settings, use the Cayote Xlink LCD Program Box (CYECPB01) or pair with the BTune Bluetooth Module (CYECBM01) to connect via the Cayote Team App.
🏎️ Tuned to Win – Trusted by Pros
The Crest X brings raw power and deep customization to your setup. Race smarter, faster, and cooler with Cayote’s most advanced ESC yet.
💡 Crush the Competition – Upgrade to Cayote Crest X Today!
