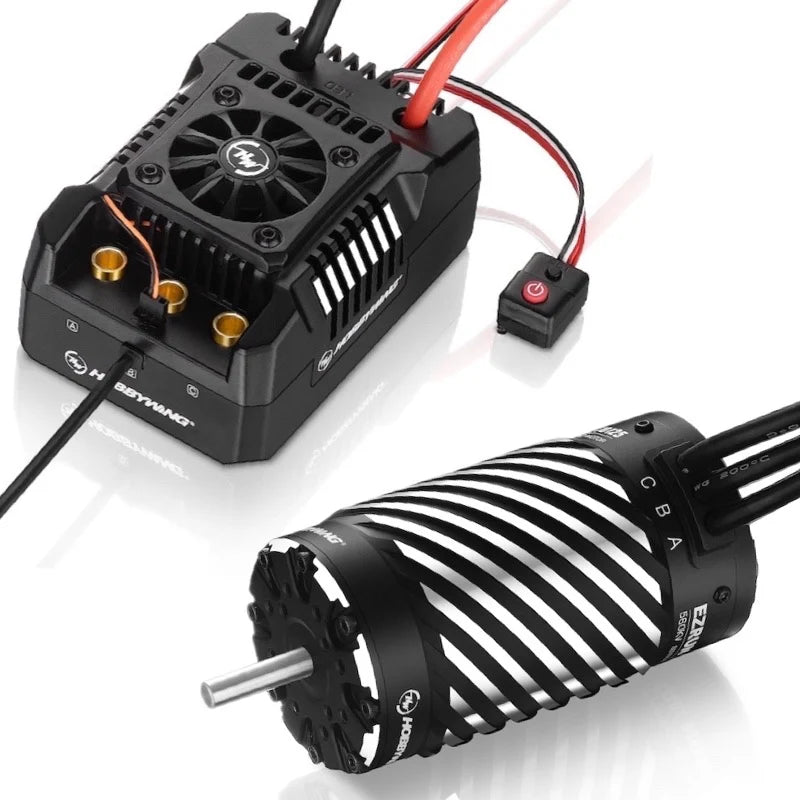

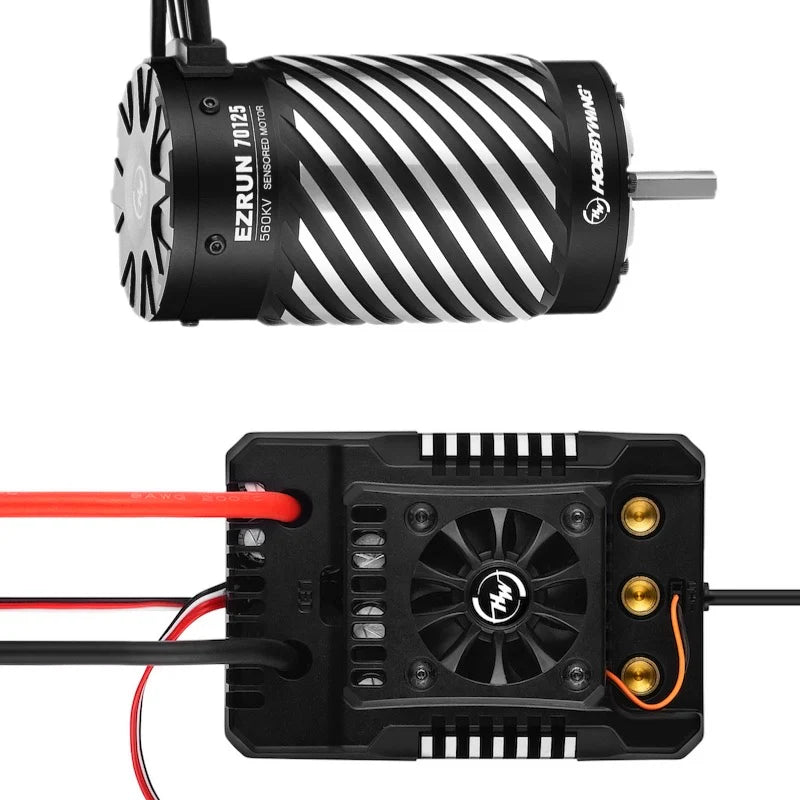

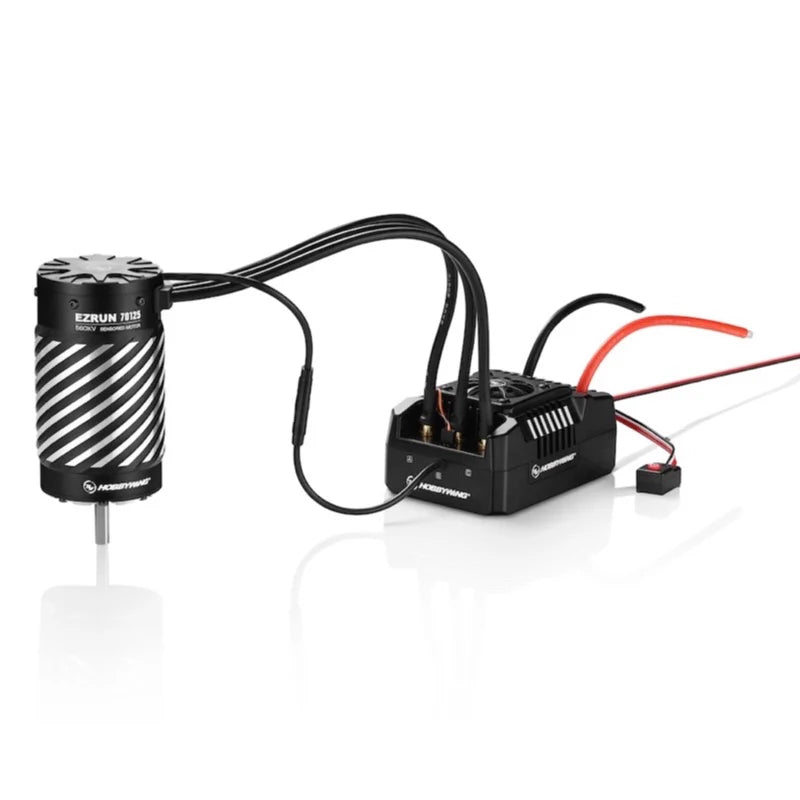

Hobbywing EZRUN MAX4 Brushless ESC & 70125 560KV Motor Combo – 1/4 & 1/5 Scale Powerhouse!
🔥 The Ultimate High-Voltage Brushless Combo for Large-Scale RCs!
🚗💨 Take your 1/4 and 1/5 scale RC vehicles to the next level with the Hobbywing EZRUN MAX4 Brushless ESC & 70125 560KV Motor Combo! Designed for heavy-duty off-road trucks, truggies, and monster vehicles, this high-voltage system delivers incredible torque, extreme power, and cutting-edge protection features to handle even the most demanding terrains.
🏆 Whether you're tearing through sand, snow, mud, or rocky terrain, this sensorless brushless system provides smooth acceleration, consistent power delivery, and extreme durability for the world’s largest RC vehicles!
✨ Key Features:
-
⚡ Extreme 300A Continuous / 2000A Peak Current – Unleashes massive power for large-scale vehicles
-
🔋 6-12S LiPo Compatibility – Supports high-voltage setups for extreme performance
-
🔥 70125 560KV Four-Pole Brushless Motor – Delivers incredible torque and top speed
-
🛠️ Waterproof & Dustproof Design – Handles mud, snow, and extreme weather conditions
-
💨 Built-in Fireproof Circuitry – Prevents electrical damage and enhances safety
-
📊 Real-Time Data Logging – Monitor performance using the HW LINK app (OTA Bluetooth module required)
-
🔩 Ultra-Powerful Switch Mode BEC (10A Continuous, 25A Burst) – Adjustable 6V/7.4V/8.4V output
-
🚀 Advanced Protection Features – Includes low-voltage cutoff, thermal safeguards, signal loss, and current protection
📦 What’s in the Box?
-
(1) Hobbywing EZRUN MAX4 ESC
-
(1) Hobbywing EZRUN 70125 560KV Brushless Motor
-
(1) Double-Sided Tape
-
(2) Heat Shrink Tubes
-
(1) User Manual 📖
-
(1) Hobbywing Decal Sheet
📊 Motor Specifications – Hobbywing EZRUN 70125 560KV
-
Part Number: 30402850
-
Poles: 4
-
KV Rating: 560KV
-
No-Load Current: 3.6A
-
Resistance: 0.0050Ω
-
Motor Dimensions: 70mm (2.76") x 125mm (4.92")
-
Shaft Diameter & Length: 8mm (0.315") x 30mm (1.181")
-
Weight: 1995g
-
LiPo Compatibility: 8-12S LiPo
-
Recommended ESC: Hobbywing MAX4 HV
⚡ ESC Specifications – Hobbywing EZRUN MAX4
-
Scale Compatibility: 1/4 & 1/5 Heavy-Duty Off-Road, Truck, Monster
-
Continuous/Peak Current: 300A / 2000A
-
Motor Compatibility: Sensored & Sensorless Brushless Motors
-
Input Voltage: 6-12S LiPo
-
Motor Limit (12S LiPo): ≤600KV (70125 Size Motor)
-
BEC Output: Adjustable 6V / 7.4V / 8.4V, 10A Continuous, 25A Burst
-
Waterproof: Yes
-
Switch Type: Electronic
-
Capacitor Protection: Yes
-
Size (L x W x H): 125mm x 85mm x 61.7mm
-
Weight: 775.4g
📌 Tech Note: Supports LED Program Card, LCD Program Box, and OTA Programmer (optional) for ESC parameter tuning.
🏁 Conquer Any Terrain with Unmatched Power!
🔥 Built for the biggest and most powerful RC vehicles, the Hobbywing EZRUN MAX4 ESC & 70125 560KV Motor Combo delivers unrivaled durability, extreme torque, and high-speed performance for off-road monsters, truggies, and heavy-duty RC trucks.
💨 Upgrade now and experience the world’s most powerful RC system! 🏆🏁
