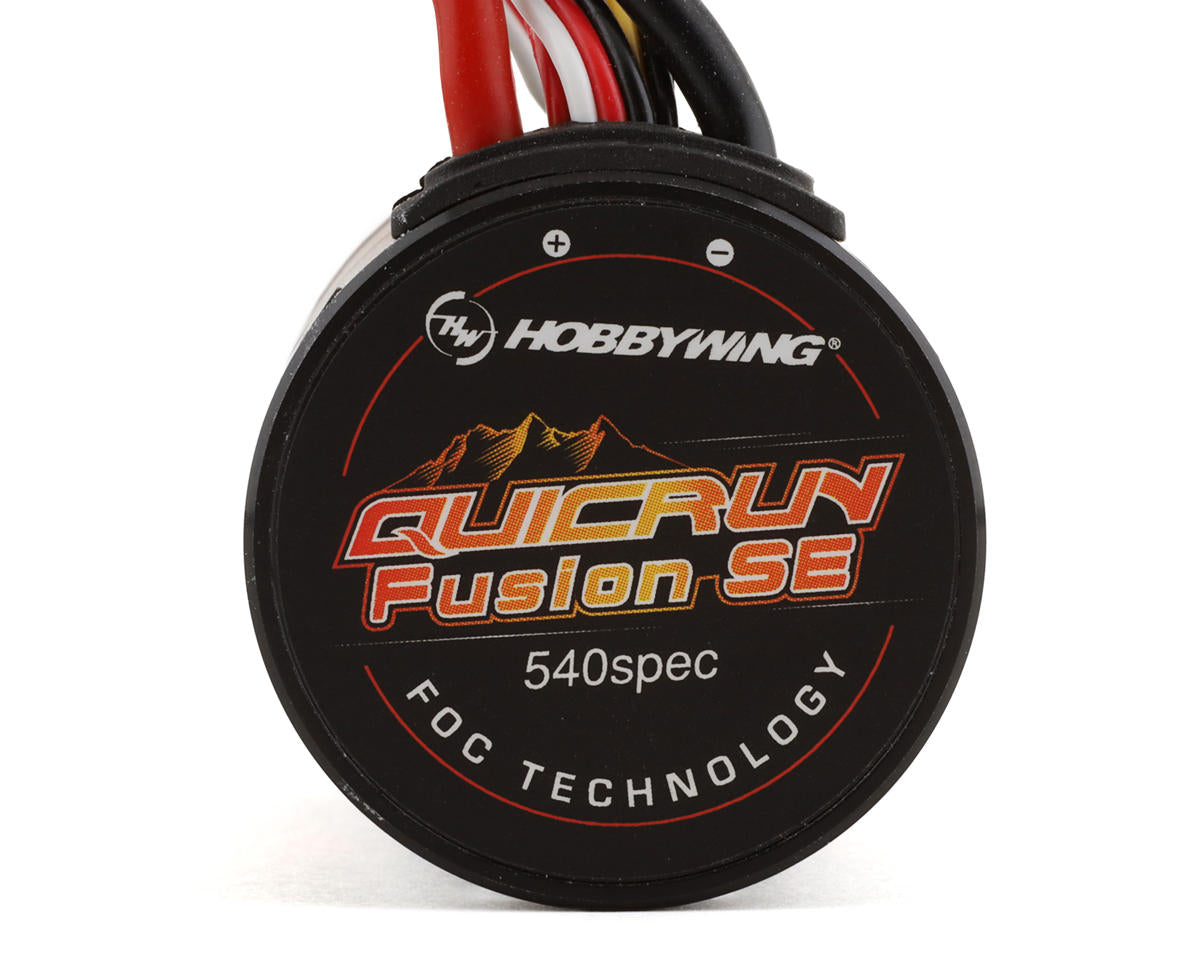

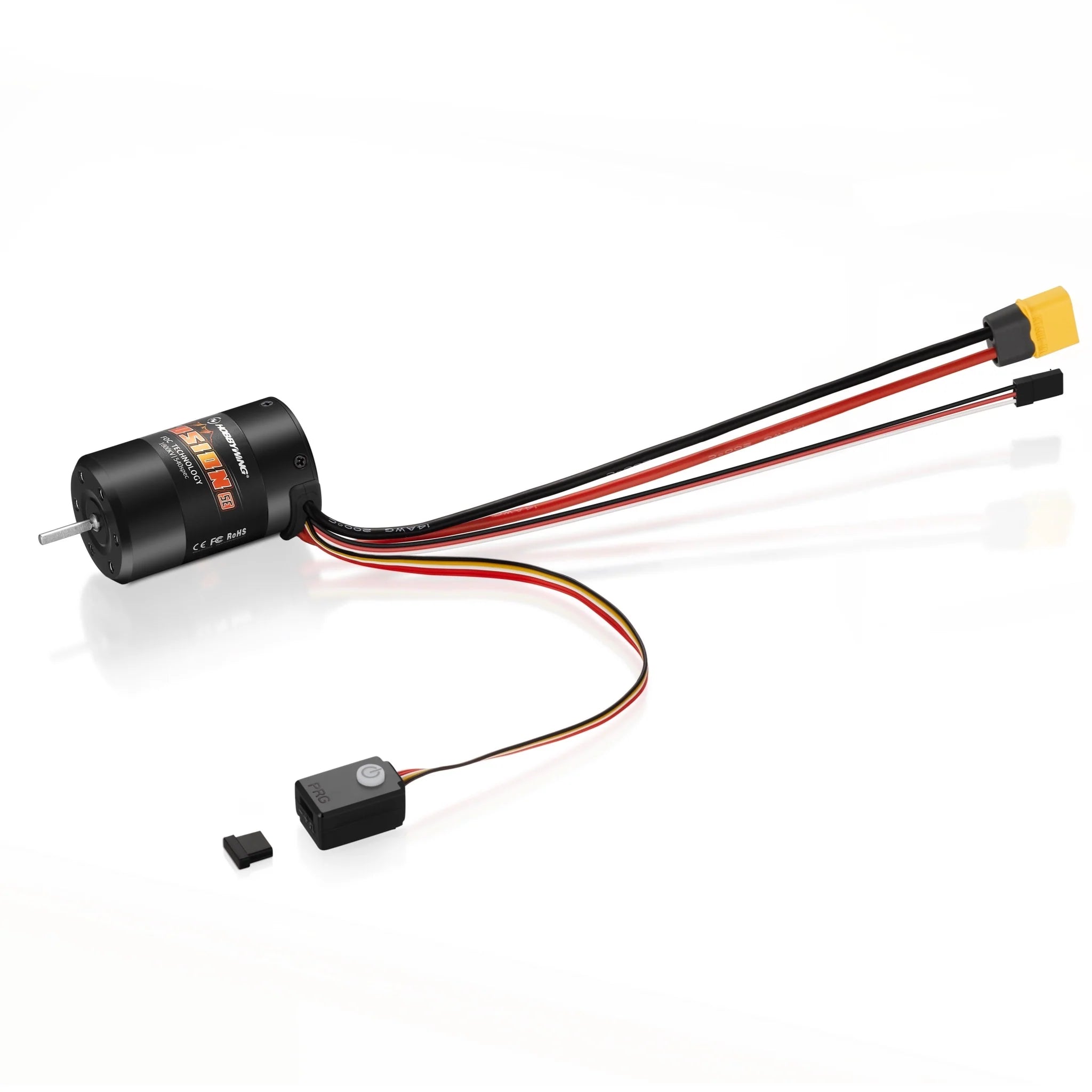

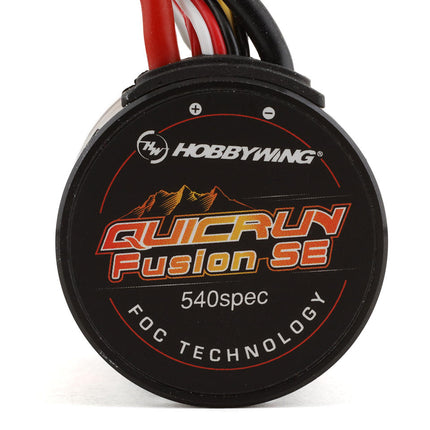

Simplify your crawler build while gaining incredible control with the Hobbywing QuicRun Fusion SE FOC 2-in-1 System. This integrated ESC and brushless motor combo delivers ultra-smooth throttle response, strong low-speed torque, and a compact installation perfect for modern scale crawlers and trail trucks.
Powered by FOC (Field-Oriented Control) technology, the Fusion SE offers unmatched smoothness and precision when navigating technical terrain.
🧗 Built for Crawling Performance
The Fusion SE is designed specifically for 1/10 rock crawlers and trail trucks, delivering exceptional low-speed control and smooth startup behavior. FOC driving mode produces strong torque and precise throttle modulation, giving you the confidence to tackle steep climbs, tight rock sections, and technical obstacles.
Integrated cruise control and hill descent features further improve drivability on difficult terrain.
⚡ Compact 2-in-1 Design
By combining the ESC and motor into a single unit, the Fusion SE dramatically simplifies wiring and installation.
Benefits include:
-
Reduced wiring clutter
-
Easier chassis layout
-
Lower overall weight
-
Cleaner installation
Perfect for scale builds where space and simplicity matter.
🌧 Waterproof & Trail Ready
With an IP67 waterproof rating, the Fusion SE is ready for harsh outdoor environments. Mud, snow, water crossings, and dusty trails are no problem for this sealed electronics system.
🏁 Features
-
Integrated ESC and motor design
-
Advanced FOC technology for ultra-smooth control
-
Excellent low-speed torque and throttle precision
-
Sine wave drive for quieter and more efficient operation
-
Intelligent torque output and speed control
-
Cruise control and hill descent capability
-
Adjustable active drag brake
-
Multiple protection systems for reliability
-
IP67 waterproof and dustproof design
-
Compatible with Hobbywing LED program box
📦 Includes
-
(1) Hobbywing QuicRun Fusion SE FOC 2-in-1 ESC & Motor System (1200kV)
📊 Specifications
-
Application: 1/10 Rock Crawler / Trail Truck
-
Motor Type: Brushless (Integrated ESC)
-
kV Rating: 1200kV
-
Voltage Input: 2–3S LiPo / 6–9 Cell NiMH
-
Continuous Current: 40A
-
Motor Diameter: 36mm
-
Motor Length: 58.1mm
-
Shaft Diameter: 3.175mm
-
Shaft Length: 16.5mm
-
Motor Poles: 4
-
Waterproof Rating: IP67
-
Connector: XT60
-
Programming: Hobbywing LED Program Box (sold separately)
-
Weight: 201g (including wires & connectors)
If you're building a crawler that demands smooth control, compact electronics, and reliable trail performance, the Hobbywing Fusion SE is one of the best plug-and-play systems available.
