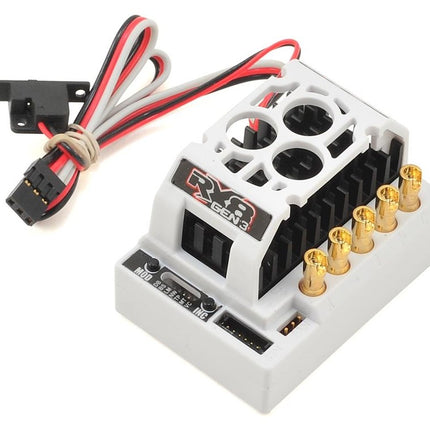

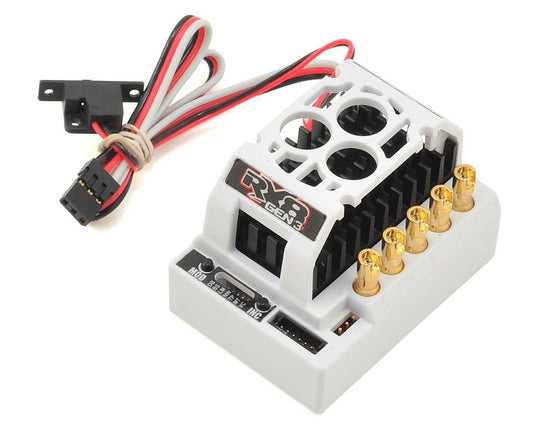

Tekin RX8 GEN3 1/8 Competition Brushless ESC (TEKTT2302)
🏁 Pro-Level Power. Proven Race Performance.
The Tekin RX8 GEN3 ESC delivers serious power handling, precision control, and race-proven reliability for demanding 1/8-scale applications. Built on the trusted RX8 platform, this next-generation ESC is packed with advanced tuning features, data logging, and seamless motor compatibility for competitive drivers.
🏁 About the RX8 GEN3
⚡ Big Power, Small Package
Designed to handle extreme power setups, the RX8 GEN3 supports up to 6S LiPo while maintaining a compact footprint that fits easily in a wide range of chassis.
🎯 Precision Control
With ultra-smooth throttle and braking response, plus adjustable torque control and frequency settings, this ESC gives you the ability to fine-tune performance exactly how you want it.
🔄 Dual Drive Mode Technology (D2)
Tekin’s D2 system allows seamless operation between sensored and sensorless brushless motors, delivering smooth startup with the power of sensorless operation.
📱 Advanced Tuning & Data
Built-in data logging and HotWire 3.0 Bluetooth compatibility allow for wireless tuning, real-time adjustments, and firmware updates—right from your device.
🔧 Key Features
✔ Handles up to 6S LiPo power
✔ HD gold-plated solder posts for easy wiring
✔ Adjustable torque control
✔ Adjustable throttle & brake frequencies
✔ High-voltage programmable BEC (6.0V / 7.4V @ 8A)
✔ Ultra-smooth throttle and braking response
✔ D2 Dual Drive Mode (sensored & sensorless)
✔ Built-in data logging capability
✔ HotWire programming & Bluetooth connectivity
✔ On-board temperature indicator
✔ One-touch radio calibration
✔ Compact, easy-to-mount design
📊 Specifications
-
Input Voltage: 2–6S LiPo / 4–16S NiMH-NiCD
-
BEC Output: 6.0V / 7.4V @ 8A
-
Max Current: 300A per phase*
-
Burst Current: 1000A per phase*
-
Motor Limits (Brushless):
- 2S: No Limit
- 3S: 4000kV
- 4S: 3500kV
- 5S–6S: 2200kV
-
Dimensions: 1.5 x 2.2 x 1.4" (38 x 55.8 x 35.5mm)
-
Weight: 2.7oz (76.5g)
🚗 Recommended Applications
- 1/8 4WD Buggy
- 1/8 4WD Truggy
- 1/8 4WD Monster Truck
- 1/8 GT / Touring
- 1/10 4WD Short Course
- Rock Crawlers (1/10 and larger)
🏁 Power you can trust. Control you can feel.
