Overview:

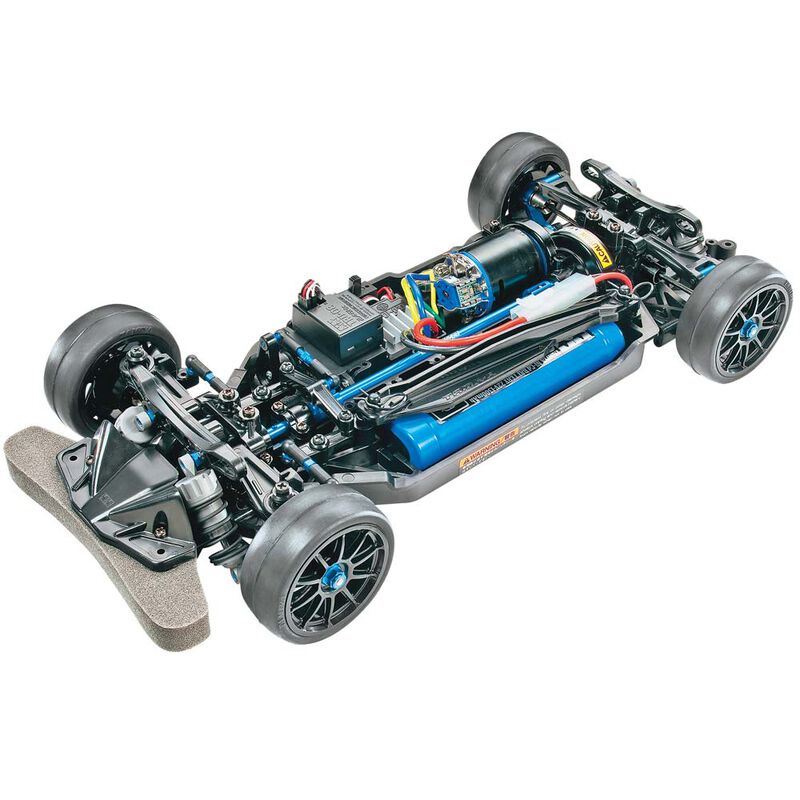

The Tamiya TT-02R 4WD Touring Car Chassis Kit is a high-performance, race-ready evolution of the popular TT-02 platform. Featuring numerous upgraded parts right out of the box, the TT-02R is designed to deliver sharper handling, improved durability, and greater adjustability for both club racing and fun high-speed runs. With its shaft-driven 4WD system, reinforced components, and blue anodized aluminum upgrades, the TT-02R offers the perfect balance of performance and value.
Features:
-
Shaft-driven 4WD TT-02R chassis kit
-
Includes upgraded parts compared to standard TT-02:
-
Full ball bearing set for smoother efficiency
-
Blue anodized aluminum drive shaft & prop joints
-
Adjustable upper arms and steering system for fine-tuning
-
High-speed gear set included
-
Oil-filled CVA shocks for consistent damping
-
Metal motor mount for durability
-
Reinforced resin components for added strength
-
Sleek blue anodized aluminum hardware adds Factory Team style
-
Tunable for different track conditions with multiple setup options
Specifications:
-
Scale: 1/10
-
Drive: 4WD shaft-driven
-
Length: 376mm
-
Width: 182mm
-
Wheelbase: 257mm
-
Chassis: TT-02R (upgraded variant)
-
Motor: Not included (540-size recommended)
Includes:
-
(1) Tamiya TT-02R 4WD Touring Car Chassis Kit
-
Upgraded hop-up parts pre-included
-
Instruction manual
Needed to Complete:
-
2-channel radio system
-
Electronic speed control (ESC)
-
540 motor
-
7.2V NiMH or 7.4V LiPo battery & compatible charger
-
1/10 scale touring car body
-
1/10 touring car wheels & tires
-
Polycarbonate paint for body
Part Number: TAM47326
⚡ Pro Tip: Pair this chassis with a low-profile servo and a sensored brushless system for the ultimate in precision and performance on the track.
