🔋⚡ Everything You Need to Power Your RC Vehicle
The Spektrum Smart PowerStage Surface Bundle combines a high-performance 3S 5000mAh Smart LiPo battery with the convenient S100 USB-C Smart Charger, making it an excellent all-in-one charging solution for RC enthusiasts. Designed to simplify charging while maximizing battery performance, this bundle takes advantage of Spektrum Smart Technology to automatically recognize battery settings, balance cells through a single connection, and even store battery health information.
Whether you're upgrading your power system or purchasing your first Smart battery, this bundle makes charging easier than ever.
🔋 About the Smart PowerStage Bundle

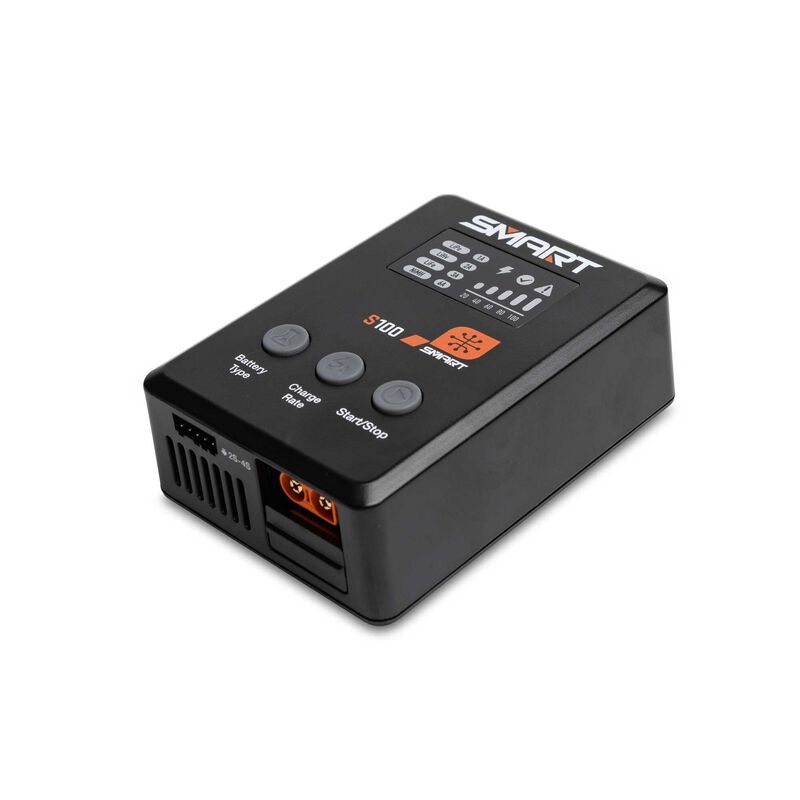

⚡ Smart Charging Made Simple
The Spektrum S100 Smart Charger automatically detects compatible Smart battery parameters and begins charging with the correct settings, eliminating complicated charger setup.
Features include:
- USB-C powered operation
- Automatic Smart battery recognition
- Single-connection charging and balancing
- Charges Smart and standard LiPo batteries
- Compatible with IC3® and IC5® connectors

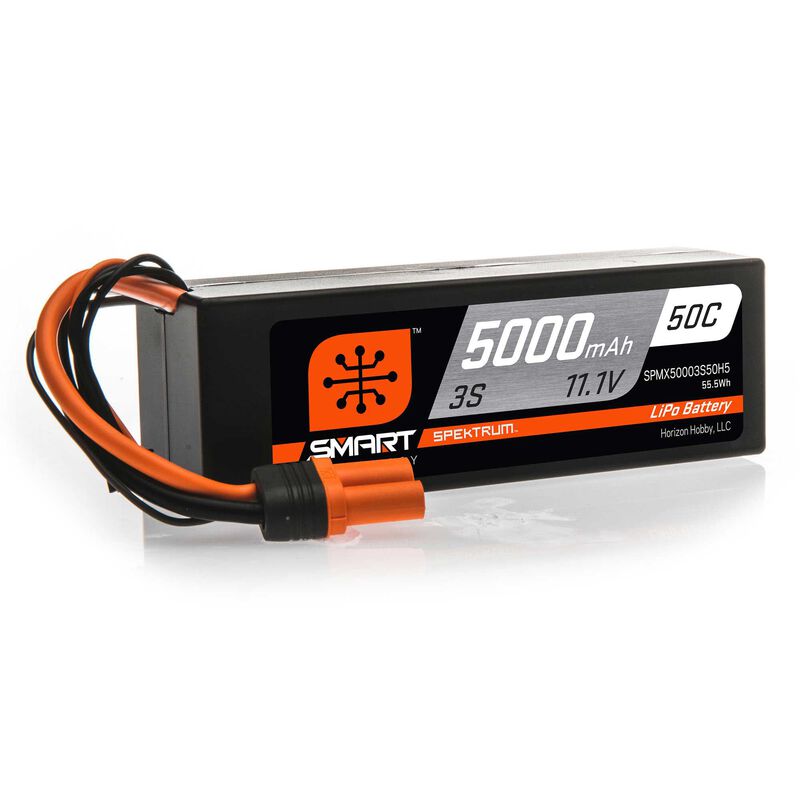

🔋 Smart 3S LiPo Battery
The included 5000mAh Smart G2 battery stores important battery information internally and works seamlessly with compatible Smart chargers.
Benefits include:
- 5000mAh capacity
- 50C continuous discharge
- Integrated Smart microchip
- Automatic Smart storage discharge capability
- Hard case construction
- IC5 connector
🛠️ Convenient & User Friendly
Designed for both beginners and experienced hobbyists, the Smart charging system simplifies battery care while helping extend battery life.
Additional charger features include:
- Up to 100W charging capability (with an appropriate USB-C power supply)
- User-selectable 1–6A charge rates
- Low-noise cooling fan
- LCD display showing available input power
- Compact workbench-friendly design
🔧 Features
✔ Spektrum Smart charging technology
✔ S100 USB-C Smart Charger included
✔ 3S 5000mAh Smart G2 LiPo battery included
✔ 50C continuous discharge rating
✔ Automatic Smart battery recognition
✔ Single-connection charging and balancing for Smart batteries
✔ Smart battery data storage
✔ Automatic storage discharge capability
✔ Compatible with IC3® and IC5® connectors
✔ Charges up to 4S LiPo, LiHV, LiFe, and Smart NiMH batteries

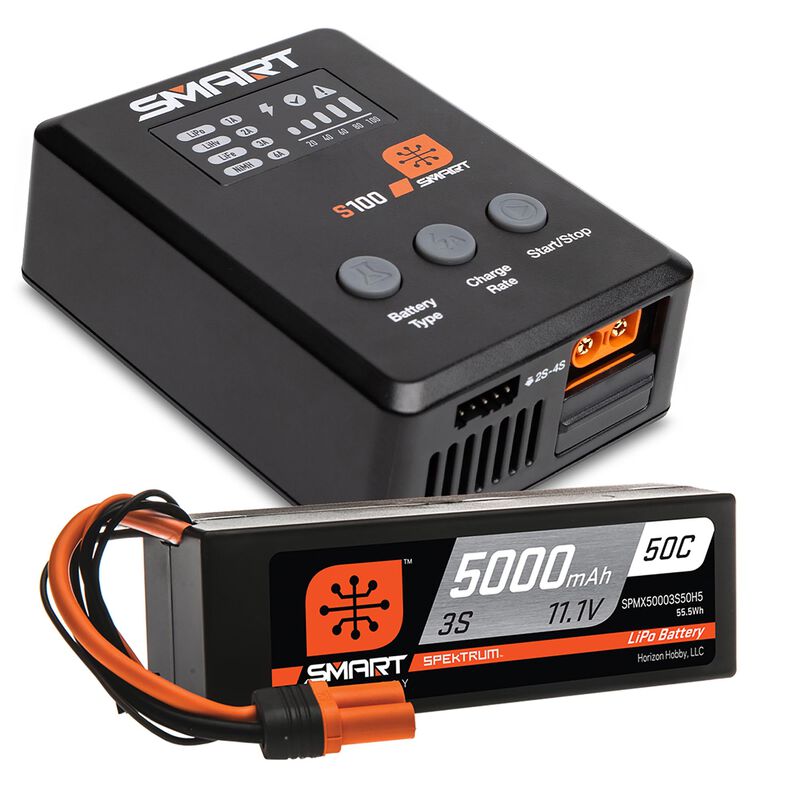

📦 Includes
- (1) Spektrum S100 100W USB-C Smart Charger
- (1) Spektrum 3S 5000mAh 50C Smart LiPo Battery (IC5)
- (1) USB-C to USB-C Cable (60W)
- Product Instruction Manual
🔋 Needed to Complete
- USB-C Power Adapter (capable of supplying the desired charging power)
📊 Specifications
|
Specification
|
Details
|
|
Battery Voltage
|
11.1V (3S)
|
|
Battery Capacity
|
5000mAh
|
|
Battery Discharge Rating
|
50C Continuous
|
|
Maximum Charge Rate
|
3C (15A)
|
|
Battery Connector
|
IC5
|
|
Balance Connector
|
XH
|
|
Battery Watt Hours
|
55.5Wh
|
|
Battery Dimensions
|
5.45 x 1.83 x 1.38in (138.5 x 46.5 x 35mm)
|
|
Battery Weight
|
10.5–14oz (300–399g)
|
|
Charger Input
|
USB-C (5–20V DC)
|
|
Charge Rate
|
1–6A Selectable
|
|
Supported Battery Types
|
LiPo, LiHV, LiFe, Smart NiMH
|
|
Maximum Cell Count
|
Up to 4S
|
🚗 Compatibility
Compatible with RC vehicles using an IC5 (or EC5-compatible) battery connector and supporting a 3S LiPo battery.
The charger is compatible with:
- Spektrum Smart G2 Batteries
- Standard LiPo Batteries
- LiHV Batteries
- LiFe Batteries
- Smart NiMH Batteries
⚠️ Notes
- USB-C power adapter is required and sold separately.
- Smart features are fully available when used with compatible Spektrum Smart batteries.
- IC3® and IC5® ports are backward compatible with EC3™ and EC5™ connectors.
- Always use the correct battery chemistry and charge settings when charging non-Smart batteries.
-
