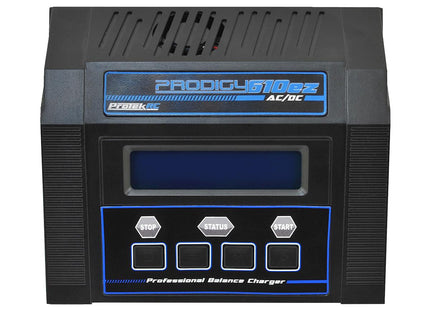

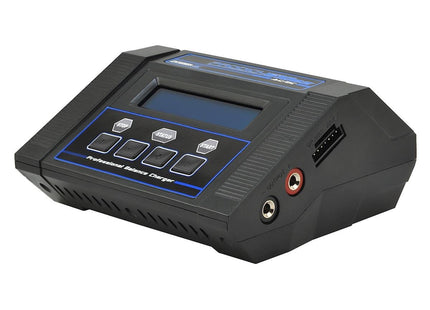

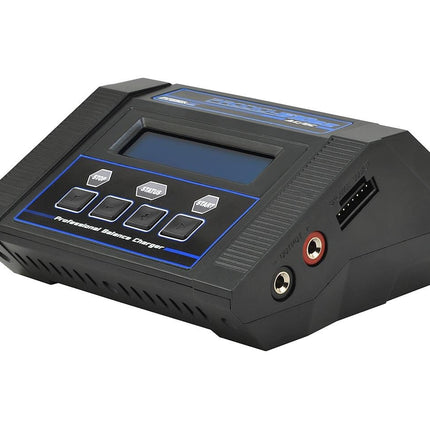

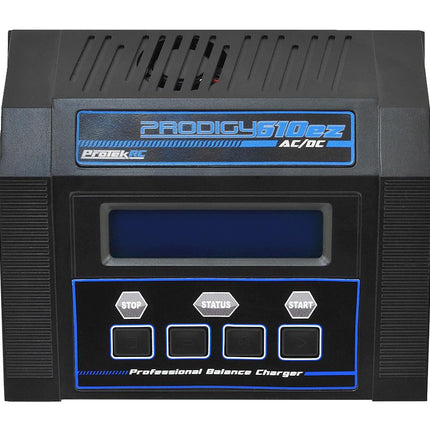

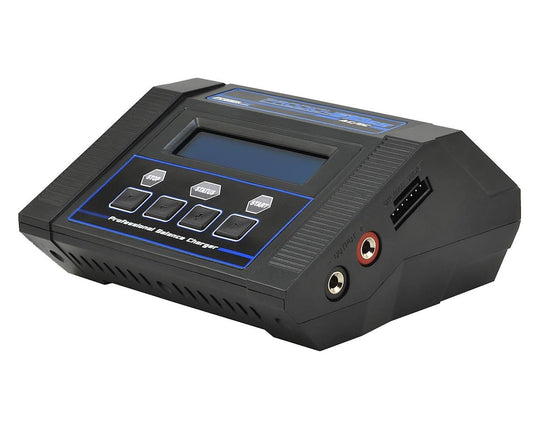

The ProTek R/C "Prodigy 610ez AC/DC" LiHV/LiPo/LiFe/NiMH AC/DC Battery Charger is a single port AC/DC charger that can handle 6S packs, is capable of 10 amp charge rates, worldwide 100V/220V voltage versatility, with 100 Watts of power... the next generation of Prodigy has arrived.
Hi-Voltage Capable This charger features a Hi-Voltage LiHV mode that allows you to safely charge Hi-Voltage LiHV capable batteries. You can adjust the charging end voltage of this mode up to 4.40V per cell, which is considerably higher than 4.20V per cell of an ordinary LiPo battery. Charging at this higher end voltage requires a Hi-Voltage LiHV capable battery, but the power gains are significant to the overall punch and power for the R/C model. But please note: battery voltages exceeding 4.20V per cell is prohibited from sanctioned racing rules, such as ROAR, IFMAR, etc.

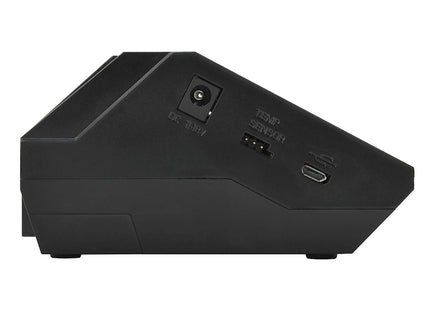

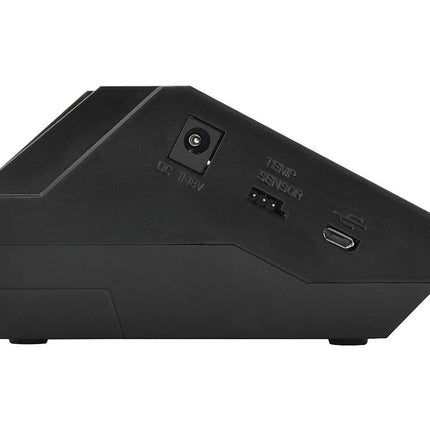

Dual Power Input The power source can be 11-18V DC input or a 100-240V AC source. With a builtin power supply, users can directly connect the AC power cord to the main AC input. The power supply can accept AC power from all over the world without the worry of damage.
Single Channel Digital AC/DC Balance Charger
Maximum 10A Charge Current, up to 100W
Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V
Supports up to 6S Lithium & 15 Cell Nickel Battery Packs
Lithium, Nickel & Lead Acid Compatible
Multiple Safety Functions
Multiple Charge Modes
Small & Lightweight Portable Design
Measure the Internal Resistance of Battery Pack
Specifications: AC Input Voltage:100V-240V DC Input Voltage:11V-18V Chemistry:LiPo, LiFe, LiHV, NiMH, NiCd,Pb Cell Count:LiPo/Li-Ion/LiFe/LiHV: 1-6S; NiMH/NiCd: 1-15 cells; Pb: 2-24V Voltage Cutoff (per cell):LiPo: 4.18-4.22V; Li-Ion: 4.18-4.20V; LiFe: 3.68-3.8V; LiHV: 4.30-4.40V Display:LCD;blue back light(non-touch) Dimensions:130x115x61mm Charge Current:0.1A-10A Charge Power:100W max. Balance Current:400mA/cell Cooling System:Fan Weight:380g Safety Timer:1-720min or off Discharge Current:0.1A-2.0A Discharge Power:5W max. Memory:10 different profiles

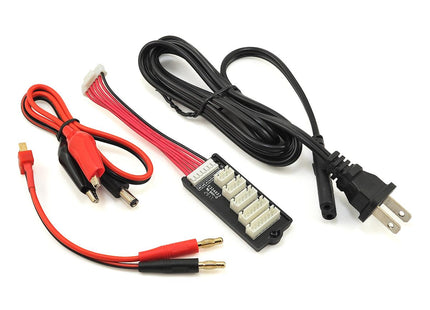

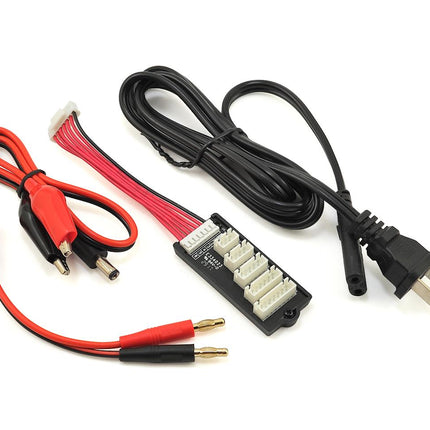

(1) Prodigy Prodigy 610ez AC/DC Charger
(1) T-Style Charge Lead
(1) DC Input Wire
(1) Balance Board
How To Calculate Your Charging Needs To determine if this charger is suitable for your application, you must perform this calculation to determine the maximum amp rate the charger can supply. Divide the Watts of the charger by the Voltage of the battery pack. This will tell you the maximum amp rate the charger can deliver (Watts / Voltage = Amps). For example, if using the Touch 625 AC and a 6S LiPo battery, you would divide 200 Watts by 22.2 Volts to realize a 9 Amp charge rate. This means that the charger can supply a maximum of 9 amps to a 22.2 Volt 6S battery. This amp rate will gradually reduce as the battery voltage increases during the charge cycle.
LiPo Battery & Charger Warnings:
1)DO NOTleave the battery in your model when charging 2)DO NOTleave unattended when charging 3)ALWAYSbalance charge the battery 4)ALWAYSuse a LiPo charging bag 5)YOU MUSTuse a Li-Poly specific charger to charge the pack (NiMH or NiCd only chargers WILL NOT WORK!) 6)YOU MUSTnot over discharge the Li-Poly battery pack 7)READ & UNDERSTANDthe instructions carefully before operating this battery
WARNING NOTE:This charger is not recommended for use with Traxxas batteries with ID connectors or Spektrum Smart batteries with IC connectors. Charging batteries equipped with ID or IC connectors may require additional steps in order to safely balance charge your Lipo batteries. Please refer to your vehicle or aircraft owner’s manual for recommended batteries and charging equipment.
