🏁⚡ High-RPM Competition Performance for 13.5T Stock Racing

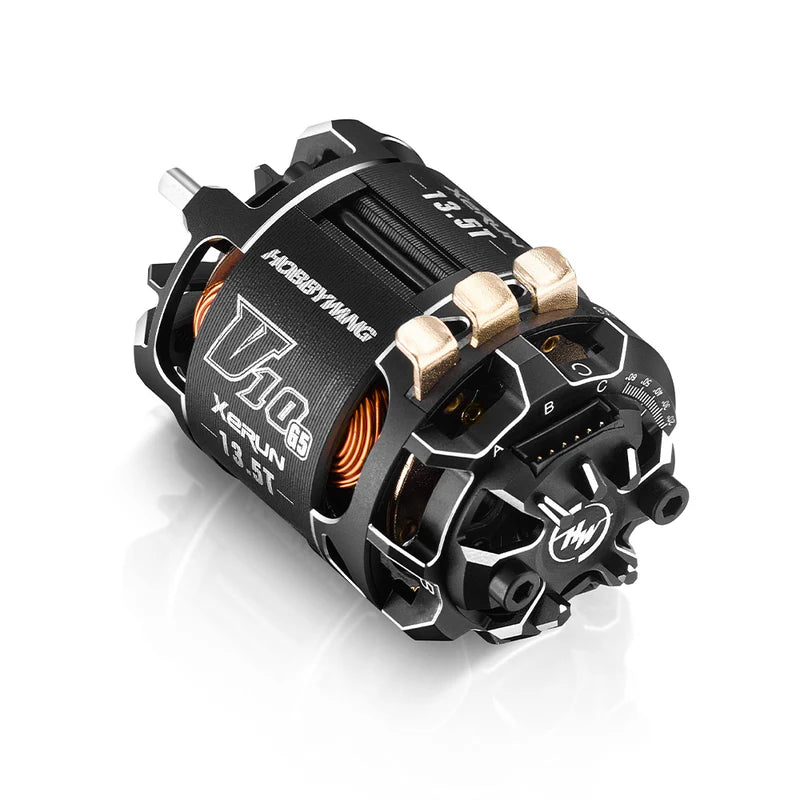

The Hobbywing XeRun V10 G5 Competition Stock 13.5T Speed Brushless Motor is engineered for racers looking for maximum speed and efficiency from their stock-class power system. The fifth-generation V10 platform delivers increased output power, improved thermal performance, optimized weight distribution, and extensive tuning capability for serious competition use.
This Speed configuration is designed to favor higher-RPM performance and top-end power, making it particularly well suited to larger, faster layouts where carrying speed and maximizing straightaway performance are critical.
🏎️ About the XeRun V10 G5
🚀 13.5T Speed Performance
Rated at 4000Kv, the Speed version of the 13.5T G5 is designed to emphasize RPM and top-end performance. Compared with the Torque configuration, it's an excellent choice for racers competing on faster layouts where maintaining momentum and maximizing speed are priorities.
🎯 Advanced Tunability
Adjustable Hall timing and Hall sensing distance allow racers to fine-tune the motor's throttle response and power characteristics. This additional adjustability makes it possible to optimize performance around gearing, ESC settings, track conditions, and driving style.
❄️ Improved Cooling & Efficiency
The redesigned G5 motor structure improves heat dissipation and overall efficiency compared with the previous generation. Its lightweight construction and optimized center of gravity also help reduce unnecessary weight while maintaining consistent performance throughout demanding race conditions.
🔧 Modular Construction
A modular design makes servicing and maintenance easier, helping racers keep the motor operating at peak performance throughout the racing season.
🔧 Features
- Competition-spec 13.5T sensored brushless motor
-
Speed configuration for high-RPM performance
- 4000Kv rating
- Increased output power over the previous generation
- Improved efficiency and thermal performance
- Lightweight design with optimized center of gravity
- Adjustable Hall timing system
- Adjustable Hall sensing distance
- Advanced cooling design with improved heat dissipation
- Modular construction for easier maintenance
- 2-pole competition motor design
- Designed for 2S operation
📦 Includes
- (1) Hobbywing XeRun V10 G5 Competition Stock Brushless Motor – 13.5T Speed
- (1) Sensor Cable
📊 Specifications
|
Specification
|
Details
|
|
Part Number
|
30401762
|
|
Motor Series
|
XeRun V10 G5
|
|
Version
|
Speed
|
|
Motor Type
|
Sensored Brushless
|
|
Turns
|
13.5T
|
|
Kv Rating
|
4000Kv
|
|
Input Voltage
|
2S
|
|
Pole/Slot
|
2
|
|
Motor Length
|
2.04in (51.9mm)
|
|
Motor Diameter
|
1.41in (35.8mm)
|
|
Shaft Diameter
|
1/8in (3.175mm)
|
|
Weight
|
4.87oz (138g)
|
🏁 Application
Ideal for 13.5T stock-class 1/10-scale racing, particularly on medium-to-large layouts where higher RPM and top-end speed are preferred.
⚠️ Notes
- This is the Speed version of the 13.5T XeRun V10 G5.
- The Speed version is rated at 4000Kv, compared with 3900Kv for the 13.5T Torque version (30401763).
- For tighter, more technical layouts where acceleration is the priority, consider the Torque version.
- Always verify your racing organization's motor regulations before competition use.
