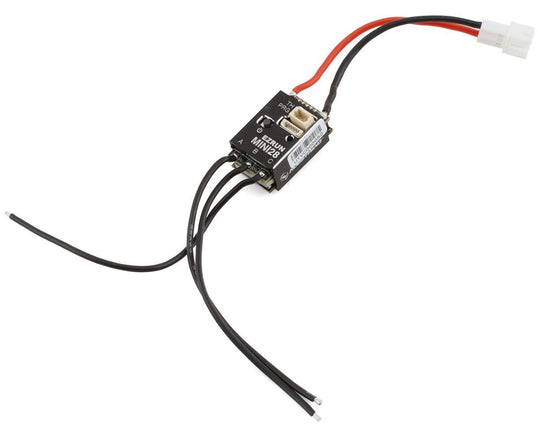

The Hobbywing EZRun MINI28 Sensored Brushless ESC delivers next-level control and tuning in a tiny footprint — purpose-built for competitive 1/28-scale racing. Don’t let the size fool you… this ESC is absolutely loaded with features normally seen only on full-size race systems.
At just 22.7 × 14.2 × 11.8mm, it fits cleanly into nearly any Mini-Z–style chassis, while the integrated aluminum heat sink keeps temps under control during hard runs. With 26 adjustable parameters, a high-voltage BEC, and OTA wireless programming (via optional module), the MINI28 gives racers every tuning edge possible.
Key Features
-
Designed specifically for 1/28-scale racing performance
-
Ultra-compact and lightweight for tight chassis layouts
-
Large integrated aluminum heat sink for temperature control
-
High-voltage adjustable BEC (6V or 7.4V, 3.5A peak)
-
Compatible with sensored and sensorless brushless motors
-
Dual-mode App support (requires optional Hobbywing OTA module)
-
Packed with 26 adjustable ESC tuning parameters
-
Ideal for Mini-Z, GL Racing, PN, and other 1/28 platforms
Specifications
-
Continuous / Peak Current: 30A / 80A
-
Motor Type: Sensored or Sensorless Brushless
-
Motor Limit: 1626 size motors
-
Battery: 2S LiPo
-
BEC Output: 6V / 7.4V adjustable, 3.5A peak
-
Dimensions: 22.7 × 14.2 × 11.8mm
-
Weight: 5g (without wires)
-
Programming: Via throttle cable or OTA module (sold separately)
Includes
-
(1) Hobbywing EZRun MINI28 Sensored Brushless ESC
-
(1) ESC Manual
-
Wiring harnesses
