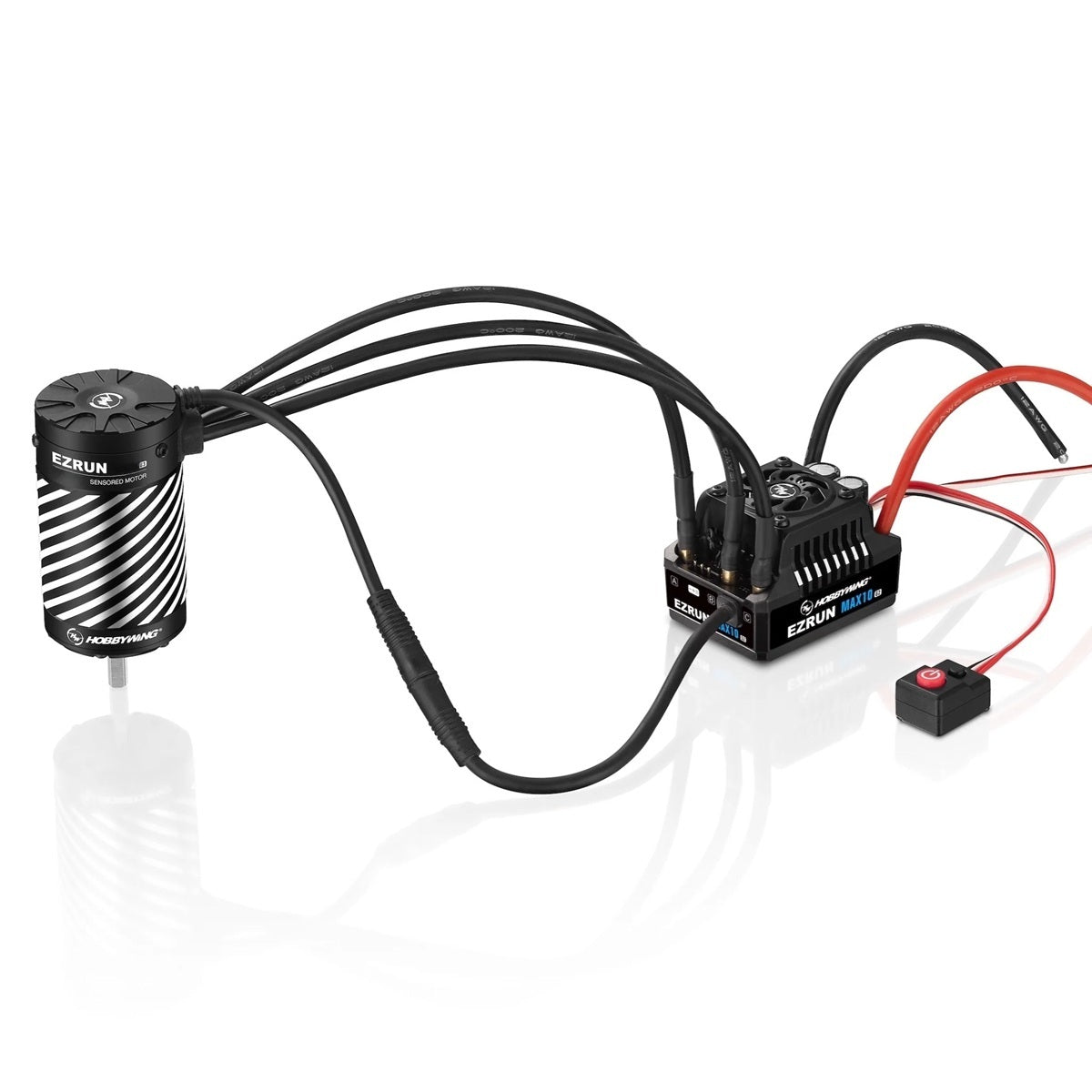

The Hobbywing EZRun MAX10 G2S Combo pairs an 80A sensored brushless ESC with the EZRun 3652SD G3 4100Kv motor for powerful, responsive performance in 1/10 scale RC applications. Designed for buggies, on-road vehicles, rally cars, and lightweight short course trucks, trucks, and monster trucks, this system supports 2S–3S LiPo power and combines Hobbywing's sensored technology with convenient wireless programming.
Built-in Bluetooth connectivity allows direct access to the HW LINK app for programming, data logging, and firmware updates without requiring an additional programming device.
About the EZRun MAX10 G2S Combo
Sensored Brushless Performance
The MAX10 G2S supports both sensored and sensorless brushless motors and is paired here with Hobbywing's 3652SD G3 4100Kv sensored motor.
The 4-pole motor is designed for 2S–3S operation and works with the ESC's Turbo timing capabilities for additional top-end performance.
Built-In Bluetooth Programming
Bluetooth connectivity is integrated directly into the ESC's power switch, allowing the MAX10 G2S to connect wirelessly to the HW LINK app.
From a compatible smartphone, users can adjust ESC parameters, access data logs, and perform firmware updates without an additional programming device.
Adjustable Turbo Timing
Turbo timing is adjustable up to 32°. When paired with compatible Hobbywing EZRun 3652/3665 G3 motors, Hobbywing states that maximum RPM can be increased by up to approximately 25%.
Adjustable High-Performance BEC
The integrated switch-mode BEC offers selectable 6.0V, 7.4V, or 8.4V output, allowing the system to work with standard and high-voltage servos.
Efficient Cooling
A frameless cooling fan directs airflow out the sides of the ESC while the integrated heatsink housing helps quickly dissipate heat.
Intelligent fan control activates the fan based on operating temperature, reducing unnecessary fan operation when additional cooling isn't required.
Water & Dust Protection
The ESC carries an IP67 rating, providing protection against water and dust for use in demanding RC environments.
Features
✔ MAX10 G2S 80A sensored brushless ESC
✔ EZRun 3652SD G3 4100Kv sensored brushless motor
✔ 2S–3S LiPo compatible
✔ 80A continuous / 520A peak ESC rating
✔ Sensored and sensorless motor support
✔ Built-in Bluetooth connectivity
✔ HW LINK app programming
✔ Integrated data logging
✔ Wireless firmware updates
✔ Turbo timing adjustable up to 32°
✔ Selectable 6.0V / 7.4V / 8.4V BEC output
✔ Intelligent temperature-controlled cooling fan
✔ Frameless high-airflow fan design
✔ IP67 water and dust protection
✔ Capacitor thermal protection
✔ LCD programming box compatibility
✔ XT60 battery connector installed
✔ Designed for 1/10 scale applications
Includes
- (1) Hobbywing EZRun MAX10 G2S 80A Brushless ESC with XT60 Connector
- (1) Hobbywing EZRun 3652SD G3 4100Kv Sensored Brushless Motor
- Supportive Installation Accessories
Needed to Complete
- (1) Compatible 2S–3S LiPo Battery with XT60 connection
- (1) Compatible LiPo Battery Charger
- Compatible vehicle electronics and radio system
Specifications
|
Specification
|
Details
|
|
Brand
|
Hobbywing
|
|
Part Number
|
HWI38010207
|
|
ESC
|
EZRun MAX10 G2S
|
|
ESC Type
|
Sensored / Sensorless Brushless
|
|
Continuous Current
|
80A
|
|
Peak Current
|
520A
|
|
LiPo Compatibility
|
2S–3S
|
|
BEC Voltage
|
6.0V / 7.4V / 8.4V Adjustable
|
|
BEC Continuous Current
|
5A
|
|
Battery Connector
|
XT60
|
|
ESC Dimensions
|
53 x 39.5 x 37.2mm
|
|
ESC Weight
|
125g Including Wires & Connectors
|
|
Motor
|
EZRun 3652SD G3
|
|
Motor Kv
|
4100Kv
|
|
Motor Type
|
Sensored Brushless
|
|
Motor Poles
|
4
|
|
Motor LiPo Compatibility
|
2S–3S
|
|
Motor Timing
|
0°
|
|
No-Load Current
|
5.0A
|
|
Motor Diameter
|
37mm
|
|
Motor Length
|
53mm
|
|
Shaft Diameter
|
3.17mm
|
|
Shaft Length
|
15mm
|
|
Motor Weight
|
227.9g
|
Compatibility
Designed for compatible 1/10 scale applications including:
- On-Road Cars
- Buggies
- Rally Cars
- Lightweight Short Course Trucks
- Lightweight Trucks
- Lightweight Monster Trucks
For motor selection, Hobbywing recommends:
-
2S LiPo: 3652/3665 motor below 6000Kv
-
3S LiPo: 3652/3665 motor below 4200Kv
The included 4100Kv motor falls within the listed recommendation for both 2S and 3S operation.
Notes
- Verify vehicle gearing, battery voltage, available installation space, and drivetrain capability before installation.
- Built-in Bluetooth allows programming through the HW LINK app without an additional Bluetooth programming module.
- An LCD programming box may also be used for ESC adjustments.
- Water-resistant electronics should be properly cleaned and maintained after exposure to water, mud, or debris.
