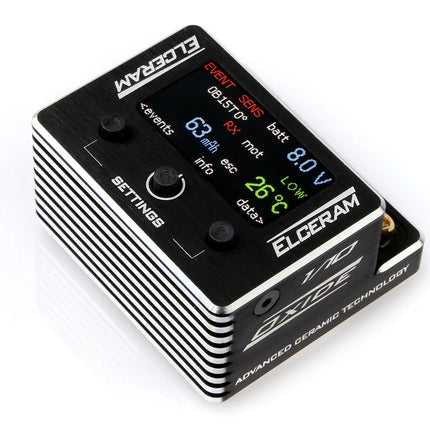

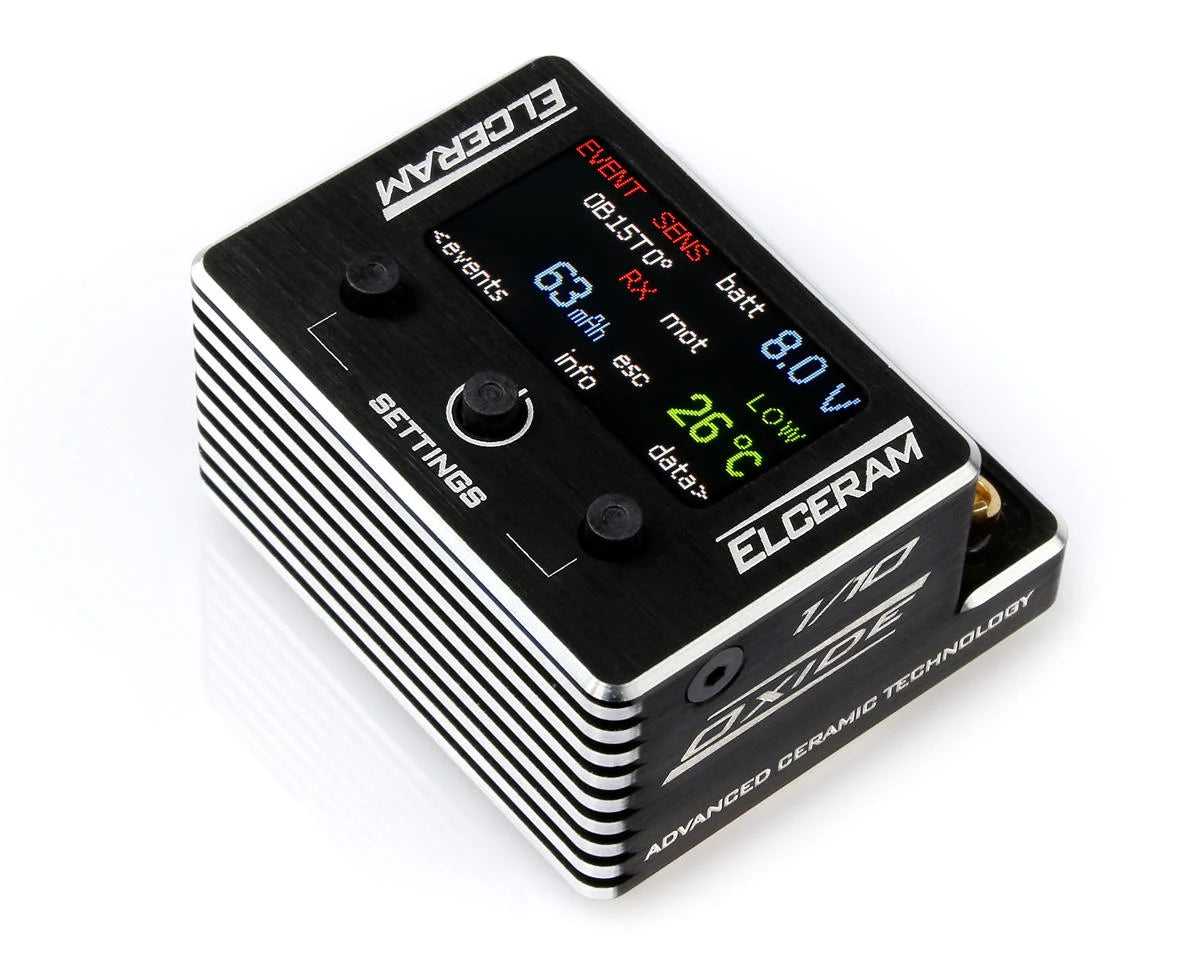

The Elceram G2 Oxide 1/10 Brushless ESC sets a new benchmark for sensored brushless control, combining advanced cooling, intelligent protection, and on-board programmability in a compact, race-ready package. Built for competitive drivers who demand precision, consistency, and reliability, the Oxide G2 delivers powerful performance without the need for external programming devices.
At the core is Elceram’s Aluminum Oxide Ceramic cooling system, designed to move heat away from the MOSFETs faster and more efficiently than traditional solutions. A built-in TFT matte color LCD display allows direct setup, monitoring, and diagnostics right on the ESC, making tuning quick and straightforward at the track.
Key Features
-
Advanced Aluminum Oxide ceramic cooling system
-
Direct MOSFET cooling for superior heat transfer and stability
-
Built-in TFT matte color LCD display
-
Simple three-button on-board programming
-
Real-time monitoring of voltage, current, temperature, and diagnostics
-
Intelligent protection algorithms for ESC and motor safety
-
Reverse polarity protection
-
Adjustable BEC voltage output 6.0–7.4V
-
Supports zero timing (blinky mode)
-
Compact and lightweight design for competitive setups
Includes
-
(1) G2 Oxide 1/10 Brushless ESC
-
(1) Set of external capacitors
-
(1) Connection wire set
-
(1) Quick start guide
Specifications
-
Application: 1/10 Scale
-
Motor Type: Sensored Brushless
-
Input Voltage: 2S LiPo (7.4V)
-
Continuous Current: 160A
-
Burst Current: 1500A
-
Motor Limit: 6T
-
BEC Voltage: 6.0–7.4V (adjustable)
-
BEC Current: 6A continuous / 12A peak
-
Dimensions: 1.34 × 1.44 × 0.79 in (34 × 36.5 × 20mm)
-
Weight: 1.76 oz (50g)
-
Battery & Motor Connectors: Solder type
A powerful, intelligent ESC designed for racers who want total control, clean installation, and dependable performance under extreme conditions.
