The EcoPower WP200T-TI Waterproof High Torque Brushless Servo is built for demanding RC applications where serious torque, durability, and weather resistance are required. Featuring a high-voltage brushless motor, titanium gears, and a waterproof design, the WP200T-TI delivers up to 578 oz-in of torque at 8.4V with a fast 0.09 sec/60° transit speed.
Designed for everything from 1/10 and 1/8 scale bashers to rock crawlers and other surface applications, this servo combines high-output performance with durable construction for hard-running RC builds.
About the WP200T-TI
High Torque Brushless Performance
The brushless digital motor provides smooth, efficient operation with excellent torque and response. At 6.0V, the WP200T-TI produces 467 oz-in of torque with a 0.11 sec/60° speed. At 8.4V, output increases to an impressive 578 oz-in with a 0.09 sec/60° speed.
Titanium Geartrain
A durable titanium geartrain is designed to withstand the high loads encountered in heavy bashing and crawling applications. The servo also features a 25T output shaft and includes an aluminum clamping servo horn.
Waterproof Construction
The WP200T-TI features a waterproof design rated for submersion up to 1 meter, making it well suited for crawlers, bashers, boats, and other applications where exposure to water, mud, and debris is possible.
Features
✔ High-torque brushless digital servo
✔ High-voltage 6.0V-8.4V operation
✔ Up to 578 oz-in of torque
✔ Transit speed as fast as 0.09 sec/60°
✔ Durable titanium gears
✔ Waterproof design rated for submersion up to 1 meter
✔ Aluminum middle case
✔ 25T output shaft
✔ Designed for demanding 1/10 and 1/8 scale applications
✔ Excellent option for bashers and rock crawlers
✔ Aluminum clamping servo horn included
✔ Servo mounting hardware and grommets included
✔ Lifetime Gear Warranty through AMain Hobbies
Includes
- (1) EcoPower WP200T-TI Waterproof High Torque Titanium Gear Brushless Servo
- (1) Aluminum Clamping Servo Horn

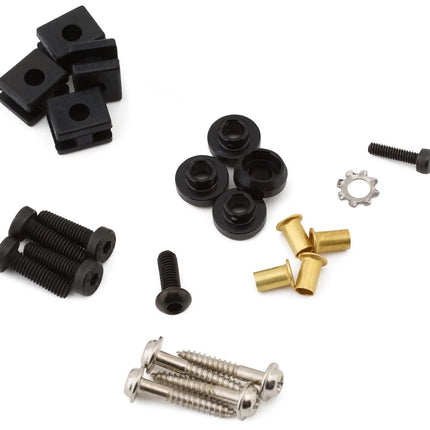

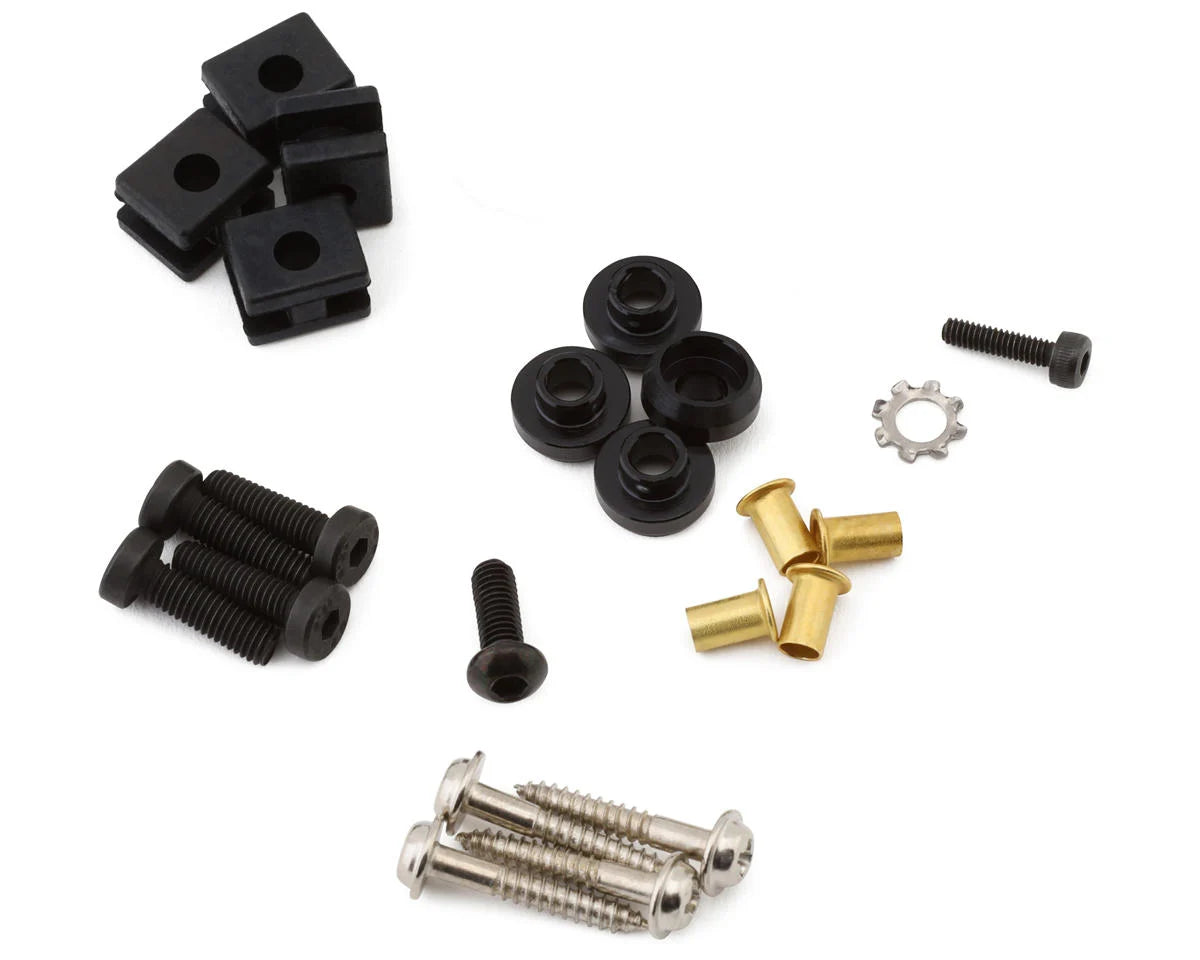

- Servo Hardware and Grommets
- Lifetime Gear Warranty
Specifications
|
Specification
|
Details
|
|
Brand
|
EcoPower
|
|
Part Number
|
ECP-200T-TI
|
|
Application
|
1/10-1/8 Scale
|
|
Motor Type
|
Brushless Digital
|
|
Operating Voltage
|
6.0V-8.4V
|
|
Speed @ 6.0V
|
0.11 sec/60°
|
|
Speed @ 8.4V
|
0.09 sec/60°
|
|
Torque @ 6.0V
|
467 oz-in (34.2 kg-cm)
|
|
Torque @ 8.4V
|
578 oz-in (41.6 kg-cm)
|
|
Gears
|
Titanium
|
|
Output Shaft
|
25T
|
|
Operating Temperature
|
14°F to 140°F (-10°C to 60°C)
|
|
Pulse/Frequency
|
1520µs / 333Hz
|
|
Dimensions
|
40.2 x 20 x 48.5mm
|
|
Bottom to Mount
|
27.5mm
|
|
Weight
|
61g
|
|
Waterproof
|
Yes – Up to 1 Meter
|
Compatibility
Compatible with:
-
ARRMA Felony 6S BLX
-
ARRMA Fireteam 6S BLX
-
ARRMA Infraction 6S BLX
-
ARRMA Infraction V2 6S BLX
-
ARRMA Kraton 6S BLX
-
ARRMA Kraton 6S EXB
-
ARRMA Limitless
-
ARRMA Mojave 6S BLX
-
ARRMA Outcast 6S BLX
-
ARRMA Typhon 6S BLX
-
Axial Capra
-
Axial SCX10 II
-
Axial SCX10 III
-
Axial SCX10 Pro
-
Element RC Enduro
-
Element RC Enduro Gatekeeper
-
Losi Baja Rey
-
Losi Baja Rey 2.0
-
Losi Hammer Rey
-
Losi Hammer Rey U4
-
Losi LMT
-
Losi LMT 2.0
-
Losi RZR Rey
-
SSD Trail King
-
Traxxas E-Revo
-
Traxxas Sledge
-
Traxxas Summit 1/10
-
Traxxas TRX-4
-
Vanquish VRD
-
Vanquish VS4-10
Notes
- Verify servo dimensions, voltage requirements, and servo horn compatibility with your specific vehicle before installation.
- Maximum listed performance requires operation at 8.4V.
- Includes a 25T aluminum clamping servo horn.
- Lifetime Gear Warranty is provided through AMain Hobbies and applies to the servo geartrain.
