⚙️💪 Premium Brushless Performance for Crawlers, Bashers & Competition Builds
The EcoPower WP715 Waterproof Low Profile High Torque Brushless Servo delivers exceptional speed, holding power, and durability in a compact low-profile package. Featuring a high-performance brushless motor, hardened steel gears, a full aluminum case, and waterproof construction, the WP715 is designed for demanding 1/10 and select 1/8-scale applications. Whether you're building a competition crawler or upgrading your basher, this servo offers outstanding precision and reliability—backed by EcoPower's Lifetime Gear Warranty through AMain Hobbies.
⚙️ About the WP715
💪 Brushless Power & Incredible Torque
Powered by a high-efficiency brushless motor, the WP715 delivers impressive steering authority with up to 715 oz-in (51.4 kg-cm) of torque at 8.4V. The brushless design runs cooler, responds faster, and provides a longer service life than traditional brushed or coreless servos.
🔩 Full Aluminum Case & Steel Gears
The rugged CNC-machined aluminum case improves strength and heat dissipation while the hardened steel geartrain is built to withstand the abuse of crawling, rock racing, and aggressive bashing. A 25T output spline and included aluminum clamping servo horn provide a secure, dependable connection.
💧 Waterproof for All Conditions
Rain, mud, snow, and water crossings are no problem thanks to the WP715's waterproof design. Built for year-round driving, it delivers reliable performance in the toughest environments.
🔧 Features
✔ High-performance brushless digital motor
✔ Low-profile design
✔ Waterproof construction
✔ High-voltage operation (6.0–8.4V)
✔ Full steel geartrain
✔ CNC-machined full aluminum case
✔ Dual ball bearings
✔ 25T output spline
✔ Includes aluminum clamping servo horn
✔ Lifetime Gear Warranty through AMain Hobbies
📦 Includes

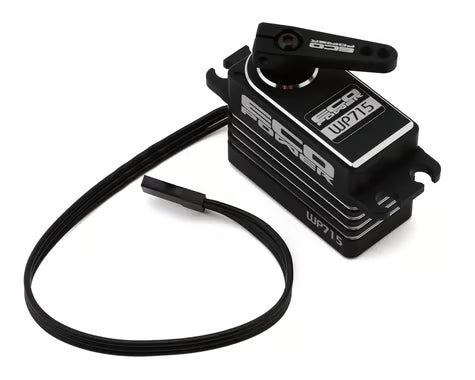

- (1) EcoPower WP715 Waterproof Low Profile Brushless Digital Servo
- (1) Aluminum 25T Clamping Servo Horn
- Servo Mounting Hardware & Grommets
📊 Specifications
|
Specification
|
Details
|
|
Part Number
|
ECP-715
|
|
Application
|
1/10 & Select 1/8 Surface
|
|
Operating Voltage
|
6.0–8.4V
|
|
Motor Type
|
Brushless Digital
|
|
Gear Material
|
Steel
|
|
Output Spline
|
25T
|
|
Case Material
|
Full Aluminum
|
|
Waterproof
|
Yes
|
|
Speed @ 6.0V
|
0.06 sec/60°
|
|
Speed @ 7.4V
|
0.055 sec/60°
|
|
Speed @ 8.4V
|
0.05 sec/60°
|
|
Torque @ 6.0V
|
530 oz-in (38.1 kg-cm)
|
|
Torque @ 7.4V
|
650 oz-in (46.0 kg-cm)
|
|
Torque @ 8.4V
|
715 oz-in (51.4 kg-cm)
|
|
Pulse/Frequency
|
1520µs / 333Hz
|
|
Dimensions
|
39.6 × 20 × 30.4mm
|
|
Weight
|
63g
|
🚗 Compatibility
Compatible with many 1/10 and select 1/8 RC vehicles, including:
- ARRMA Fury
- ARRMA Gorgon MEGA
- ARRMA Quake 223S
- ARRMA Vorteks 2WD
- Axial Capra
- Axial RBX10 Ryft
- Axial RR10 Bomber 2.0
- Axial SCX10 III
- Axial SCX10 Pro
- Axial Wraith 1.9 & 2.2
- Element RC Enduro
- GMade BOM & Komodo
- HPI Venture
- MST CFX, CFX-W & CMX
- RC4WD Trail Finder 2 & Trail Finder 3
- Redcat Ascent
- Redcat Gen9
- Redcat TC8 Marksman
- Team Ottsix Racing Wizard CompSpec C2
- Traxxas Bandit
- Traxxas Rustler 2WD
- Traxxas Slash 2WD
- Traxxas Slash Late Model
- Traxxas Slash Modified
- Traxxas Stampede 2WD
- Traxxas TRX-4
- Traxxas TRX-6
- Vanquish H10 Optic
- Vanquish VRD
- Vanquish VS4-10
⚠️ Notes
- Low-profile servo designed for vehicles requiring compact servo dimensions.
- Includes a 25T aluminum clamping servo horn and mounting hardware.
- Backed by the EcoPower Lifetime Gear Warranty through AMain Hobbies.
- Verify servo dimensions, spline count, and mounting requirements before installation.
-
