⚙️💪 High-Torque, Waterproof Performance for 1/10 RC Vehicles

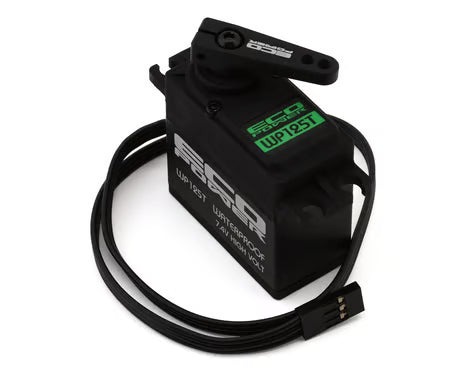

The EcoPower WP125T Waterproof High Torque Metal Gear Digital Servo is a dependable high-voltage steering upgrade for a wide variety of 1/10-scale RC vehicles. Featuring a powerful coreless motor, full metal geartrain, waterproof construction, and up to 400 oz-in of torque, the WP125T delivers the strength, speed, and durability needed for crawling, bashing, trail driving, and high-performance off-road applications. Backed by EcoPower's Lifetime Gear Warranty through AMain Hobbies, it's built to perform with confidence.
⚙️ About the WP125T Servo
💪 Powerful High-Torque Performance
Operating on 6.0–8.4V, the WP125T delivers up to 400 oz-in (28.8 kg-cm) of torque with fast transit speeds, providing strong steering authority for demanding terrain and larger tires.
🔩 Full Metal Gear Construction
The durable all-metal geartrain resists wear and damage under heavy loads while dual ball bearings and a coreless motor provide smooth, precise steering response.
💧 Waterproof Reliability
Sealed waterproof construction protects the servo from rain, mud, snow, and wet conditions, making it an excellent choice for year-round outdoor driving.
🔧 Features
✔ High-voltage digital servo (6.0–8.4V)
✔ Up to 400 oz-in of torque
✔ Full metal geartrain
✔ Coreless motor for smooth, responsive performance
✔ Dual ball bearings
✔ Waterproof up to one meter
✔ Enhanced waterproof sealing
✔ 25T output spline
✔ Includes aluminum 25T clamping servo horn
✔ Lifetime Gear Warranty through AMain Hobbies
📦 Includes
- (1) EcoPower WP125T Waterproof High Torque Digital Servo
- (1) Aluminum 25T Clamping Servo Horn
- Servo Hardware & Grommets
📊 Specifications
|
Specification
|
Details
|
|
Part Number
|
ECP-125T
|
|
Application
|
1/10 Surface
|
|
Operating Voltage
|
6.0–8.4V
|
|
Motor Type
|
Coreless
|
|
Gear Material
|
Metal
|
|
Output Spline
|
25T
|
|
Bearings
|
Dual Ball Bearings
|
|
Waterproof
|
Yes
|
|
Speed @ 6.0V
|
0.11 sec/60°
|
|
Speed @ 7.4V
|
0.09 sec/60°
|
|
Torque @ 6.0V
|
337 oz-in (24.4 kg-cm)
|
|
Torque @ 7.4V
|
400 oz-in (28.8 kg-cm)
|
|
Pulse/Frequency
|
1520µs / 333Hz
|
|
Dimensions
|
39.5 x 20 x 38.9mm
|
|
Weight
|
2.5oz (70.9g)
|
🚗 Compatibility
Compatible with many 1/10-scale RC vehicles, including:
- ARRMA Big Rock 3S BLX
- ARRMA Granite
- ARRMA Infraction MEGA
- ARRMA Infraction 3S BLX
- ARRMA Senton
- ARRMA Vorteks
- Axial Capra
- Axial SCX10 II
- Axial SCX10 III
- Losi 22S Drag
- Losi 22S SCT
- Losi Tenacity DB
- Losi Tenacity TT Pro
- Traxxas Bandit
- Traxxas Hoss
- Traxxas Rustler 2WD & 4X4
- Traxxas Slash 2WD & 4X4
- Traxxas Stampede 2WD & 4X4
- Traxxas TRX-4
⚠️ Notes
- Includes a 25T aluminum clamping servo horn and installation hardware.
- Covered by the EcoPower Lifetime Gear Warranty through AMain Hobbies.
• • Verify servo dimensions, spline count, and mounting requirements before installation.
