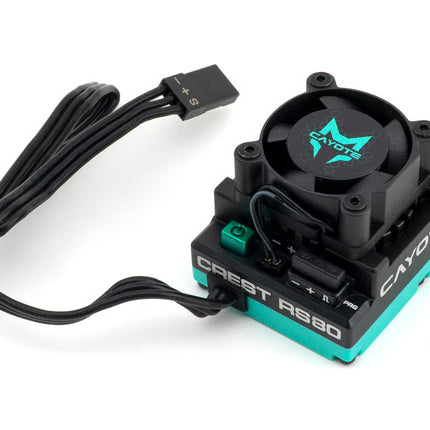

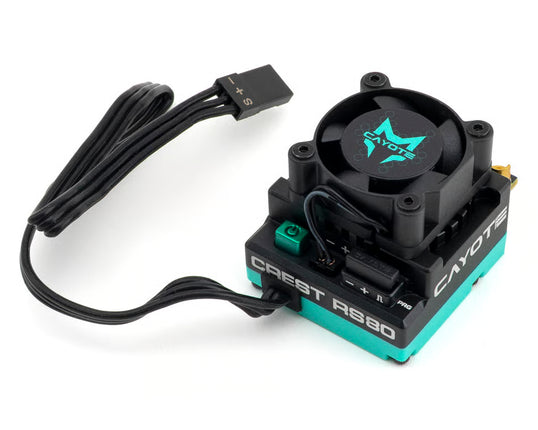

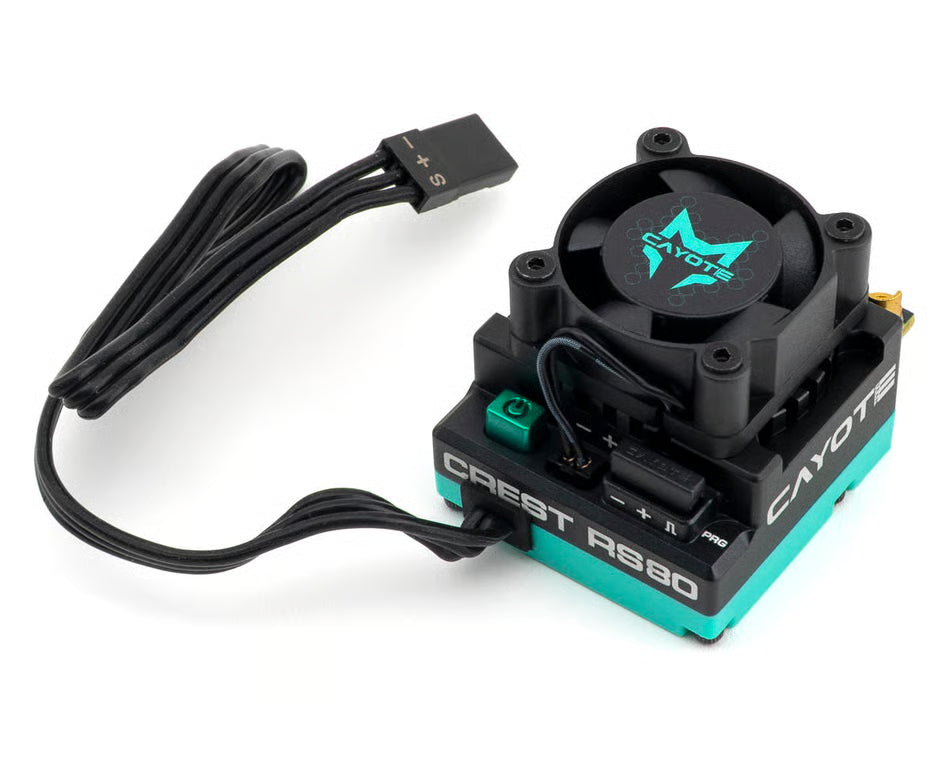

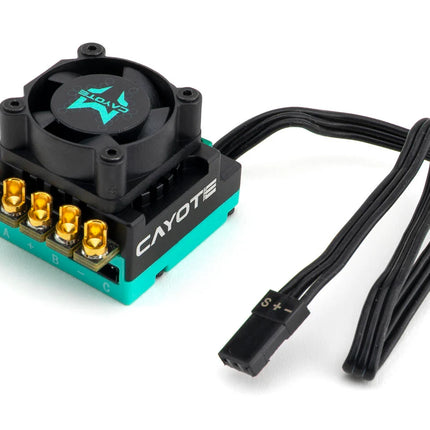

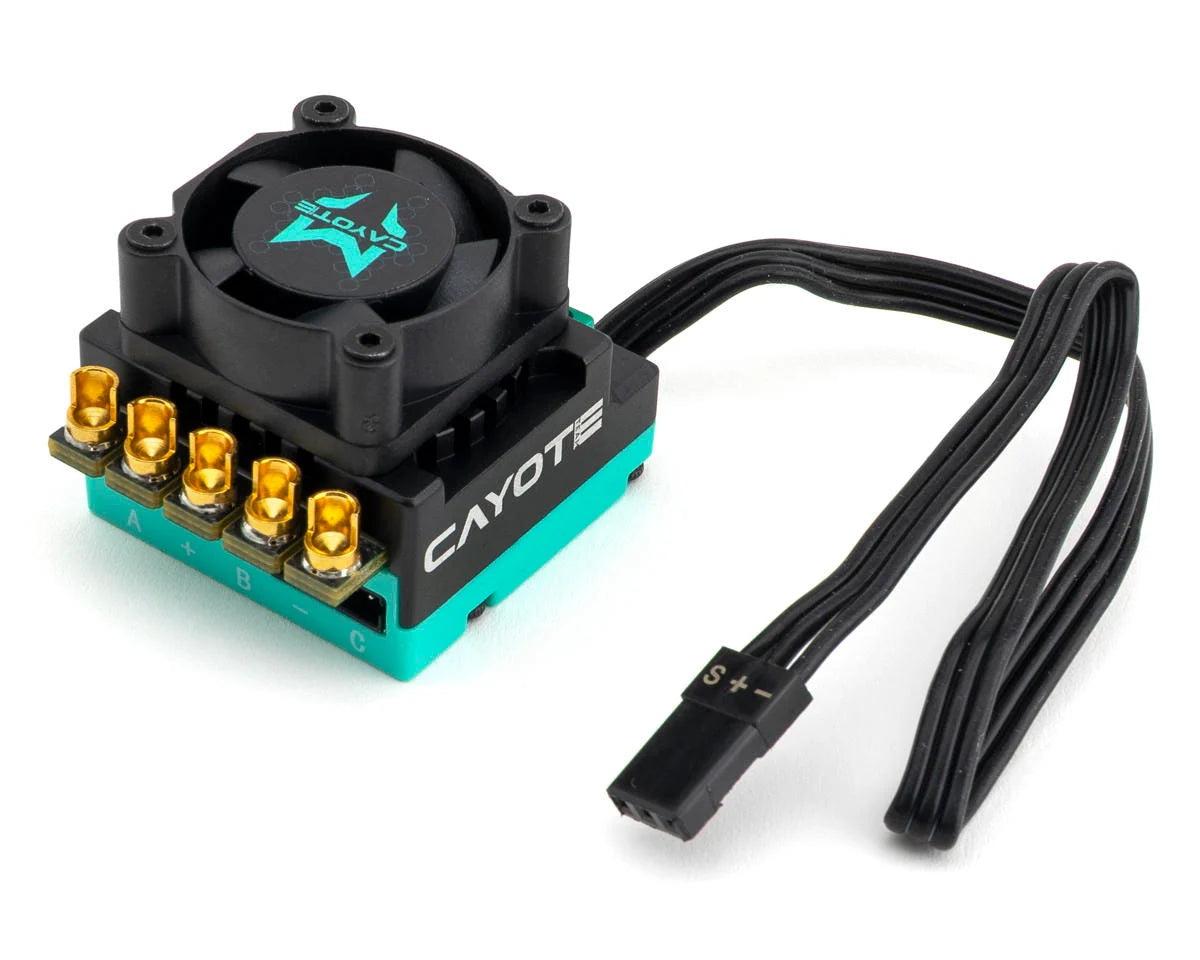

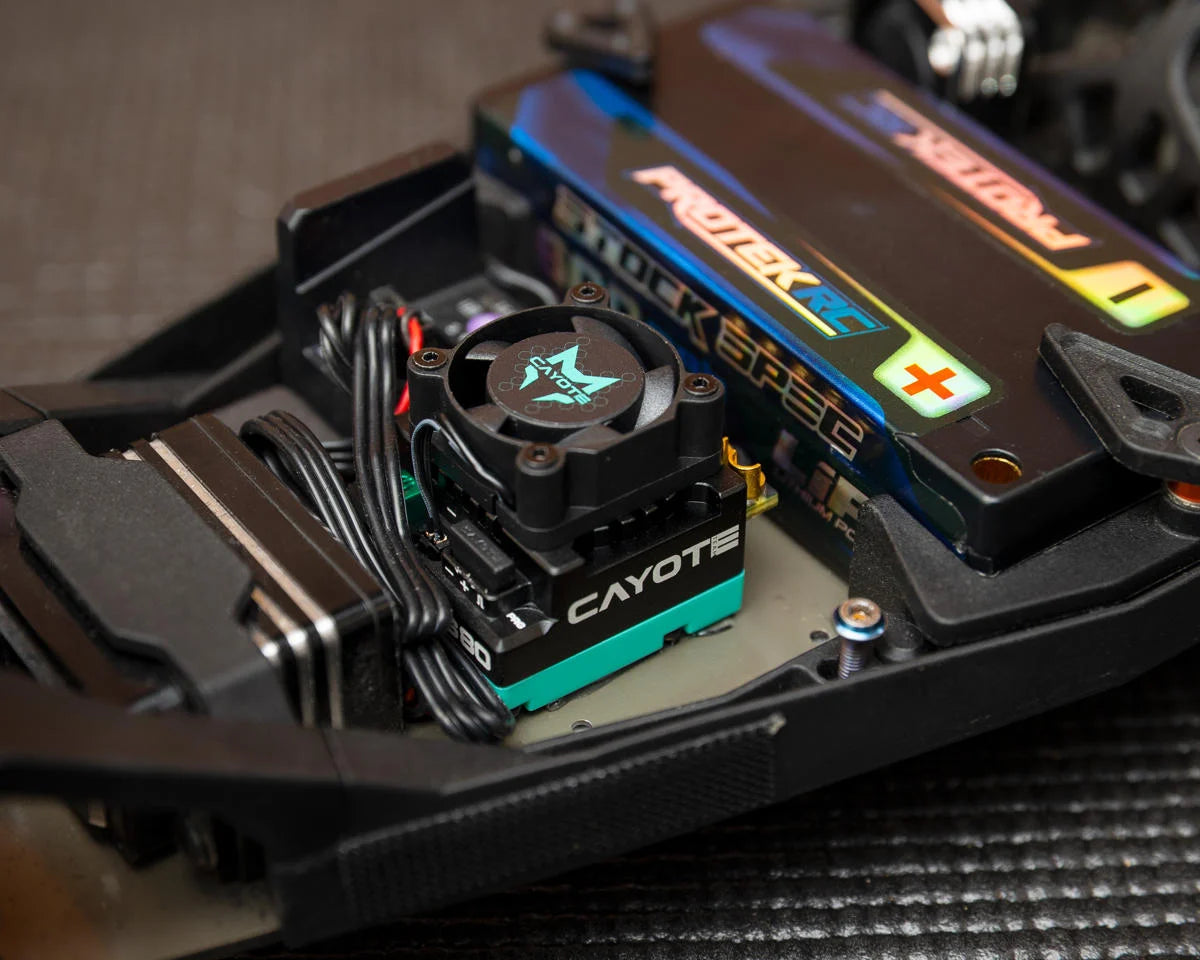

Built for competitive 1/10 scale stock racing, the Cayote Crest RS80 combines an 80A power system with smooth sensored control, extensive programmability, RPM limiting, and built-in data capabilities. Designed for touring cars, buggies, stock-class racing, and drift applications, the RS80 delivers precise throttle and braking response in a compact competition-focused package.
⚡ Features:
- 80A continuous / 400A peak current
-
Supports sensored and sensorless brushless motors
-
Designed for 2S LiPo competition applications
- Smooth, precise throttle and braking response
- Built-in capacitor module for a cleaner installation
- Reverse-polarity protection circuitry
-
Adjustable 6.0V / 7.4V BEC
- Adjustable RPM limiting
-
RPM adjustment from 10,000–18,000 RPM in 1,000 RPM increments
- Offline data recording and performance monitoring
- High-efficiency heat dissipation
- Programmable ESC parameters
- Firmware update capability
- ROAR Approved
- Compatible with Cayote BTune Bluetooth Module and Xlink LCD Program Box
- Optimized for touring, buggy, stock racing, and drift applications
📊 Smart Programming & Data:
The RS80 can be paired with the Cayote BTune ESC Bluetooth Module (CYECBM01 – sold separately) for wireless parameter adjustments, firmware updates, and data access through the Cayote Team App.
It is also compatible with the Cayote Xlink Multifunction LCD Program Box (CYECPB01 – sold separately) for programming and data access.
📦 Includes:
- (1) Cayote Crest RS80 80A Sensored Brushless Competition ESC
- (1) Instruction Manual
📏 Specifications:
Manufacturer: Cayote
Part Number: CYEA11003
Application: 1/10 Touring, Buggy, Drift & Stock Class Racing
Motor Type: Sensored/Sensorless Brushless
Input Voltage: 2S LiPo (7.4V)
Continuous Current: 80A
Peak Current: 400A
Motor Limit: 540/3650 – 10.5T and higher
BEC Voltage: 6.0V / 7.4V
BEC Continuous Current: 4A
BEC Peak Current: 5A
Motor Connection: Solder
Battery Connection: Solder
Programmable: Yes
ROAR Approved: Yes
🏁 Ideal For:
- 1/10 Stock Touring Car
- 1/10 Stock Buggy
- Competitive Off-Road Racing
- Drift Applications
- RPM-Limited Racing Classes
💡 Pro Tip:
For racers running controlled-RPM classes, the RS80's 10,000–18,000 RPM limiter gives you another tuning tool beyond gearing. Pairing the ESC with the optional BTune Bluetooth module also makes trackside setup changes and data review much easier without constantly removing electronics from the car.
