Castle Creations Mamba Micro X2 Waterproof Sensored Brushless Combo (6350Kv) – CSE010-0171-06

Description

 ⚡ Sensored Precision. Castle Power. Waterproof Performance.

Take your mini-scale RC to the next level with the Castle Creations Mamba Micro X2 Brushless Combo. Featuring the powerful 1007-6350Kv Sensored Brushless Motor paired with the legendary Mamba Micro X2 ESC, this system delivers ultra-smooth throttle response, incredible efficiency, and race-proven reliability for 1/14 and 1/16 scale vehicles.

Whether you're crawling technical terrain, racing on the track, or launching hard off the line, the Mamba Micro X2 provides the precision, power, and tunability that Castle Creations is known for.

⚡ Features:

🔥 Powerful 6350Kv 4-pole sensored brushless motor
⚙️ Sensored and sensorless operation capability
💧 Waterproof ESC design for all-weather driving
📱 Castle Link programmable via USB or optional Bluetooth adapter
📊 Built-in data logging and telemetry support
🚀 CRYO-DRIVE technology improves efficiency and reduces heat
🔧 Adjustable external 10-amp BEC included
📡 Auxiliary wire functionality for on-the-fly tuning adjustments
🔔 Audible alerts for diagnostics and setup assistance
🏁 Exceptional throttle control and ultra-smooth starts

⚙️ Mamba Micro X2 ESC Specifications:

Input Voltage: 2S–4S LiPo (16.8V Max)
BEC Output: 5.5V or 7.5V Adjustable
Waterproof: Yes*
Reverse: Yes (can be disabled)
Brake: Proportional
Cooling Fan: Not Included
Dimensions: 41.6 x 29.4 x 21.3mm
Weight: 47g
Motor Connectors: 3.5mm Bullet Connectors

⚙️ 1007-6350Kv Motor Specifications:

Kv Rating: 6350Kv
Input Voltage: 2S–3S LiPo
Maximum RPM: 80,000
Diameter: 28mm
Length: 50.3mm
Weight: 114.8g
Shaft Diameter: 3.17mm (1/8")
Connectors: 4mm Male Bullets

🚀 Advanced Castle Technology:

⚡ QUIETSENSE sensor technology for ultra-precise motor synchronization
🛡️ Flux Shield design minimizes sensor interference
🔥 Improved 4-pole, 12-slot motor design for greater efficiency and lower temperatures
📈 Data logging for advanced performance analysis
📲 Compatible with Castle Link software and Castle Link mobile app
📡 Telemetry ready for supported Futaba radio systems

📦 Includes:

(1) Castle Creations Mamba Micro X2 ESC
(1) Castle Creations 1007-6350Kv Sensored Brushless Motor

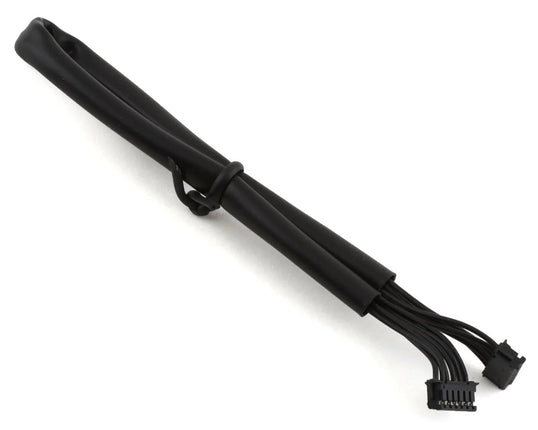

(2) Motor Sensor Harnesses
(1) Quick Start Guide
(1) Castle Decal Sheet

🔧 Compatibility:

Axial Yeti Jr.
LaTrax Teton
Losi Mini-T 2.0
Traxxas 1/16 Rally
Many 1/14 and 1/16 scale vehicles up to approximately 2.75 lbs

⚠️ Important Notes:

🔋 ESC supports 2S–4S LiPo batteries
🔋 Motor is recommended for 2S–3S LiPo operation
🔧 Battery connector must be installed separately
🌡️ Monitor motor and ESC temperatures and keep below 180°F
💧 Waterproof design is not intended for full submersion

💡 Pro Tip:

For racers, the sensored setup delivers smoother launches and more predictable throttle control. For crawlers, the precise low-speed operation and incredible torque make technical climbs easier and more controllable than traditional sensorless systems. 🏁🔥
