Not just another flat dish wheel.
The Avid Truss 2.2” 4WD Front Wheel was engineered from the ground up for racers who want strength, reduced rotating mass, and a premium look that stands apart from the crowd.
With a concave vertical face, reinforced truss hex design, and impact-focused inner bead structure, this wheel blends durability and performance in one lightweight package.
🏁 Built for Performance

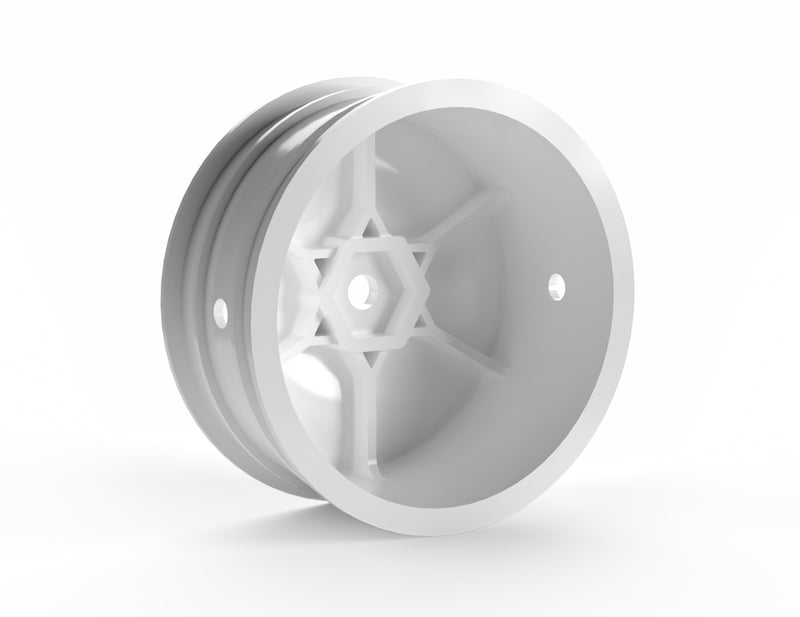

🔺 Symmetric Triangle Truss Reinforcement
Positioned exactly where the hex transfers the most torque, the internal truss design:
-
Reduces wheel fatigue
-
Prevents softening under load
-
Keeps the wheel face stable in hard cornering
🪶 Lightweight Internal Ribbing
Six internal ribs reduce rotating mass without sacrificing strength — giving you quicker acceleration and improved efficiency.
🛞 Low-Profile Inner Bead Ribs
Shortened glue bead ribs allow the foam to absorb impact during landings instead of the tire slamming into a rigid rib.
Result:
-
Smoother landings
-
Reduced insert tearing
-
Improved durability
💎 Premium Design Details

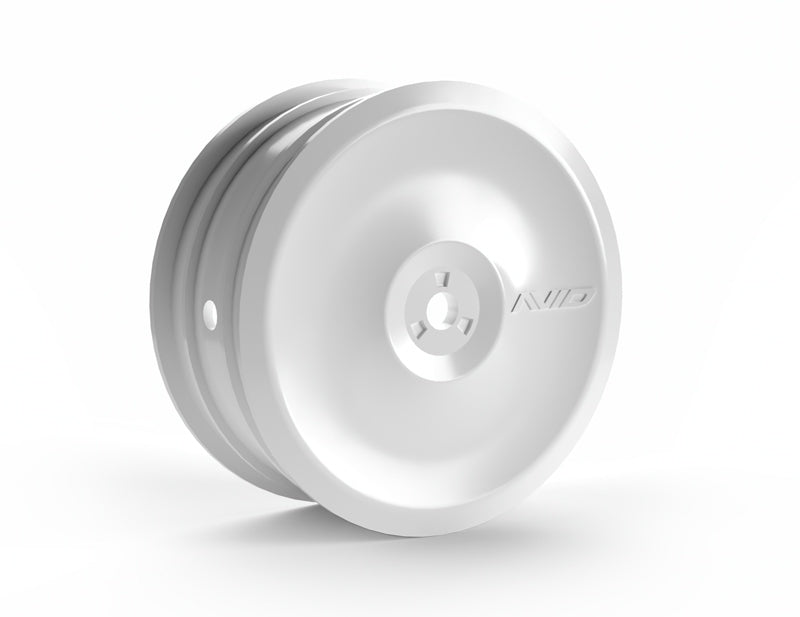

✔ Concave Vertical Face
-
Enhances reflections for a polished look
-
Protects wheel nuts and axles by keeping them recessed
-
Prevents damage when straightaway pipe becomes a berm
✔ Tapered Outer Face
Helps prevent glue from running down the wheel during mounting for cleaner installs.
✔ Textured Glue Bead
Provides stronger bonding surface for consistent tire mounting.
✔ Nut Area Reinforcement
Fewer cutouts leave more material to handle aggressive serrated nuts — a design Avid pioneered over a decade ago.
🌬 Venting & Fitment
-
Oversized 4mm vent holes — no reaming required
-
Standard 2.2” OD for universal fit
-
Hex depth: 3.5mm
-
+1.5mm offset (common for B84, XB4, 22X-4 platforms)
📦 Includes
-
(4) 2.2” 4WD Front Wheels

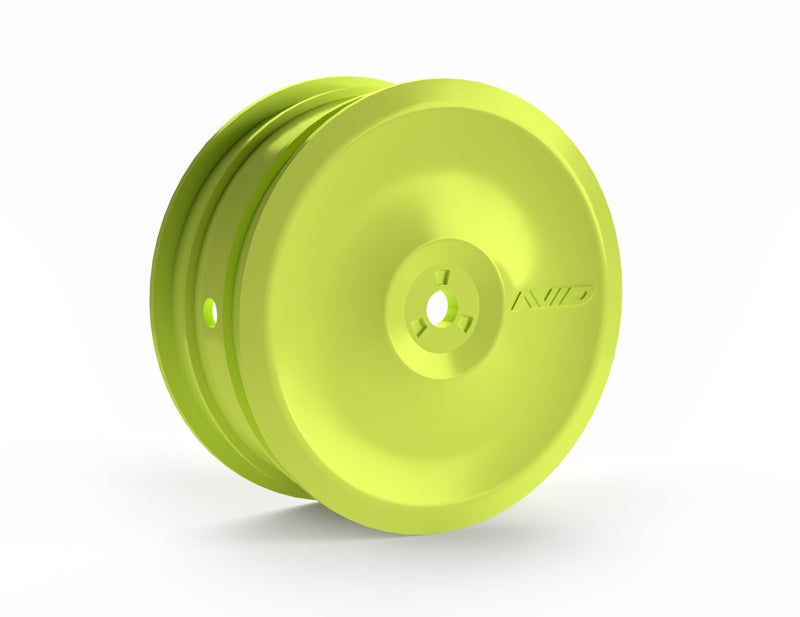

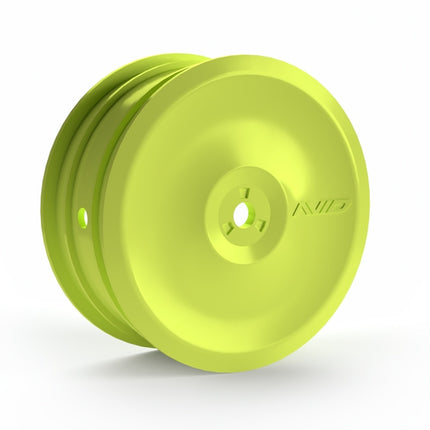

Available in White or Yellow, the Avid Truss wheels deliver strength where it matters, reduced rotating mass, and a clean, aggressive look that sets your build apart.
