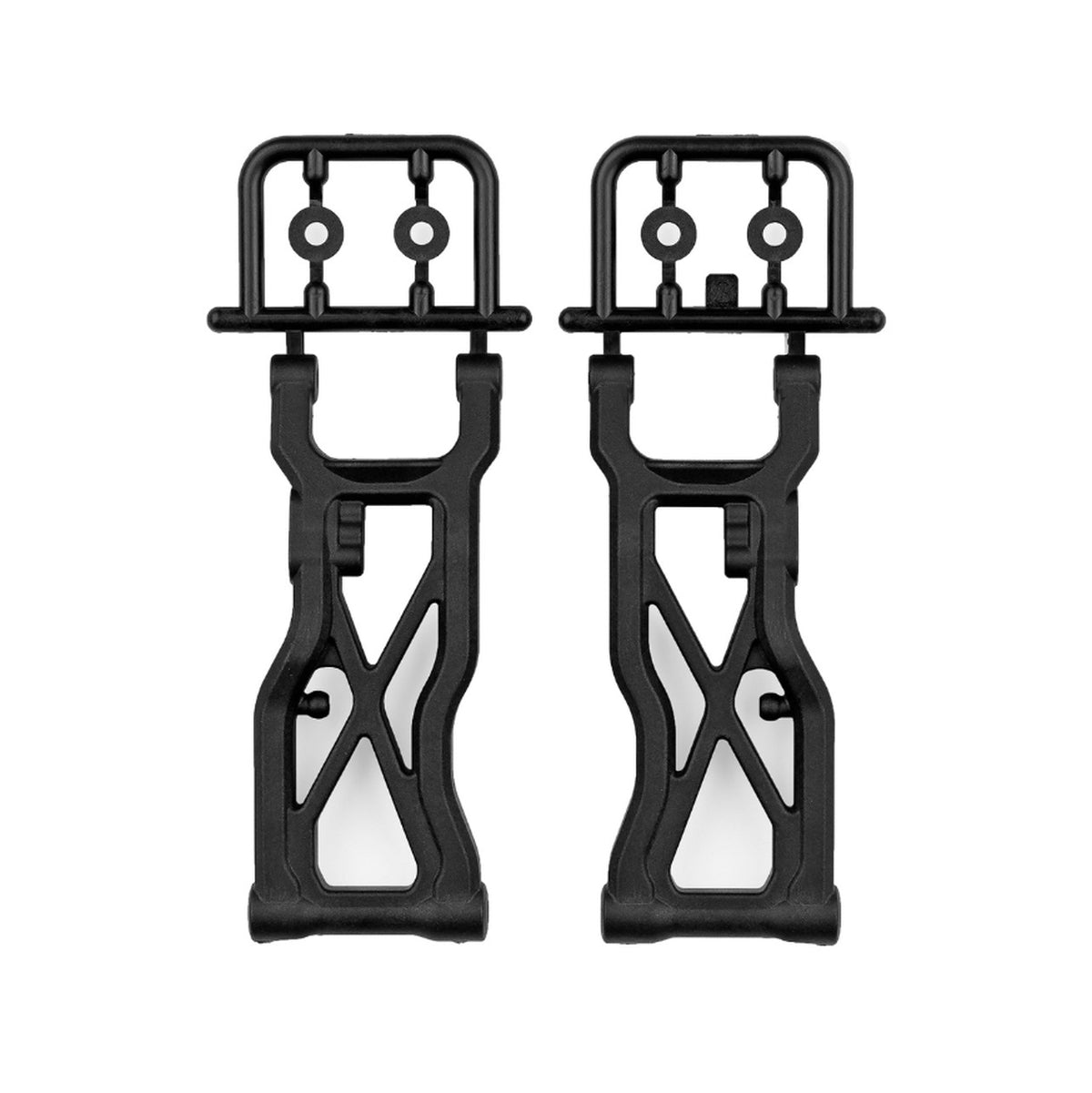

The Team Associated 92516 RC10B7 Rear Suspension Arms (81mm) are an optional geometry upgrade compared to the standard 78mm rear arms. While 78mm arms are the direct replacement, these 81mm arms are designed for racers looking to experiment with rear suspension geometry, stability, and tuning options.
⚠️ IMPORTANT – NOT A DIRECT BOLT-ON
These 81mm arms require additional parts to install correctly. This is not a simple swap, and is recommended for racers comfortable with setup changes.
What’s Different vs 78mm Arms
-
Longer 81mm arm length
-
Changes rear geometry and axle position
-
Results in a 1mm total rear width difference
-
Requires different rear hub offset and drivetrain parts

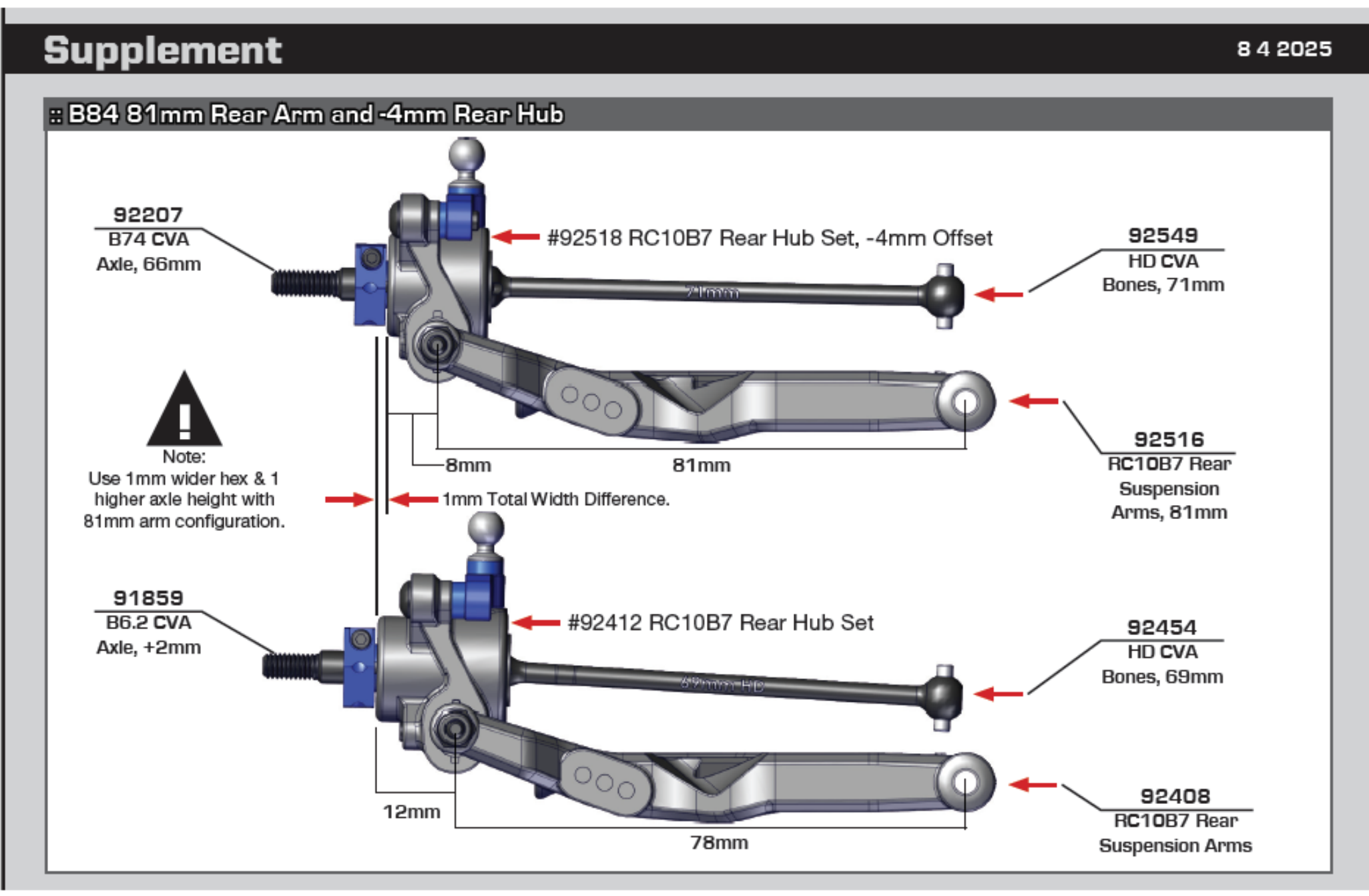

Required Parts for 81mm Conversion
To run these arms properly, the following parts are required (per Team Associated supplement):
-
RC10B7 Rear Hub Set, -4mm Offset (P/N 92518)
-
HD CVA Bones, 71mm (P/N 92549)
-
B74 CVA Axle, 66mm (P/N 92207)
-
1mm Wider Hex
-
1 Higher Axle Height Setting
Features
-
Genuine Team Associated option part
-
Durable molded composite construction
-
Designed for RC10B7 platform
-
Allows advanced rear suspension tuning
Compatibility
-
RC10B7 with required supporting components
Who This Is For
-
Racers tuning rear grip and stability
-
Builders experimenting with alternative geometry
-
Not recommended as a basic replacement arm
🏁 Pro Tip: Make sure all required parts are installed together to maintain correct drivetrain alignment and handling.
