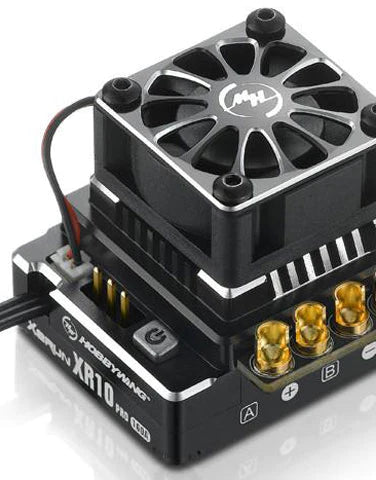

Hobbywing XR10 Pro Legacy Edition – Proven Performance, New Price!
💡 Relaunched with updated pricing! The original ESC that powered world champions is back as the XR10 Pro Legacy Edition — delivering uncompromised performance in a more affordable package.
Whether you're a competitive racer or high-end hobbyist, the XR10 Pro Legacy has what it takes to push your 1/10 vehicle to the next level. Compact, powerful, and packed with race-winning features, this ESC is the real deal for touring car, buggy, drift, F1, and even rock crawler applications.
✨ Key Features:
⚡ 160A Continuous / 1200A Peak Current – Handles extreme power demands
📊 10 Programmable Profiles – Easily dial in throttle/brake curves and turbo/boost settings
🎛️ Precision Tuning – Adjust drive frequency, brake frequency, coast, turbo, and boost
🛠️ Advanced Safety – ESC & motor thermal protection, LiPo low-voltage cutoff
🔁 Remote ON/OFF – Easily power cycle without reaching into tight installs
🌡️ Dual Cooling Fans Included – With backup fan for peace of mind
📡 OTA Firmware Updates – Via optional WiFi Express Module
📦 Loaded with Bonus Gear – Dual capacitors, heat shrink, tape, zip ties & decals
🏆 ROAR Approved – Legal and trusted in high-level competition
📦 What’s In the Box?
✔️ (1) Hobbywing XR10 Pro Legacy ESC w/ Cooling Fan
✔️ (2) Input Wires (12AWG, 200mm)
✔️ (3) Output Wires (12AWG, 200mm)
✔️ (1) Backup Cooling Fan
✔️ (1) Dual Capacitor Module
✔️ Bonus Items: Heat Shrink Tubes, Double-Sided Tape, Nylon Zip Ties, Decals
✔️ (1) User Manual
📊 Specifications:
-
Type: 1/10 Sensored Brushless ESC
-
Continuous/Peak Current: 160A / 1200A
-
Input Voltage: 2–3S LiPo / 4–9 Cell NiMH
-
BEC Output: 6V/7.4V Switchable @ 4A
-
Dimensions: 37.5 x 30.9 x 31.6mm (w/ fan)
-
Weight: 95g (with wires)
-
Cooling Fan: 25x25x10mm powered by stable 6–7.2V BEC
🔧 Compatible With:
-
Motor Type: Sensored brushless (e.g., Hobbywing V10 G3 or G4 series)
-
Vehicle Types: 1/10 Touring Car, Buggy, Drift Car, F1, Rock Crawler
-
Motor Limits (2S LiPo): Touring ≥3.5T, Buggy ≥4.5T
-
Motor Limits (3S LiPo): Touring ≥6.5T, Buggy ≥8.5T
🧠 Programming Options:
-
LCD Program Box or WiFi Express Module (sold separately)
-
Full access to throttle, brake, boost, turbo, timing, voltage cutoff, frequency tuning, and more!
🚀 Legendary Racing Tech — Now More Accessible
The XR10 Pro Legacy is the same championship-grade ESC that set the standard for precision and reliability. With updated value pricing and the same core performance, it’s never been easier to upgrade to Hobbywing’s elite-level ESC platform.
💨 Get legendary power, proven control, and unmatched tuning in one sleek ESC — without breaking the bank. 🏁
