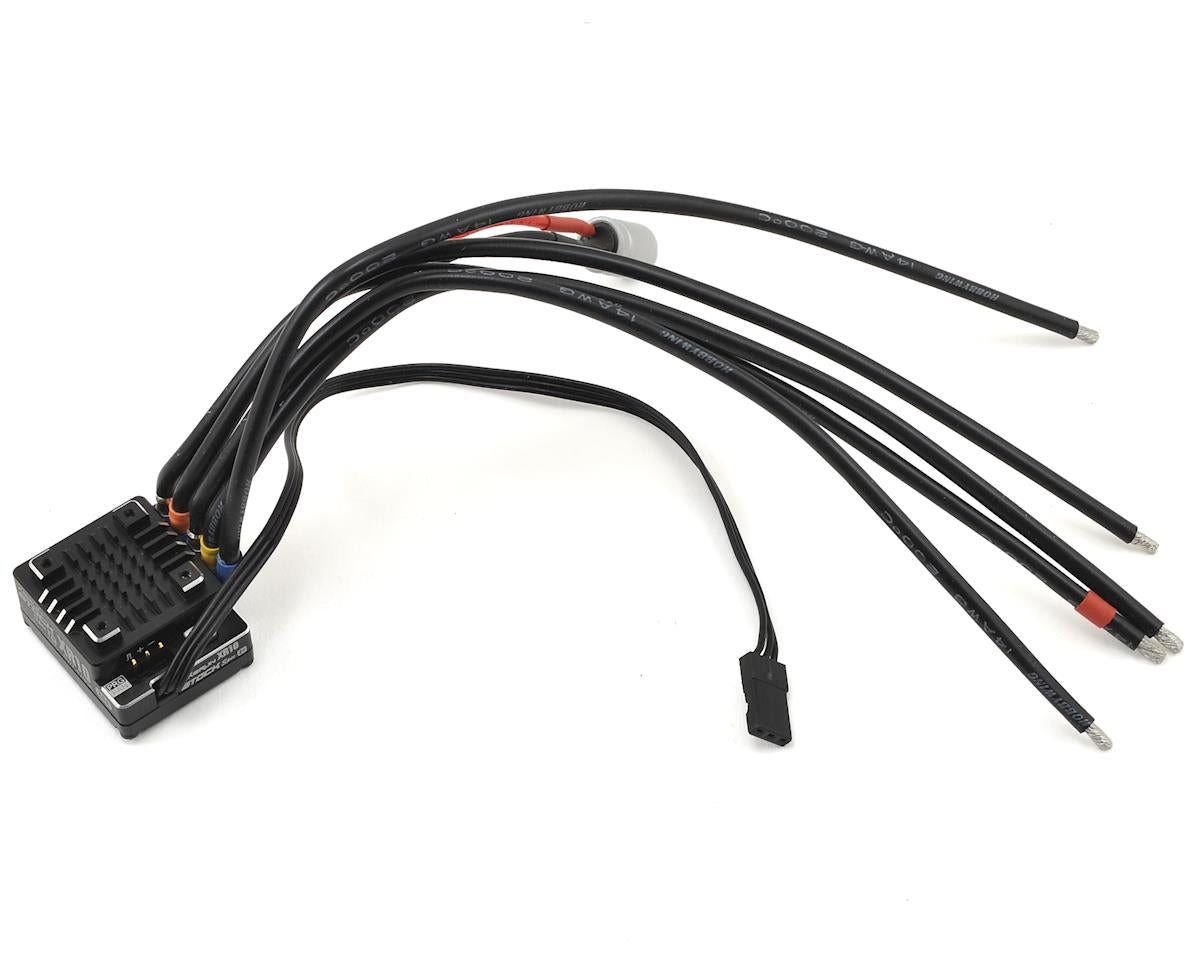

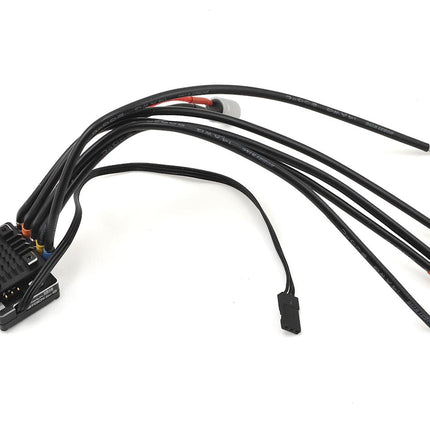

The Hobbywing XR10 Pro 1S Stock Spec is built for elite 1/12 and 1/10 stock-class racing, delivering ultra-smooth control in a compact, lightweight package. At just 31.6×25.8×16.2mm and 20% smaller than the standard XR10 Pro 1S, this ESC gives you more room and better weight balance options inside tight pan-car chassis layouts. Despite its size, it packs serious performance with advanced tuning, data logging, and a boosted internal BEC capable of running high-demand servos without an extra battery.
Features
-
Designed specifically for 1S stock-class racing
-
Ultra-compact size (20% smaller than standard XR10 Pro 1S)
-
Lightweight at 23.5g (w/o wires) for better chassis balance
-
Built-in boost BEC: 6A output, adjustable 6V–7.4V
-
Five preset racing profiles included
-
Adjustable throttle & brake PWM frequencies for precision control
-
Fully sensored ESC for smooth and consistent throttle feel
-
Wireless programming via optional Hobbywing WiFi Express module
-
Built-in electronic switch with 50,000+ cycle lifespan
-
Data logging for motor temps, ESC temps, RPM, and more
-
Firmware upgrade support
Specifications
-
Continuous / Peak Current: 80A / 380A
-
Input Voltage: 1S LiPo or 3–4 cell NiMH
-
BEC Output: 6V/7.4V @ 3A
-
Wires: Black 14AWG, 200mm
-
Connectors: None included
-
Programming: LCD Program Box or WiFi Module
-
Dimensions: 31.6 × 25.8 × 16.2 mm
-
Weight: 23.5g (without wires)
-
Applications: 1/12 & 1/10 on-road stock-class, 1S setups
-
Motor Limit: ≥10.5T, 3650-size
Why Racers Choose It
If you’re running 1S pan cars and want elite throttle precision, small footprint, reliable cooling, and full data-logging capability, the XR10 Pro 1S Stock Spec is one of the strongest options in high-level racing.
