Ultra-Compact. Ultra-Smooth. Ultra-Competitive.

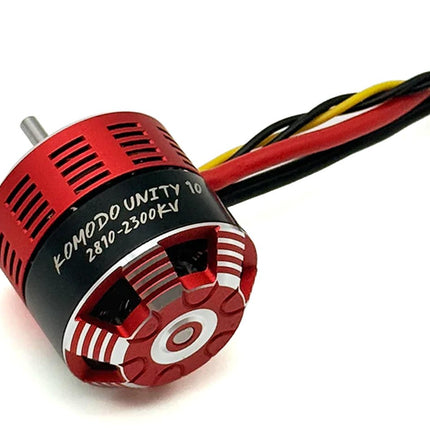

Meet the Furitek Komodo Unity 10 — one of the world’s first fully integrated 2-in-1 outrunner motor + FOC ESC systems, purpose-built for 1/10 competitive rock crawling. This combo delivers massive torque, razor-smooth throttle control, and the cleanest installation possible thanks to its compact integrated design. No more ESC mount. No more wiring clutter. No compromise on power.
Overview
The Komodo Unity 10 Competition system pairs Furitek’s proven outrunner torque with a highly advanced FOC (Field-Oriented Control) ESC built directly into the motor housing. At only 99g with XT60, this system dramatically reduces weight, frees up chassis space, and creates the cleanest pro-level crawler layout possible.
FOC technology gives the Unity 10 incredibly smooth startups, zero-cog low-speed resolution, and ultra-consistent control on steep climbs, technical gates, and comp-level rock sections. With Bluetooth programming, wide BEC adjustability, and 2S–4S support, this system is engineered for serious performance with minimal setup effort.
Features
-
2-in-1 integrated outrunner motor + ESC
-
Just 99g total weight including XT60 connector
-
FOC control for ultra-smooth startup and low-speed response
-
2S–4S LiPo compatibility
-
Selectable 5.5V / 7.4V / 8.4V BEC (5A peak)
-
Up to 280W output
-
50A continuous / 100A burst ESC capability
-
Bluetooth tuning with the Furicar App (no programmer needed)
-
Dramatically reduces wiring, clutter, and mounting space
-
Proven competition-winning performance
-
2300kV torque edition designed for 1/10 crawlers
Specifications
ESC
-
Input Voltage: 2–4S LiPo (7.4–14.8V)
-
Continuous Current: 50A
-
Burst Current: 100A
-
BEC Voltage: 5.5 / 7.4 / 8.4V (Selectable)
-
BEC Peak Current: 5A
-
Programming: Furicar App (Bluetooth)
-
Battery Connector: XT60
Motor
-
Type: Brushless Outrunner
-
kV Rating: 2300kV
-
Voltage: 2–4S LiPo
-
Watts: 280W
-
Shaft Diameter: 3.175mm (1/8")
Weight
Includes
-
(1) Furitek Komodo Unity 10 Competition 2-in-1 Brushless Motor & ESC (2300kV)
-
(1) User Manual
