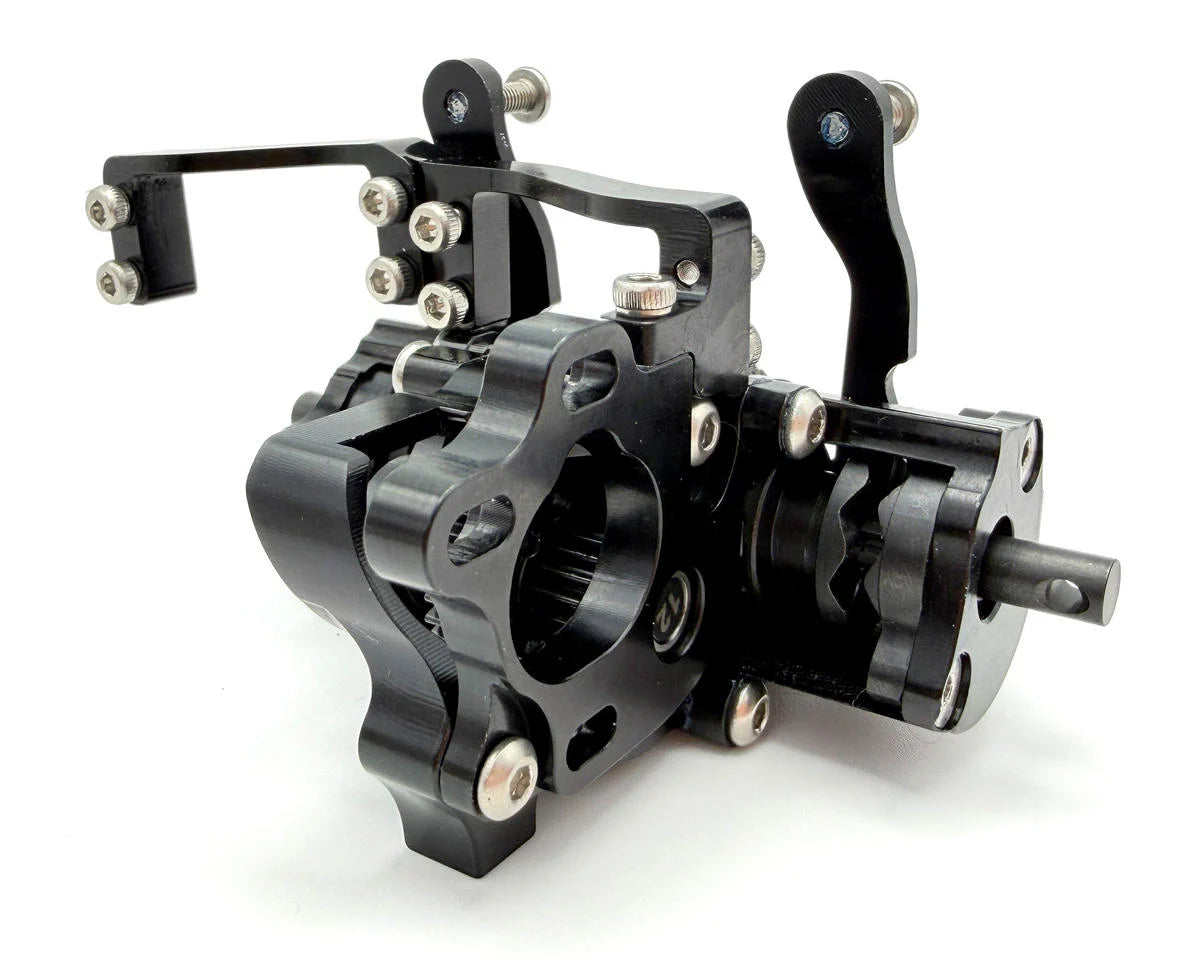

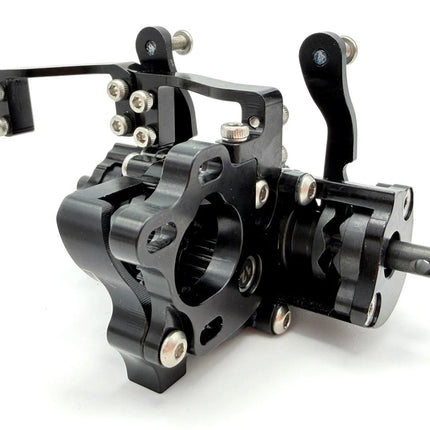

REEFS RC XP Dual Dig Transmission (Black) – SEHREEFS264

Description

 ⚙️ Ultimate Crawler Control. Front & Rear Dig. Built-In Overdrive.

Take your custom crawler to the next level with the REEFS RC XP Dual Dig Transmission. Engineered for serious rock crawling, this advanced transmission gives you independent dig functionality with smooth, precise engagement for tighter turns, better positioning, and maximum control on technical terrain.

At the heart of the system is REEFS RC's patent-pending Revolve Dig technology, providing three-position operation—Drive, Free-Wheel, and Locked—with clean engagement and release without needing to bump the throttle.

⚡ Features:

🪨 Advanced dual-dig transmission for custom crawler builds
🎯 Three-position dig operation: Drive / Free-Wheel / Locked
⚙️ Patent-pending Revolve Dig Plate design
🚀 Smooth, immediate engagement and disengagement
🔄 Built-in 22% overdrive for increased front-end pull
💪 Hardened steel 48P gears and shafts
🛡️ CNC-machined aluminum transmission housing
⚖️ Lightweight design without sacrificing drivetrain strength
🔧 Forward motor mounting configuration
🎮 Integrated servo mounting
🏁 Ball-bearing-supported drivetrain
🔩 Includes aluminum servo horns
🔥 Designed for high-performance and competition crawler setups

📦 Includes:

  • (1) REEFS RC XP Dual Dig Transmission
  • Aluminum Servo Horns

🔧 Needed to Complete:

  • (2) REEFS 99 Micro Servos or
  • (2) REEFS 179 Micro Servos

Servos are not included.

📏 Specifications:

Part Number: SEHREEFS264
Color: Black
Gear Pitch: 48P
Built-In Overdrive: 22%
Housing Material: CNC-Machined Aluminum
Gear/Shaft Material: Hardened Steel

Length:
Housing – 63mm
Shaft End-to-End – 81mm

Width: 60mm

Height:
Housing – 45mm
Top of Shift Arm – 59mm

💡 Pro Tip:

Dual dig gives advanced crawler drivers significantly more control over vehicle positioning. With the ability to switch between drive, free-wheel, and locked modes, you can tighten your turning radius, reposition the chassis on technical obstacles, and better control the front or rear of the rig. Combine that with the built-in 22% overdrive, and the XP is designed for serious technical crawling where precision matters.

Tech Note: Requires two REEFS 99 or REEFS 179 Micro Servos for dig operation.
