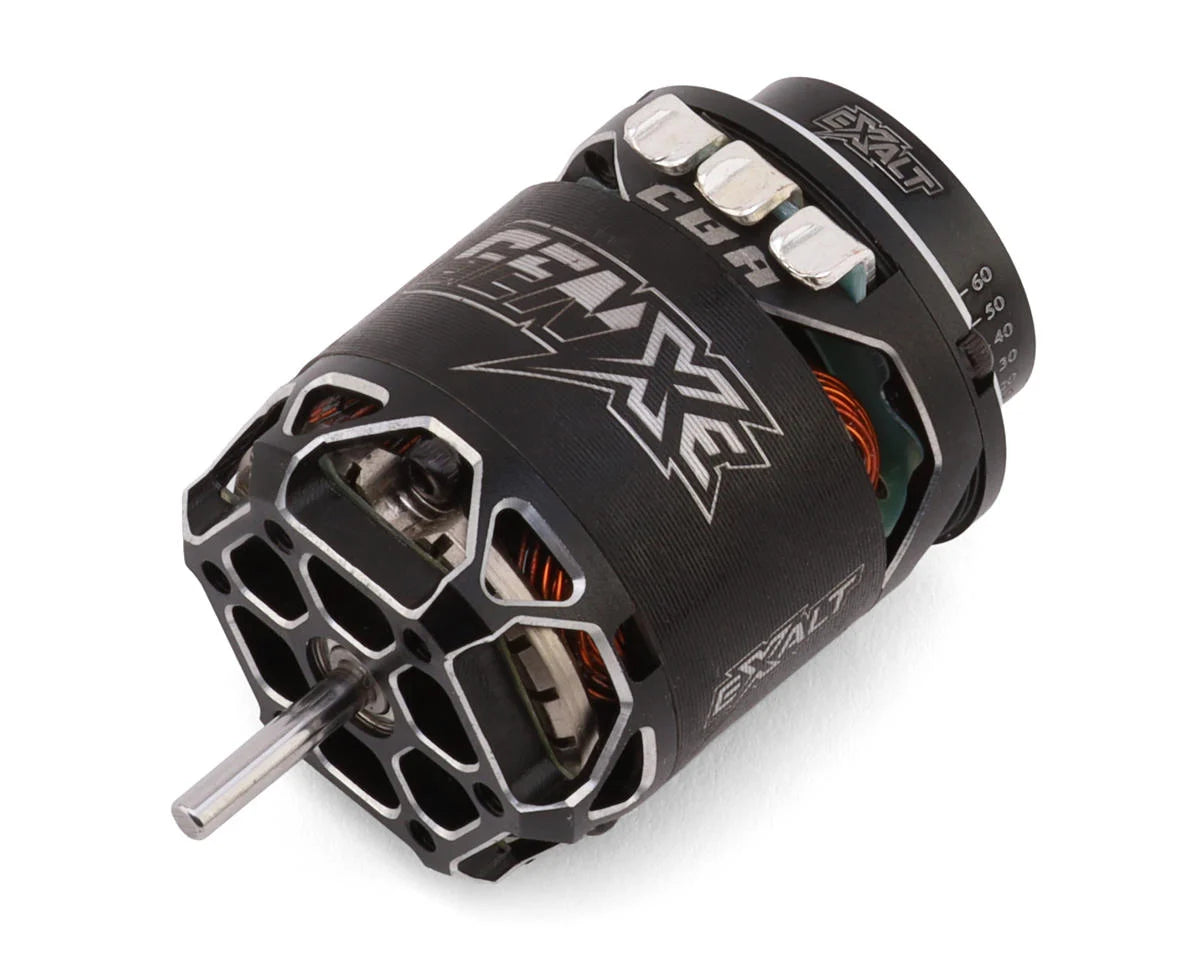

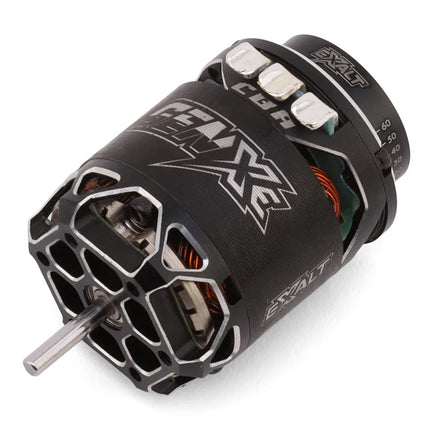

The Team Exalt Gen-X Gold Spec 13.5T Competition Brushless Motor is engineered for racers looking for precise, consistent, and efficient power delivery. Built around an in-house designed stator, precision-balanced rotor, ceramic bearings, and a high-accuracy sensor system, the Gold Spec is designed to deliver predictable performance throughout demanding race conditions.
Each Gold Spec motor receives hand-selected stator and rotor components, ≤1.0° sensor deviation, and individual Motolyser tuning with a performance printout, providing racers with a verified, race-ready motor.
About the Gen-X Gold Spec
Precision-Built Competition Performance
The Gold Spec's in-house designed stator is optimized to produce strong torque while maintaining stable RPM and legal performance limits for sanctioned racing.
A precision-balanced 12.5mm rotor works with ceramic bearings to reduce friction while providing crisp mid-range punch, clean throttle response, and consistent performance.
Hand-Selected & Motolyser Tuned
Gold Spec motors receive specialized attention during assembly, including selection of top-tier stator and rotor components.
Each motor is built with ≤1.0° sensor deviation and individually Motolyser tuned. A performance printout is included to provide verified data for the specific motor.
Advanced Cooling & Sensor Accuracy
Integrated cooling channels and a rigid motor can structure help manage temperatures during longer races. A high-accuracy sensor system maintains clean communication between the motor and ESC for consistent throttle response from the beginning of the race through the final lap.
Features
✔ Competition-level 13.5T sensored brushless motor
✔ ROAR approved
✔ In-house designed stator
✔ Precision-balanced 12.5mm rotor
✔ Ceramic bearings for reduced friction
✔ Strong torque with stable RPM performance
✔ Crisp mid-range power delivery
✔ Advanced cooling channels
✔ Rigid motor can construction
✔ High-accuracy sensor system
✔ Hand-built with selected stator and rotor components
✔ ≤1.0° sensor deviation
✔ Individually Motolyser tuned
✔ Performance printout included
Includes
- (1) Team Exalt Gen-X Gold Spec 13.5T Competition Brushless Motor
- (1) Sensor Cable
- (1) Motolyser Performance Printout
Specifications
|
Specification
|
Details
|
|
Brand
|
Team Exalt
|
|
Part Number
|
EXAG135GS2
|
|
Series
|
Gen-X Gold Spec
|
|
Motor Type
|
Sensored Brushless
|
|
Turns
|
13.5T
|
|
Input Voltage
|
2S
|
|
Pole/Slot
|
2
|
|
Rotor Diameter
|
12.5mm
|
|
Shaft Diameter
|
3.175mm (1/8")
|
|
Bearings
|
Ceramic
|
|
Sensor Deviation
|
≤1.0°
|
|
ROAR Approved
|
Yes
|
Notes
- Designed for competitive RC racing applications.
- Each Gold Spec motor is individually Motolyser tuned and supplied with a performance printout.
- Verify the motor and ESC requirements for your specific racing class or sanctioning organization before competition use.
