Waterproof Performance. Micro-Sized Precision.

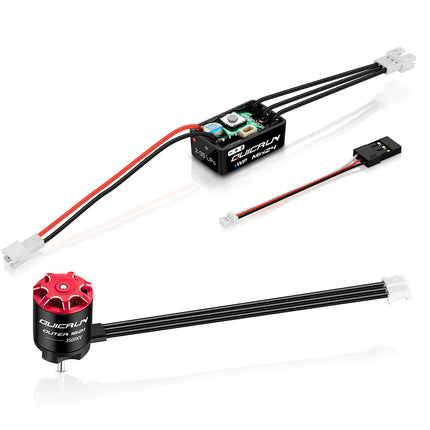

The Hobbywing Quicrun Mini24 ESC Combo is engineered for 1/24-scale crawlers and micro RC vehicles that demand big performance in a small package. Designed to handle sensorless brushless or brushed motors, this combo pairs the Quicrun 1621SL 3500Kv outrunner motor with a fully waterproof 25A ESC — giving you smooth throttle control, rock-solid reliability, and torque that dominates tight climbs and technical terrain.
Ideal for drivers who want precision crawling, smooth low-speed control, and the durability to run anywhere, rain or shine.
⚡ Features:
-
🔋 Dual Motor Support: Compatible with both sensorless brushless and brushed motors.
-
🌧️ Fully Waterproof Design: Ready for mud, water, and wet rock trails.
-
⚙️ Real-Time Drag Brake Adjustment: Fine-tune drag brake force instantly via your transmitter’s AUX channel.
-
💪 Powerful Built-in BEC: Switchable 6V or 7.4V output to handle high-torque micro servos.
-
🧠 Smart Protection Suite: Overheat, throttle signal loss, and low-voltage protection included.
-
🧰 Compact Size, Big Power: Ideal fit for 1/24-scale crawlers and compact trail rigs.
📊 Specifications:
Motor (1621SL Brushless Outrunner):
-
KV Rating: 3500Kv
-
Voltage: 2–3S LiPo
-
Watts: 39.1W
-
Type: Sensorless Brushless Outrunner
-
Dimensions: 15.8 × 21 mm
-
Shaft Diameter: 2.0 mm
-
Weight: 16.7 g (with wire)
ESC (Quicrun Mini24):
-
Input Voltage: 2–3S LiPo
-
Continuous / Peak Current: 25A / 60A
-
BEC Output: 6V/7.4V @ 2A (switchable)
-
Dimensions: 28.1 × 17.9 × 12 mm
-
Weight: 10.8 g
-
Motor Compatibility: Brushless (1621/1212/1806) or Brushed (050/130/180)
-
Programming: Button or Hobbywing Program Box
📦 Includes:
-
(1) Hobbywing Quicrun Mini24 Waterproof Brushless ESC
-
(1) Hobbywing Quicrun 1621SL 3500Kv Outrunner Motor
💡 Pro Tip:
Pair this combo with a 2S LiPo and high-torque servo setup for perfect throttle modulation and torque balance on technical climbs — ideal for Axial SCX24, FMS, TRX4M, and other micro crawlers.
