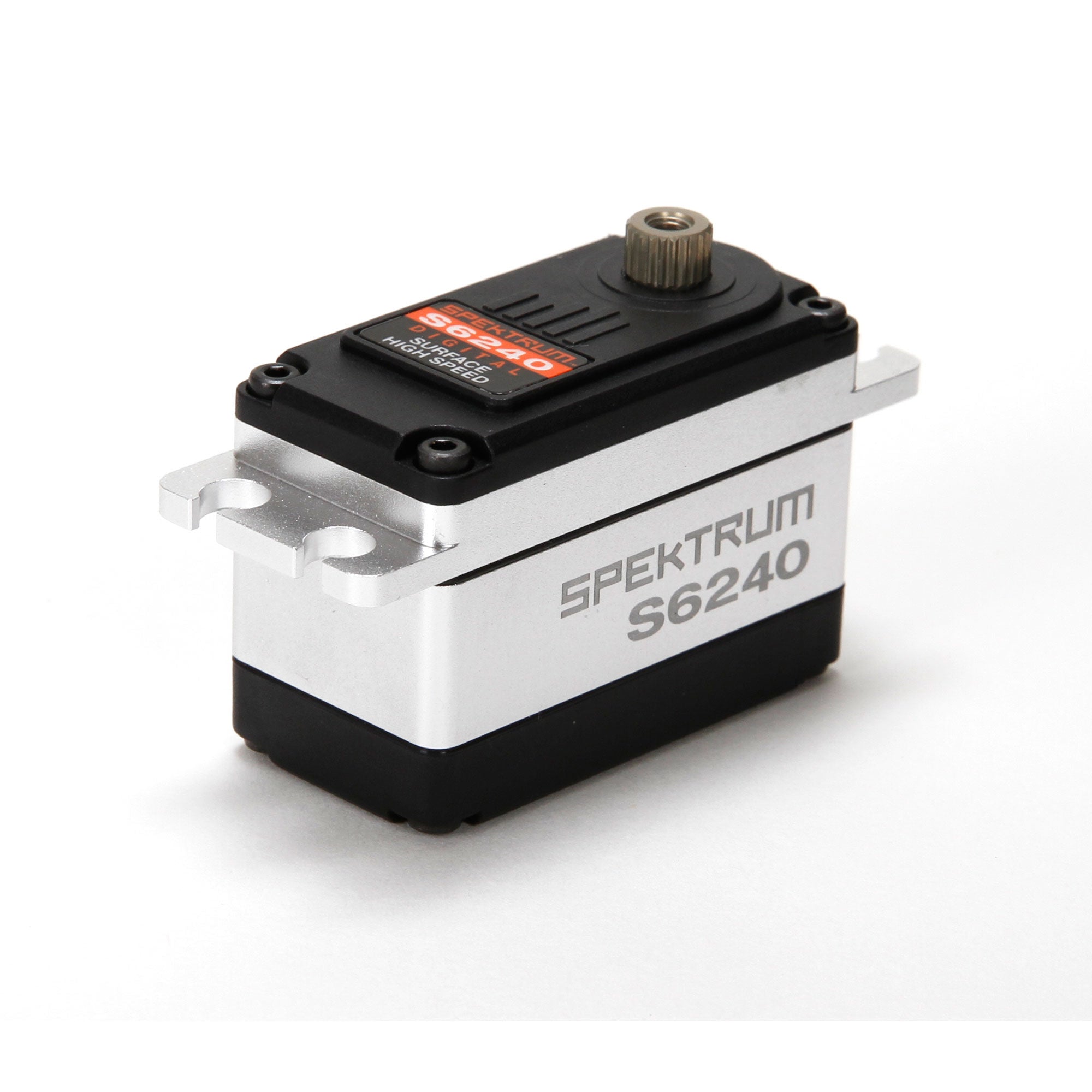

Spektrum RC S6240 Digital Steel Gear High Speed Low Profile Servo

Description

Features

  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Waterproof
  • 1-Year Limited Warranty
  • 23T output shaft
  • Aluminum mounting tabs
  • Removable wire harness with different lengths available
  • NMB dual main bearings
  • Aluminum case for good heat dissipation

Overview

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Specifications

Application

1/10 Buggy, Truck, On-Road
Bearing
Dual
Bushing Or Bearing
Bearing
Connector Type
Universal
Connector Wire Length
7.87 in (200mm)
Current Draw Idle
9.8 mA @ 6.0V
Current Draw Stall
4.9A @ 6.0V
Deadband
4?s
Gear Type
Metal
Maximum Servo Speed
0.050-0.099 sec
Maximum Servo Torque
200-349 oz-in
Motor Type
Coreless
Product Height
1.18 in (30mm)
Product Length
1.61 in (41mm)
Product Weight
2.1 oz (59.5g)
Product Width
0.82 in (20.9mm)
Programmable
No
Rotation Range
120 deg
Servo Operating Voltage
6.0V
Servo Size Category
Standard
Servo Type
Digital
Speed
0.08 sec/60 deg @ 6.0V
Spline Count
23 Teeth
Torque
208 oz-in (15.0kg-cm) @ 6.0V
Wire Gauge
22 AWG

Read more

Product form

Features 7075 Aluminum hard anodized output shaft/main gear with steel internal gears Waterproof 1-Year Limited Warranty 23T output shaft Aluminum... Read more

Free pickup in our shop(s)

SKU: SPMSS6240
Barcode: 605482585245

1 in stock

$99.99$89.99

  • Shipped today? Order within: Oct 03, 2023 17:00:00 -0400

Description

Features

  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Waterproof
  • 1-Year Limited Warranty
  • 23T output shaft
  • Aluminum mounting tabs
  • Removable wire harness with different lengths available
  • NMB dual main bearings
  • Aluminum case for good heat dissipation

Overview

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Specifications

Application

1/10 Buggy, Truck, On-Road
Bearing
Dual
Bushing Or Bearing
Bearing
Connector Type
Universal
Connector Wire Length
7.87 in (200mm)
Current Draw Idle
9.8 mA @ 6.0V
Current Draw Stall
4.9A @ 6.0V
Deadband
4?s
Gear Type
Metal
Maximum Servo Speed
0.050-0.099 sec
Maximum Servo Torque
200-349 oz-in
Motor Type
Coreless
Product Height
1.18 in (30mm)
Product Length
1.61 in (41mm)
Product Weight
2.1 oz (59.5g)
Product Width
0.82 in (20.9mm)
Programmable
No
Rotation Range
120 deg
Servo Operating Voltage
6.0V
Servo Size Category
Standard
Servo Type
Digital
Speed
0.08 sec/60 deg @ 6.0V
Spline Count
23 Teeth
Torque
208 oz-in (15.0kg-cm) @ 6.0V
Wire Gauge
22 AWG

Read more
