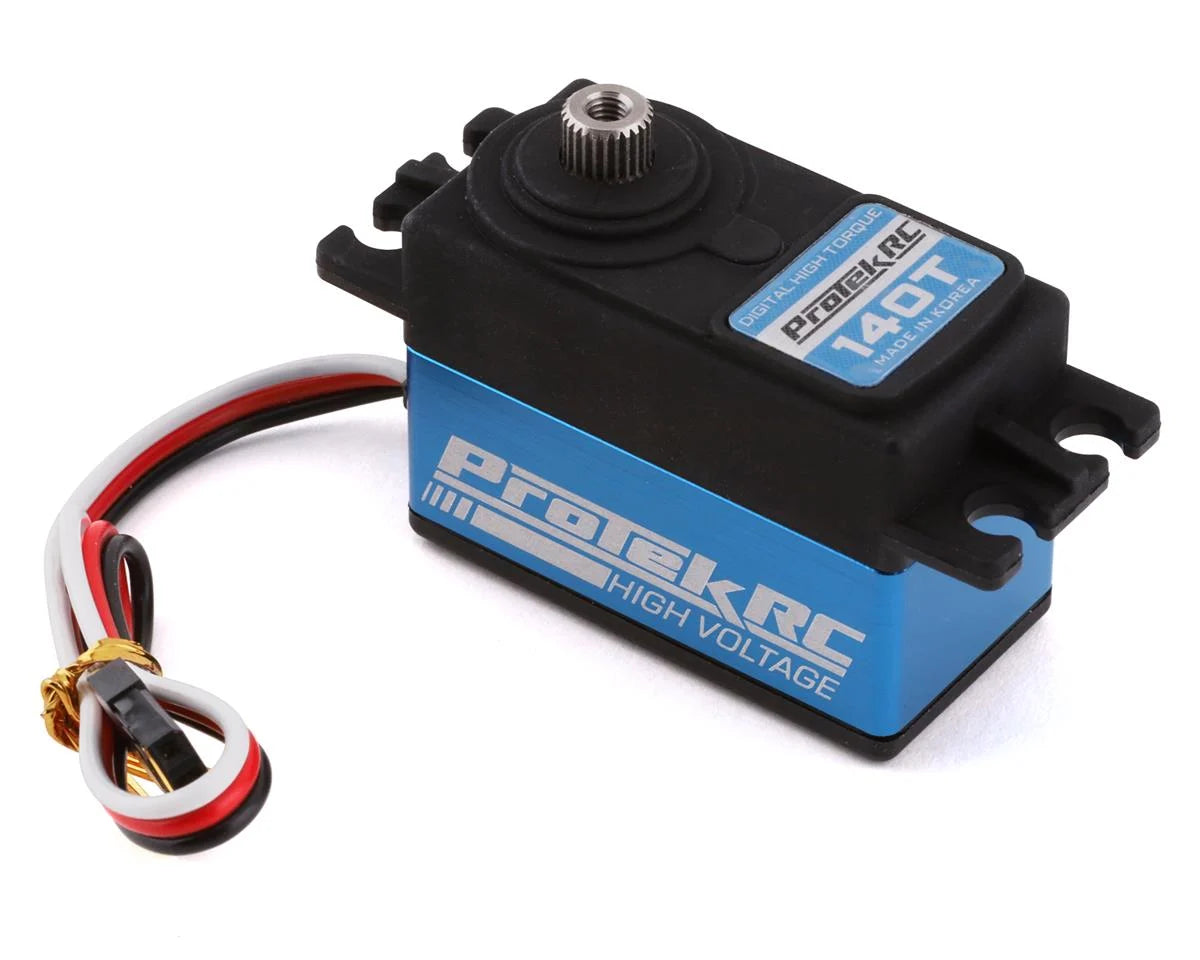

ProTek RC 140T Low Profile High Torque Metal Gear Servo (High Voltage)

ProTek RC 140T Low Profile High Torque Metal Gear Servo (High Voltage)
ProTek RC 140T Low Profile High Torque Metal Gear Servo (High Voltage)
ProTek RC 140T Low Profile High Torque Metal Gear Servo (High Voltage)

AMAIN

$79.99
SKU: PTK-140T

Warranty Info Icon small

Features:

  • Low-Profile case saves space and weight
  • Ideal for any 1/12 to 1/10 scale vehicle application
  • Plastic case with aluminum center band
  • High voltage circuitry
  • 0.10 transit speed, and 185 oz-in of torque @ 6.0V
  • 0.08 transit speed, and 215 oz-in of torque @ 7.4V
  • 0.07 transit speed, and 230 oz-in of torque @ 8.4V
  • Full metal gears and dual ball bearings
  • 160mm long 22awg connector wire
  • Coreless motor



Servo Model
140T
Recommended Application 1/12 to 1/10 scale Surface
Operating Voltage 4.8V - 8.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.10/60° sec
Operating Speed @ 7.4V
0.08/60° sec
Operating Speed @ 8.4V
0.07/60° sec
Dynamic Torque @ 6.0V
185 oz-in (13.3 kg-cm)
Dynamic Torque @ 7.4V
215 oz-in (15.5 kg-cm)
Dynamic Torque @ 8.4V
230 oz-in (16.6 kg-cm)
Motor Type
Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 49.8g
Pulse/Frequency
1520Us / 333hz
Dimensions 39.5x30.5x20mm
