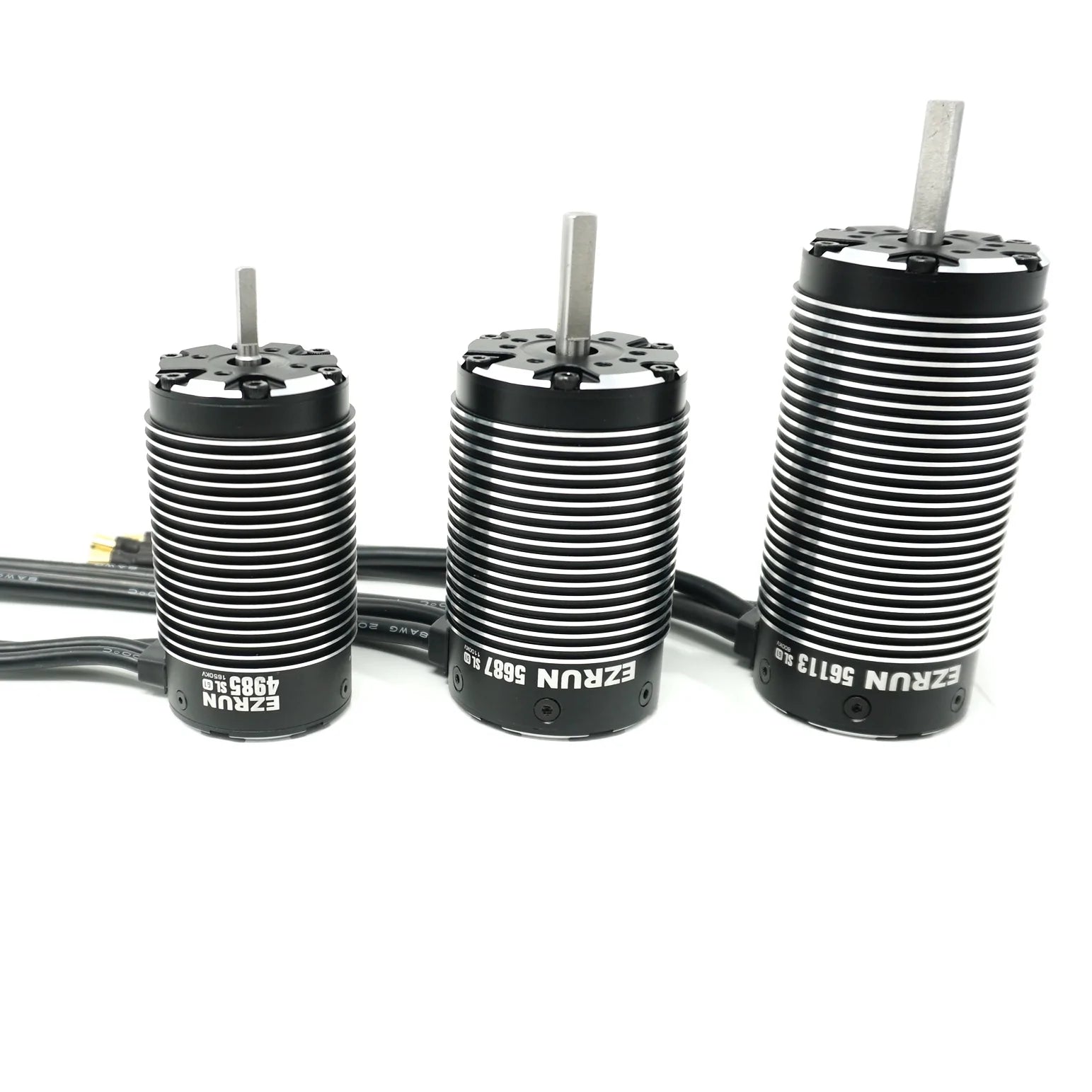

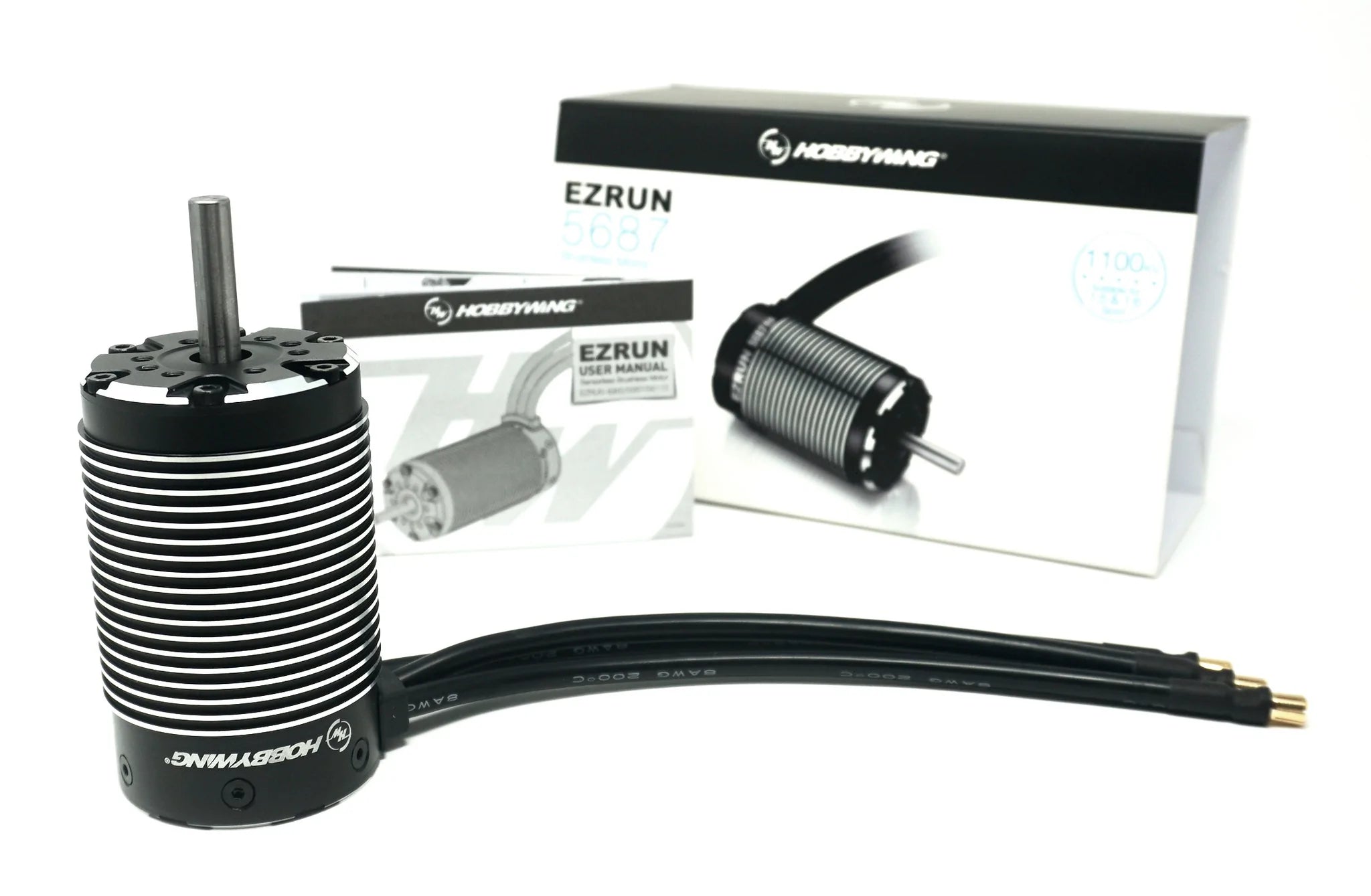

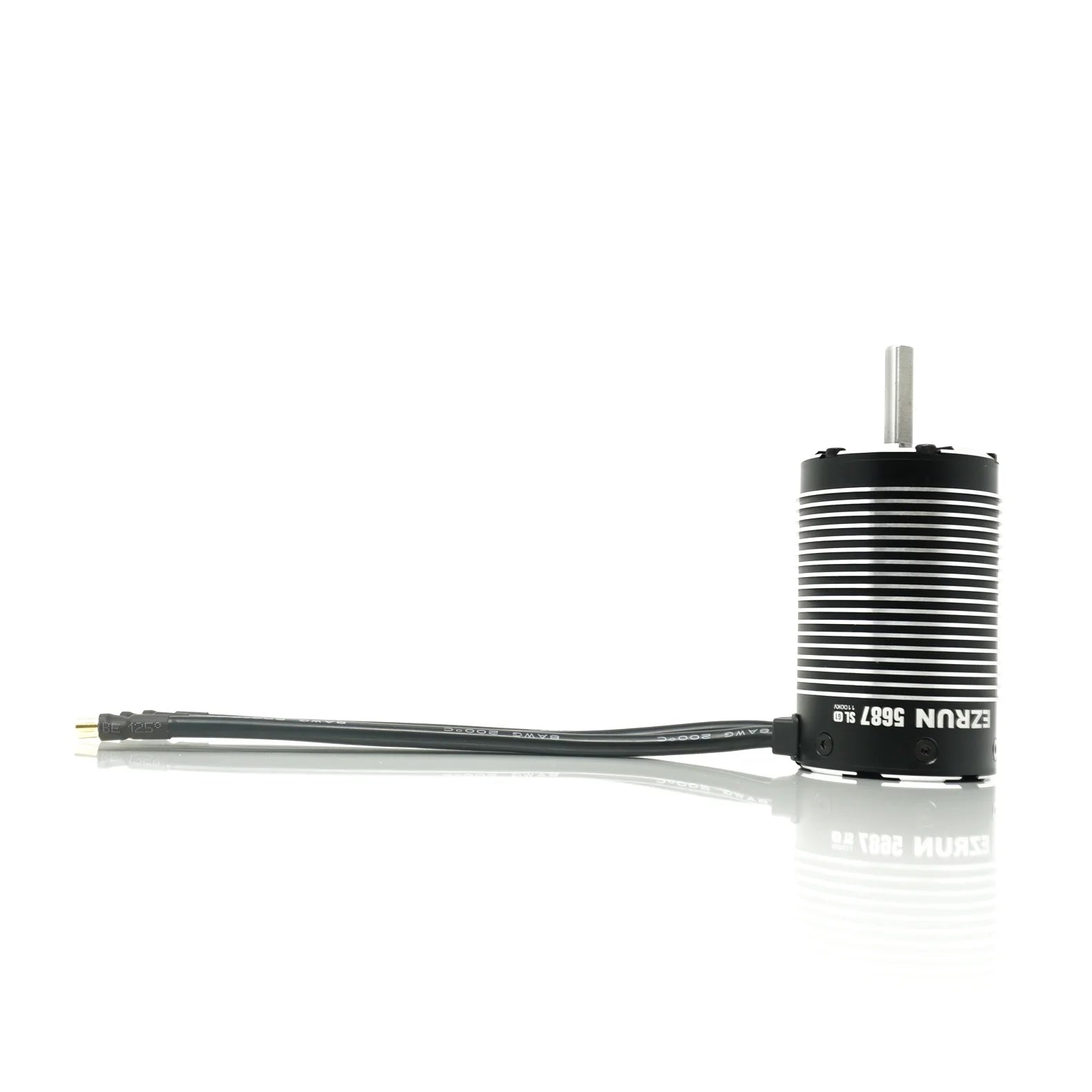

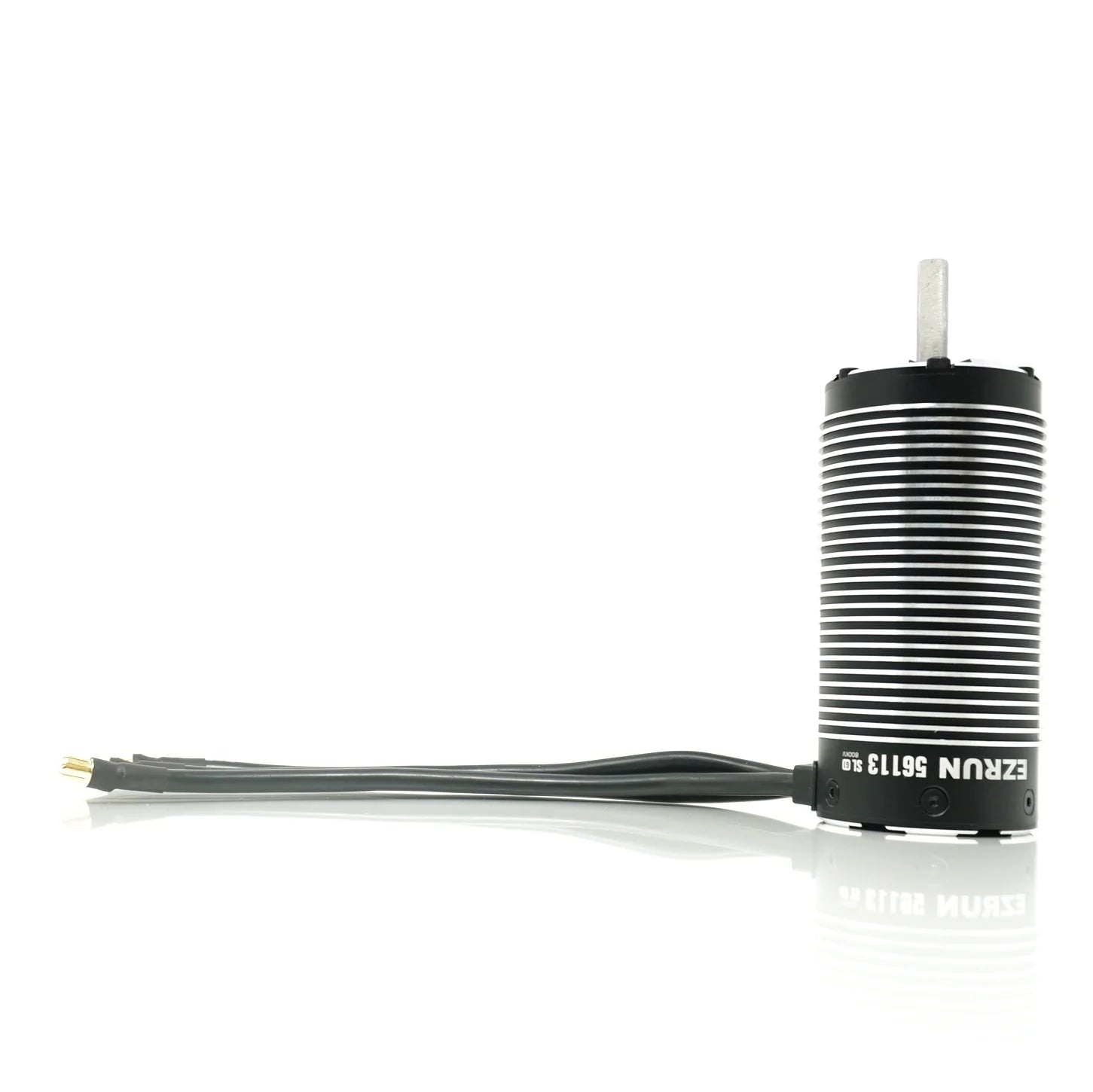

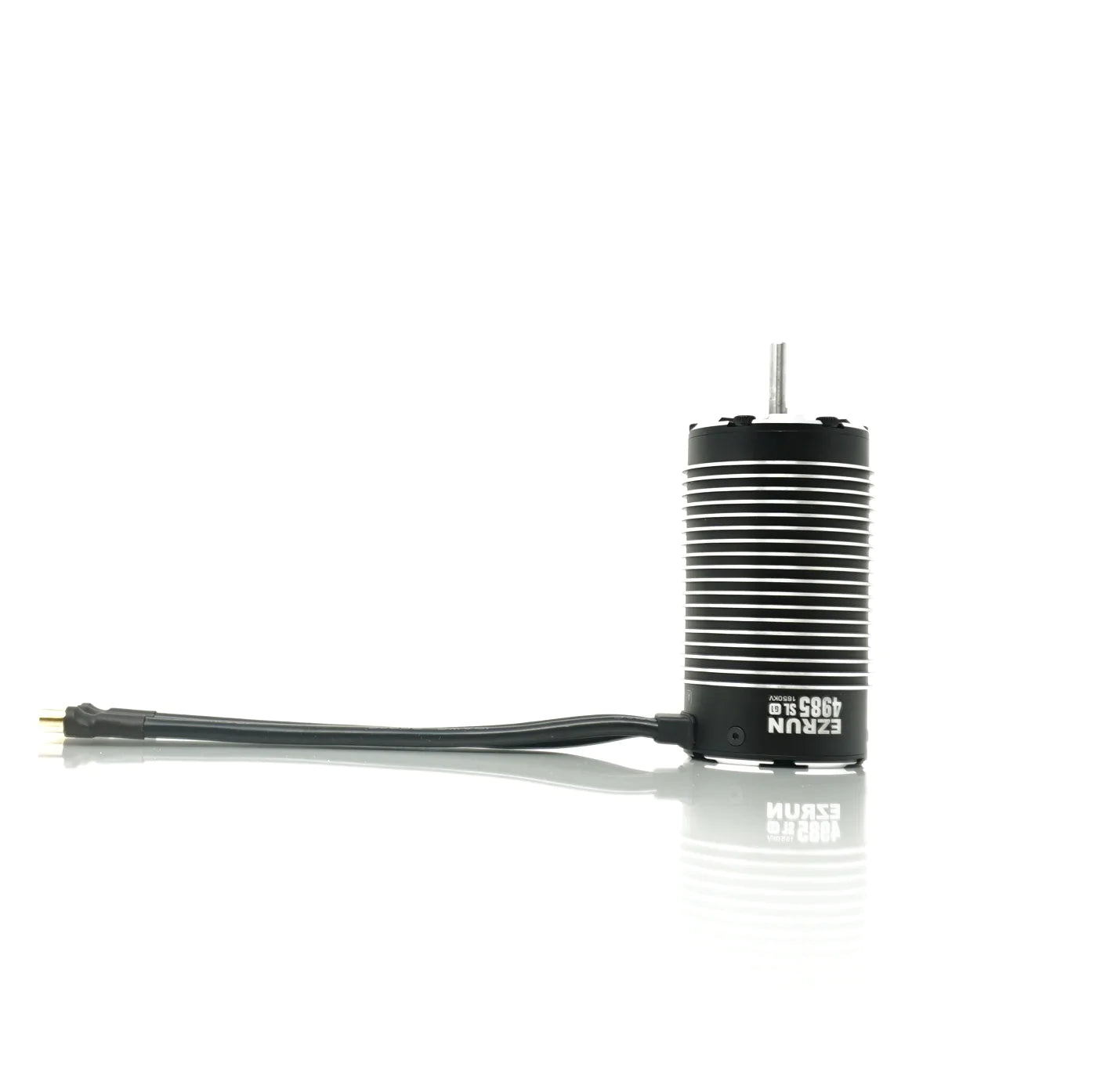

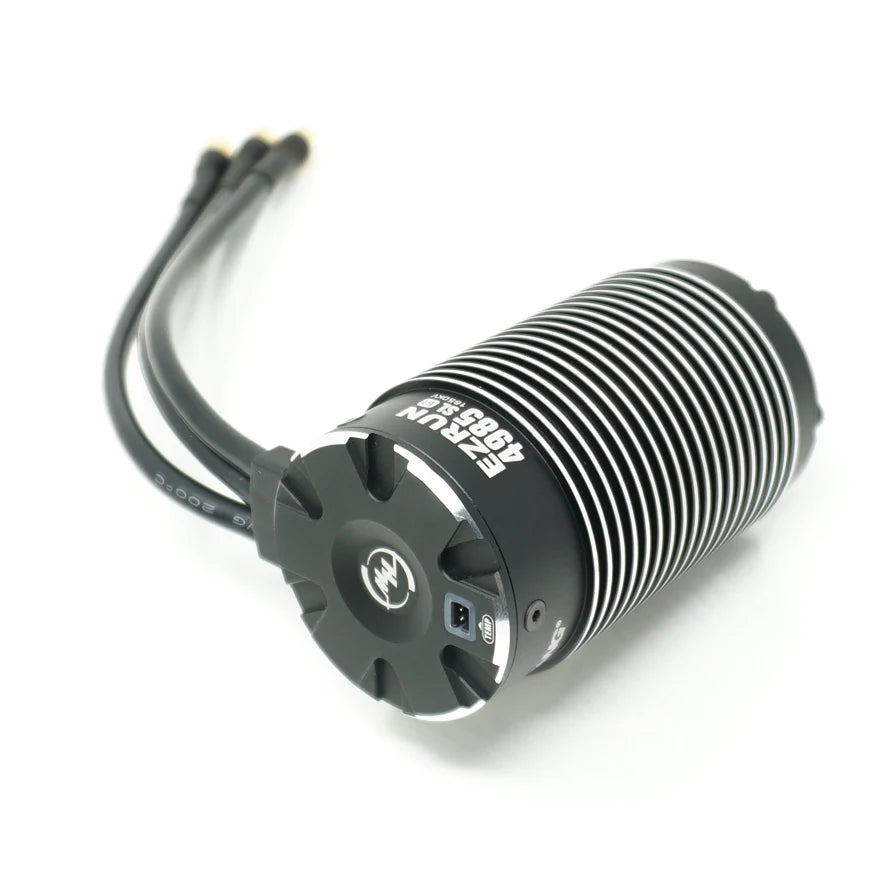

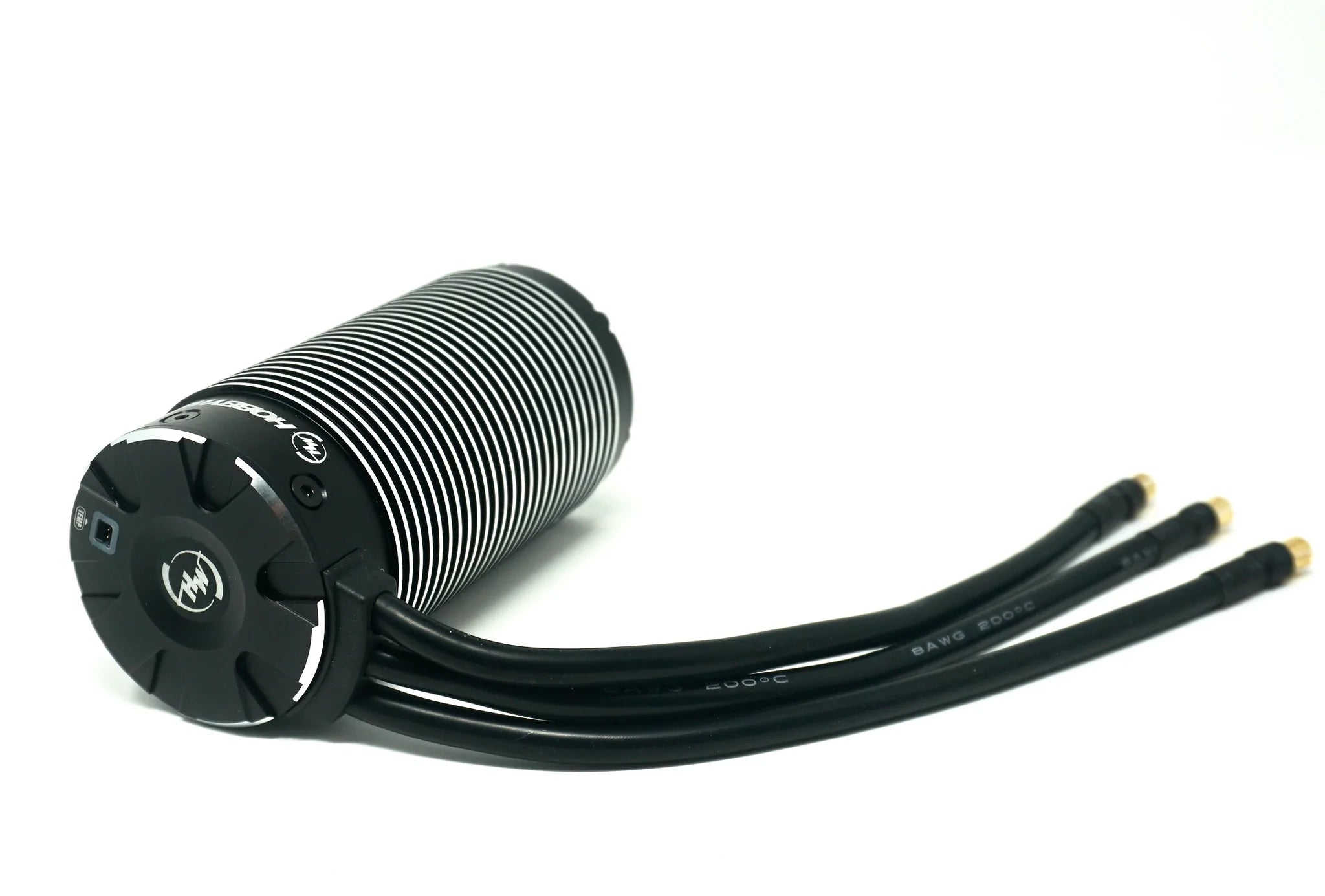

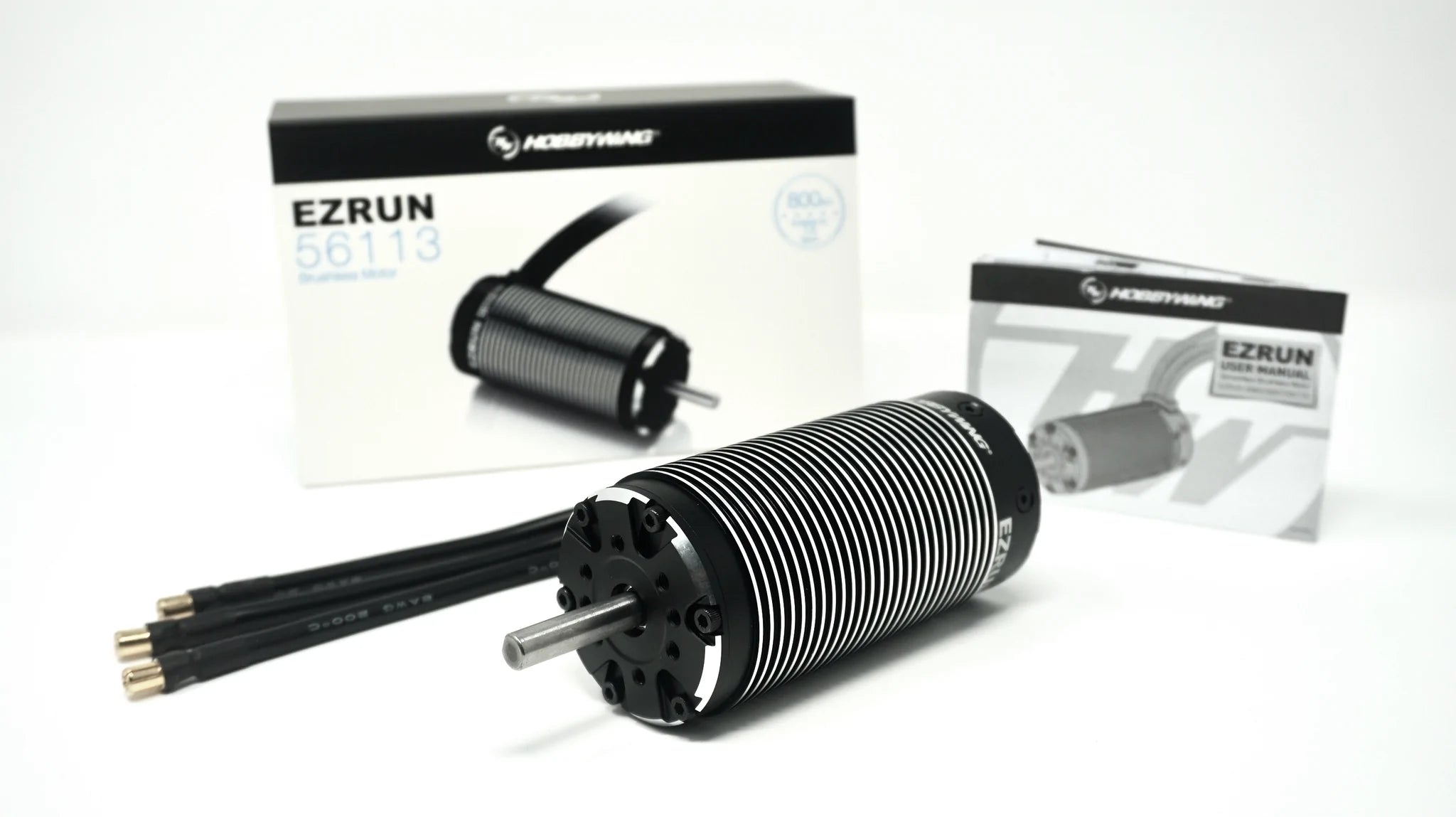

HOBBYWING EZRUN Max Motors (4985 SL / 5687 SL / 56113 SL / 70125SD )

Description

MAX SPEED & UBER POWER

"EZRUN Series SensorLESS Brushless Motor
for 1/5"

    Model

    		 4985SL-1650KV 5687SL-1100KV  56113-800KV 70125SL-560KV
    PN 30402950

    30402550

    30402900     		30402850
    Pole 4 4 4 4
    KV(No-load) 1650KV 1100KV 800KV 560KV
    R. (Ω) 0.0053 0.0041 0.00049 0.0050
    Current No-load（A） 5.4 4.1 3.2 3.6
    Max. Output Power（W） 5700 5800 5800
    C.at the point of M.O.P *(A) 160 200 200
    Motor D.&L（mm） Φ=49mm, L=86.5mm Φ=56mm, L=87mm

    Φ=56mm, L=113mm     		Φ=70mm L=125mm
    Shaft D.&L of the projecting part（mm） Φ=5.0mm, L=21.5mm Φ=8.0mm, L=31.0mm.

    Φ=8.0mm, L=31.0mm.     		Φ=8mm L=30mm
    LiPo(S) 3-6 3-8 3-8 8-12s
    W (g) 587g (20.71oz) 916g(32.21oz) 1210g(42.68oz) 1995g
    Applicable 1/6th & 1/7th RC Vehicles

    1/5th RC Vehicles Truck/Dragster

    1/5th

     RC Vehicles  Truck/Dragster     		1/4th, 1/5th Heavy-duty Off-road, Truck.

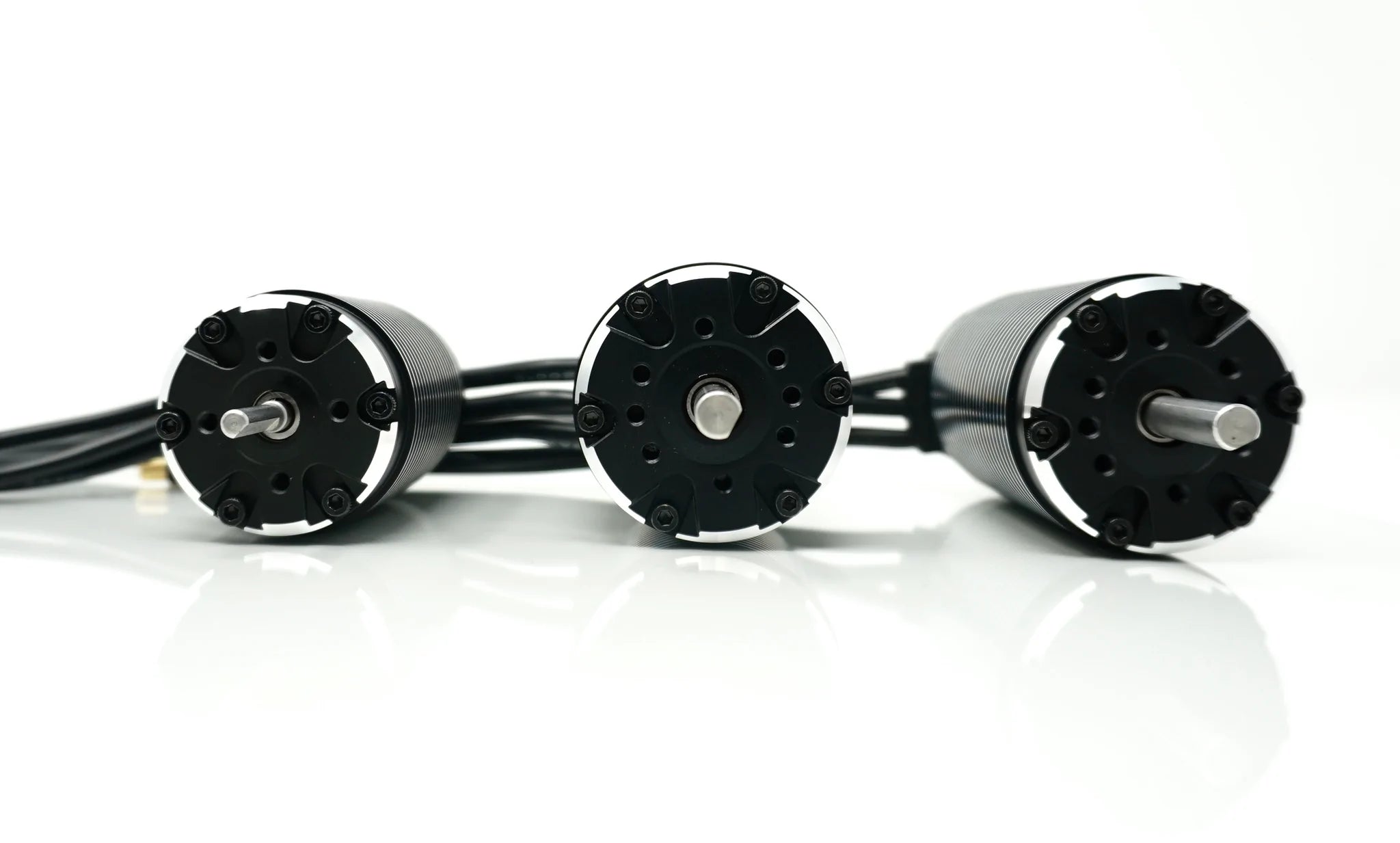

    1. How to Mount the Motor into RC vehicle
    M4 mounting screws are needed there (four for the 4985 motor, eight four the 5687/56113 motor), as the mounting holes are 8mm in depth,  So we don't recommend using the M4 screws with the length that exceeds 10mm to mount the motor into your vehicle
    2. How to Connect the Motor to an ESC
    There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
    3. Recheck the Installation & Connections
    Recheck the installation and all the connections before turning on the power.

    Read more

    Product form

    MAX SPEED & UBER POWER "EZRUN Series SensorLESS Brushless Motor for 1/5" Model 4985SL-1650KV 5687SL-1100KV  56113-800KV 70125SL-560KV PN 30402950 30402550 30402900 30402850... Read more

    Free pickup in our shop(s)

    SKU: HWI30402900
    Barcode: 088718505451

    1 in stock

    $214.99

    • Shipped today? Order within: Sep 23, 2023 17:00:00 -0400
