Dynamite Brushed Crawler ESC & Motor Combo w/35T Motor & EC3 Connector

Dynamite Brushed Crawler ESC & Motor Combo w/35T Motor & EC3 Connector

HORIZON HOBBY

$89.99
SKU: DYNS0900

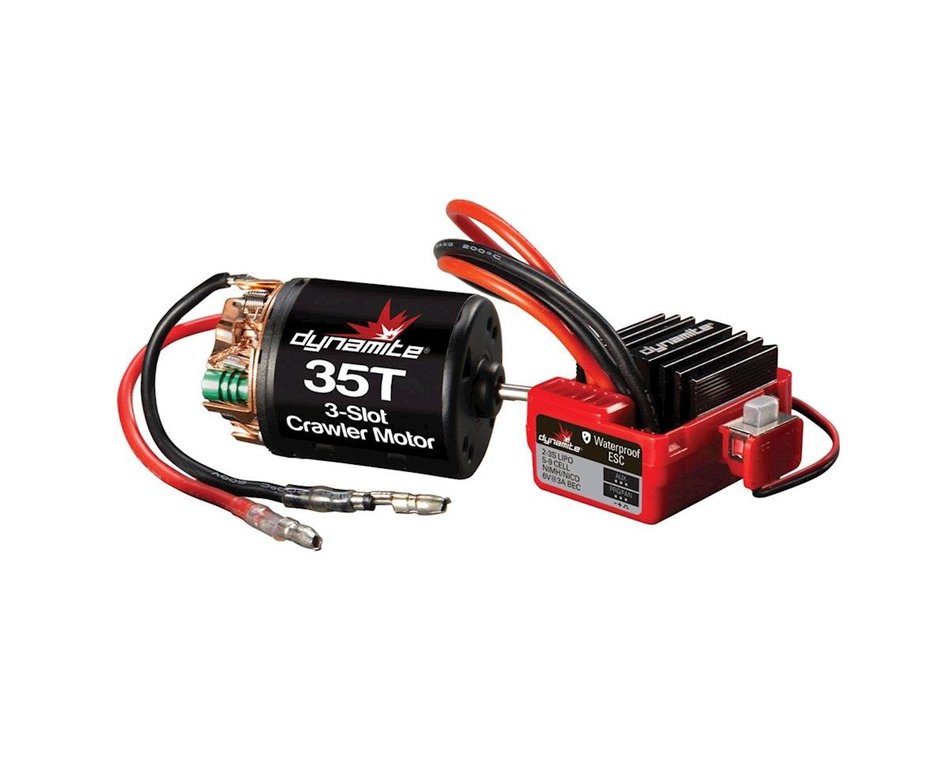

The Dynamite Brushed Crawler Motor & ESC Combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.



Specifications:

Length: ESC 1.8" (46.5mm)
Type: 1/10 scale crawler
BEC: Yes
BEC Voltage: 6V
Shaft Diameter: 1/8" (3.2mm)
Weight: ESC 2.4oz (68g) with wires
BEC Continous Current: 6V/3A
Size: Motor 2.1 x 1.4" (53 x 36mm)
Adjustable Timing: Yes
Cells: 2S - 3S LiPo, 6 - 9 cell NiMH
Bearings or Bushings: Rubber sealed ball bearings
Forward: Yes
Battery Connector: IC3
Motor Type: Brushed, Brushed 3-slot rotor, open endbell for 1:10 scale rock crawlers
Overall Length: 2.1" (53mm)
Height: ESC 1.1" (28.5mm)
Overall Diameter: 1.4" (36mm)
Reverse: Yes
Turns: 35T
Brakes: Electronic
Connector Type: 3.5mm Bullet, 3.5mm Tamiya style bullet, IC3
Motor Connector: 3.5mm Bullet
Width: ESC 1.3" (34mm)
BEC Type: Shared between receiver, auxillary light ioutput and cooling fan
Input Voltage: 7.2 - 11.1V
